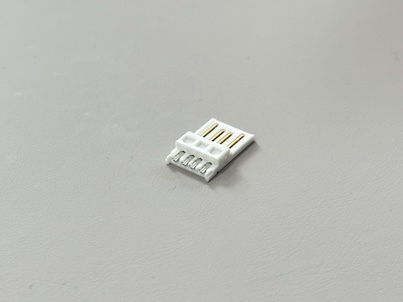

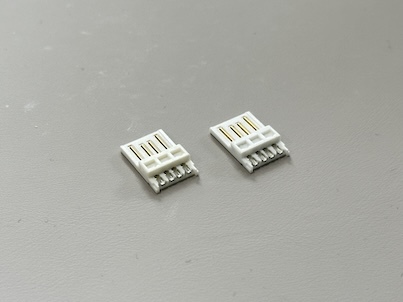

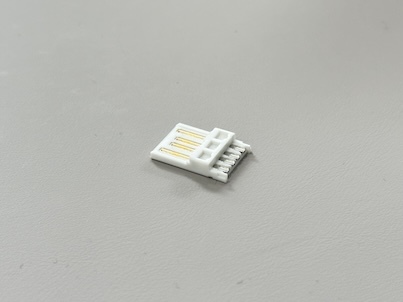

USB 2.0 AM Male Wire Solder Connector 5U Gold-Plated Terminal for Power & Data Transmission Cable Assembly

Specifications

Brand Name :

ShuangYi

Model Number :

USB-04M-A11S1A3-001H

Certification :

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin :

China

MOQ :

1000

Price :

$0.04-0.05 PCS FOB

Payment Terms :

T/T

Supply Ability :

500000 pcs per month

Delivery Time :

8-15 working days

Packaging Details :

Tape and Reel, 1500 per case, 10KG

Structure :

One-piece solder type

Housing Material :

PBT GF / High-temperature engineering plastic

Contact Resistance :

≤30 mΩ

Terminal Material :

Copper alloy

Solder/Crimp Area Plating :

Bright Tin ≥ 80 µ″

Insulation Resistance :

≥1000 MΩ @ 500V DC

Rated Current :

3A max (all pins), 250V AC

Withstanding Voltage :

500VAC/min

Environmental Compliance :

RoHS compliant

Application Wire OD :

Supports small-OD cable assembly (depending on version)

Description

Product Description

This USB 2.0 AM male solder connector is designed for high-reliability wire-to-cable assembly in data and power transmission applications. It features a durable one-piece structure with a 5U" gold-plated contact area that ensures stable conductivity, low signal loss and enhanced corrosion resistance. The housing is made from high-temperature PBT GF material, while the nickel-plated steel shell provides mechanical protection during long-term use. It is ideal for customized cable production and supports a wide range of wire gauges for flexible OEM/ODM projects.

USB 2.0 AM Male Wire Solder Connector 5U Gold-Plated Terminal for Power & Data Transmission Cable Assembly

Product Type	USB 2.0 AM Male Wire Solder Connector
Structure	One-piece solder type
Plating	5U" gold-plated contact area, nickel underlayer
Housing Material	PBT GF / High-temperature engineering plastic
Terminal Material	Copper alloy
Shell Material	Steel / nickel-plated
Current Rating	1.5A max @ 250VAC
Contact Resistance	≤30 mΩ
Insulation Resistance	≥1000 MΩ @ 500VDC
Withstanding Voltage	500VAC/min
Durability	1500 mating cycles
Wire Compatibility	Suitable for custom wire harnesses
Environmental	RoHS compliant
Application Wire OD	Supports small-OD cable assembly (depending on version)

Applications

Custom USB data cable assembly

Power supply extension cables

Consumer electronics and smart devices

Automotive diagnostic equipment

Industrial control and electronic modules

Server and computer peripherals

Charging accessories and adapters

Precautions

Name: USB 20 AM Male Wire Solder Connector 5U GoldPlated Terminal for Power Data Transmission Cable Assembly
Brand: ShuangYi
Price: 0.04 USD

Ensure correct wire soldering to avoid signal loss or overheating.

Avoid excessive pulling during assembly to maintain mechanical integrity.

Verify wire OD and conductor size before production.

Keep contact surfaces clean for optimal transmission performance.

Store in a dry environment to prevent oxidation.
