USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u, Wire Cable Electrical Signal Male Connector for PCB, Automotive, Server & Power Applications
Specifications
Brand Name :
ShuangYi
Model Number :
USB-04M-A11S1A3-000H
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.03-0.05 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Structure :
One-Piece Shell + Solder Cup Terminals
Housing Material :
PBT G/F, V0 Black
Contact Plating :
30 µ″ Gold on contact area
Terminal Base Material :
Brass C2680-H
Solder/Crimp Area Plating :
Bright Tin ≥ 80 µ″
Insulation Resistance :
≥1000 MΩ @ 500V DC
Rated Current :
3A max (all pins), 250V AC
Withstand Voltage :
500V AC / 1 minute
Environmental Compliance :
RoHS/REACH compliant
Application Type :
Wire-soldering type (custom length & gauge available)
Description

Product Description

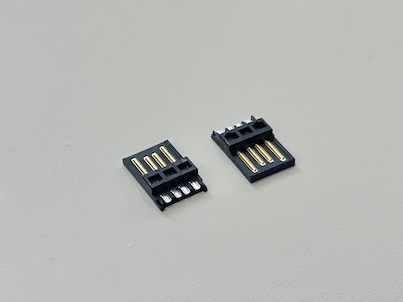

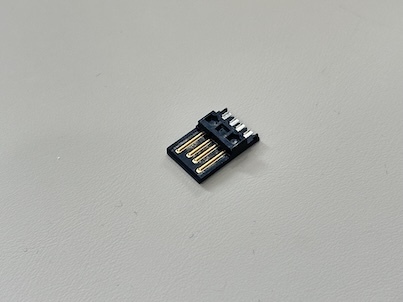

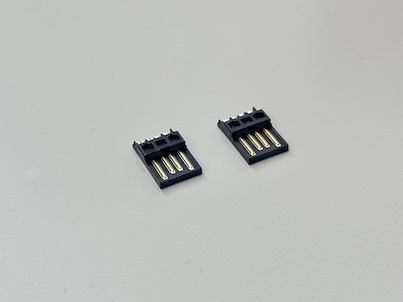

This USB 2.0 AM solder-type connector is designed for high-performance cable manufacturing and stable electrical transmission. The contact area features 5u" hard gold plating to ensure low resistance, strong corrosion resistance, and long-term durability. The housing is made of high-temperature, flame-retardant PBT for enhanced mechanical strength and reliability. With excellent conductivity, stable mating performance, and robust construction, this connector is ideal for high-frequency soldering and professional cable assembly lines.

USB 2.0 AM Solder-Type Connector, Black Gold-Plated 5uUSB 2.0 AM Solder-Type Connector, Black Gold-Plated 5uUSB 2.0 AM Solder-Type Connector, Black Gold-Plated 5u

Product Type USB 2.0 AM Integrated Connector (Wire Solder Type)
Structure One-Piece Shell + Solder Cup Terminals
Contact Plating 30 µ″ Gold on contact area
Terminal Base Material Brass C2680-H
Terminal Nickel Plating ≥ 50 µ″
Solder/Crimp Area Plating Bright Tin ≥ 80 µ″
Shell Material SPCC, Thickness 0.30 mm
Shell Plating Nickel ≥ 80 µ″
Housing Material PBT G/F, V0 Black
Rated Current 3A max (all pins), 250V AC
Contact Resistance ≤ 30 mΩ
Insulation Resistance ≥ 1000 MΩ @ 500V DC
Withstand Voltage 500V AC / 1 minute
Mating Force ≤ 35 N
Unmating Force ≥ 10 N
Durability 1500 cycles
Applicable Cable Wire-soldering type (custom length & gauge available)
Environmental RoHS/REACH compliant

Applications

Data transmission cables for computers, printers, and consumer electronics

Automotive diagnostic devices and charging interfaces

Industrial control systems and instrumentation

Server and storage equipment

Power supply cables and USB extension assemblies

Customized wire harnesses requiring stable signal and power delivery

Precautions

Avoid excessive soldering heat to prevent deformation of the insulation material

Ensure proper strain relief during cable assembly for long-term reliability

Keep the contact surfaces clean to maintain optimal conductivity

Confirm wire gauge compatibility before installation

Not recommended for environments with prolonged exposure to moisture without additional sealing
