High-Performance USB 2.0 AM Solder-Type Connector | White Gold-Flash Terminal | Eco-Enhanced Housing | Precision Cable Connector

Specifications

Brand Name :

ShuangYi

Model Number :

USB-04M-A17S1A2-001H

Certification :

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin :

China

MOQ :

1000

Price :

$0.03-0.05 PCS FOB

Payment Terms :

T/T

Supply Ability :

500000 pcs per month

Delivery Time :

8-15 working days

Packaging Details :

Tape and Reel, 1500 per case, 10KG

Terminal Plating :

Gold Flash (G/F), ≥5U″ (per drawing)

Housing Type :

Eco-enhanced, no gate marks

Rated Current :

1.5A Max

Rated Voltage :

250V AC

Contact Resistance :

≤30mΩ

Insulation Resistance :

≥500MΩ @ 500V DC

Withstanding Voltage :

500V AC / 1 minute

Mating Force :

35N Max

Un-mating Force :

10N Min

Durability :

1500 mating cycles

Salt Spray Test :

24 hours Min

Operating Temperature :

-20°C ~ +85°C

Application :

Wire soldering / cable assembly

Compliance :

RoHS / Eco-enhanced molding

Description

Product Description

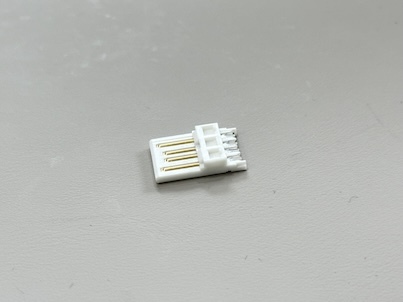

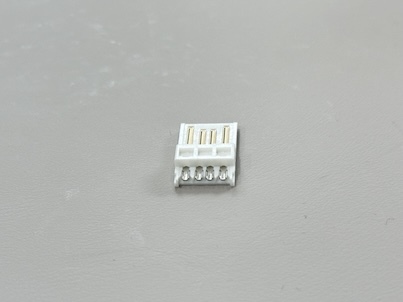

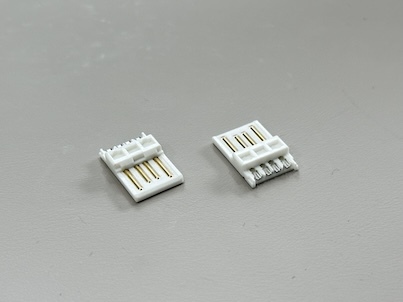

This USB 2.0 AM solder-type connector features a white eco-enhanced housing with gold-flash plated terminals for stable electrical performance and excellent corrosion resistance. Designed for high-quality cable assembly, it offers consistent solderability, reliable mechanical retention and long-term durability over 1500 mating cycles. The housing is molded without gate marks to ensure a clean, professional appearance suitable for premium consumer and industrial applications.

High-Performance USB 2.0 AM Solder-Type Connector | White Gold-Flash Terminal | Eco-Enhanced Housing | Precision Cable Connector

Product Type	USB 2.0 AM Solder-Type Connector
Connector Gender	Male
Terminal Plating	Gold Flash (G/F), ≥5U″ (per drawing)
Housing Color	White
Housing Type	Eco-enhanced, no gate marks
Rated Current	1.5A Max
Rated Voltage	250V AC
Contact Resistance	≤30mΩ
Insulation Resistance	≥500MΩ @ 500V DC
Withstanding Voltage	500V AC / 1 minute
Mating Force	35N Max
Un-mating Force	10N Min
Durability	1500 mating cycles
Salt Spray Test	24 hours Min
Operating Temperature	-20°C ~ +85°C
Application	Wire soldering / cable assembly
Compliance	RoHS / Eco-enhanced molding

Applications

Consumer electronics cable manufacturing

Data transmission cables

Power supply extension cables

Automotive diagnostic cables

Industrial control wiring

Custom cable assemblies requiring stable solder joints

Precautions

Name: HighPerformance USB 20 AM SolderType Connector White GoldFlash Terminal EcoEnhanced Housing Precision Cable Connector
Brand: ShuangYi
Price: 0.03 USD

Ensure proper solder temperature to avoid terminal damage.

Avoid excessive mechanical stress on the solder cups during assembly.

Recommended for use with compliant RoHS cable materials.

Maintain clean contact surfaces to achieve optimal signal transmission.

High-Performance USB 2.0 AM Solder-Type Connector | White Gold-Flash Terminal | Eco-Enhanced Housing | Precision Cable Connector
