15KW 380V Vacuum Granulating Machine 5kg Gold Silver Copper Granulator Machine
15KW 380V Vacuum Granulating Machine 5kg Gold Silver Copper Granulator Machine
15KW 380V Vacuum Granulating Machine 5kg Gold Silver Copper Granulator Machine
15KW 380V Vacuum Granulating Machine 5kg Gold Silver Copper Granulator Machine
Specifications
Certification :
ISO, CE and SGS
Melting temperature :
maximum up to 1500℃
Model Number :
SSM-GVR5
Single Batch Granulation Time :
3 - 5 Minutes
MOQ :
1unit
Delivery Time :
10-15 working days
Rated Voltage :
380V, 3 Phases, 50/60Hz
Capacity :
5kg (Gold),Multiple optional capacities: 3kg,4kg,5kg,6kg,8kg,10kg,20kg,50kg,100kg; customized capacity is available
Payment Terms :
T/T,L/C
Finished Granule Size :
1.8mm - 4mm
Price :
negotiable
Rated Power :
15KW
Supply Ability :
200,00units per month
Temperature Control Accuracy :
±1℃
Brand Name :
SanSong , support OEM & ODM and logo printing
Product name :
Vacuum Granulating Machine
Packaging Details :
Outer packing: Wooden case
Other service :
Customizable, OEM & ODM available, one-stop solutions provided
Place of Origin :
Shenzhen, China
Applicable Materials :
Gold, Silver, Copper and various precious metal alloys
Description

15KW Acuum Granulating Machine 5kg Gold Silver Copper Precious Metal Granulator Support OEM Customization

1. Product Overview

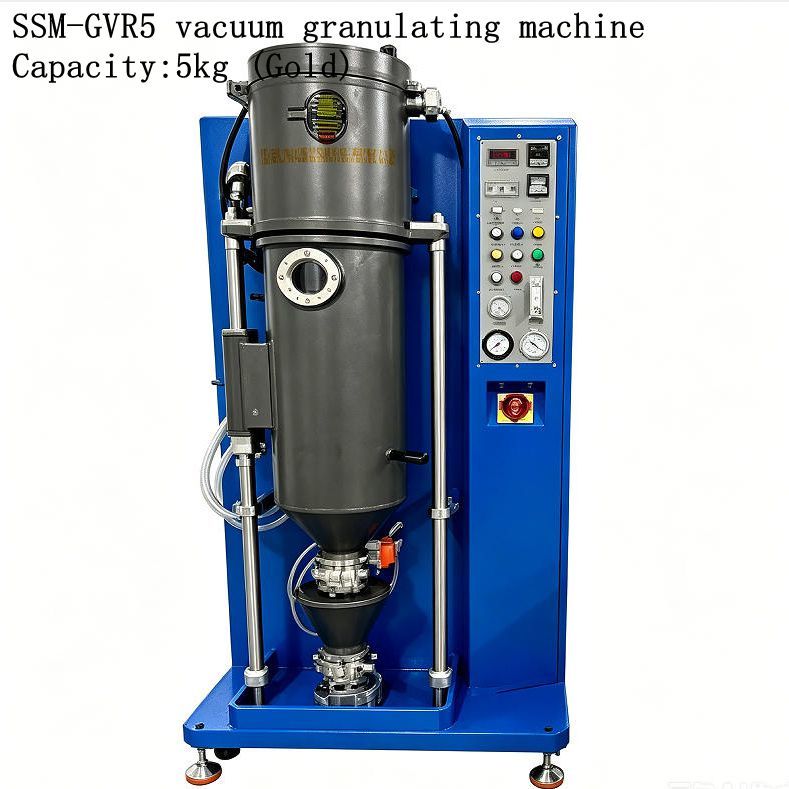

The SSM-GVR5 is a medium-capacity vacuum granulating machine from SanSong Melt’s granulation system series, built with German granulation technology and imported core components. With a standard 5kg gold processing capacity and 15KW high-efficiency induction heating, it completes one full melting & granulation cycle in 3–5 minutes under vacuum inert gas protection.
This model produces smooth, oxide-free spherical granules in 1.8–4mm size with ±1℃ precise temperature control, and comes with a built-in vacuum pump as standard. It is widely used in jewelry manufacturing, precious metal refining, electroplating and material processing industries. Our full series covers 3kg, 4kg, 5kg, 6kg, 8kg, 10kg, 20kg, 50kg and 100kg capacities, with custom specifications and OEM service available.

15KW 380V Vacuum Granulating Machine 5kg Gold Silver Copper Granulator Machine

2. Working Principle

  1. Load raw materials into the sealed melting chamber, evacuate air and fill with inert gas to isolate oxygen and prevent oxidation.
  2. High-frequency induction heating melts the metal evenly at up to 1500℃, with temperature accuracy controlled at ±1℃ to ensure uniform alloy composition.
  3. Molten metal passes through precision drip nozzles at the bottom, forms uniform droplets by gravity and falls into the circulating cooling water tank.
  4. Droplets solidify into high-sphericity metal granules rapidly. The fully enclosed system generates no dust, and cooling water is recycled for near-zero wastewater discharge.
  5. Collect finished granules directly from the discharge valve for downstream production.

3. Core Features

  • Fast & Efficient Melting: 15KW high-power induction heating, completes one batch in 3–5 minutes, suitable for continuous batch production.
  • High-Precision Temperature Control: Max. 1500℃ working temperature with ±1℃ accuracy, stable melting for gold, silver, copper and alloys.
  • Premium Granule Quality: 1.8–4mm uniform granule size, over 95% sphericity, smooth oxide-free surface, no secondary treatment needed.
  • Vacuum Protection & Low Loss: Built-in vacuum pump as standard, minimizes metal volatilization loss and maximizes raw material yield.
  • Easy Automatic Operation: User-friendly control panel, plug-and-play, workers can master operation after simple training.
  • Flexible Customization: Multiple standard capacities optional; supports nozzle customization, OEM branding and logo printing.

  • 15KW 380V Vacuum Granulating Machine 5kg Gold Silver Copper Granulator Machine

4. Technical Parameters

Item Specification
Model No. SSM-GVR5
Rated Voltage 380V, 50/60Hz, 3 Phase
Rated Power 15KW
Chamber Capacity 5kg (Gold)
Full series: 3kg / 4kg / 5kg / 6kg / 8kg / 10kg / 20kg / 50kg / 100kg, custom capacity available
Max. Working Temperature 1500℃
Temperature Accuracy ±1℃
Applicable Materials Gold, Silver, Copper and precious metal alloys
Granule Size 1.8mm – 4mm
Melting Time Per Batch 3 – 5 Minutes
Overall Dimension 680mm*880mm*1490mm
Net Weight Approx. 120kg
Standard Configuration Built-in vacuum pump, imported core parts, German technology
Note: The above parameters are for reference only. Customized specifications are available. Please contact our sales team for detailed technical solutions.

5. Application Fields

  • Jewelry manufacturing: alloy batching, scrap recycling, investment casting raw material preparation
  • Precious metal refining & recycling: improves electrolytic / wet refining efficiency, supports standardized delivery
  • Electroplating industry: high-purity spherical anode granules for stable plating quality
  • Electronic solder: low-oxygen gold / silver / copper solder granules for precision components
  • Laboratory R&D: small-batch sample preparation for special alloys and new materials

6. FAQ

Q1: What metals can this machine process?
A: Gold, silver, copper and various precious metal alloys.
Q2: Does the price include a vacuum pump?
A: Yes, a matched vacuum pump is included in the standard configuration.
Q3: Can we adjust the granule size?
A: Standard size is 1.8–4mm. Custom nozzles for different sizes are available upon request.
Q4: Do you offer other capacity models?
A: Yes, we have 9 standard capacities from 3kg to 100kg to match different production scales.
Q5: Do you support OEM or custom logo?
A: Yes, OEM branding, logo printing and parameter customization are all supported.

Why Choose Sansongmelt?

15KW 380V Vacuum Granulating Machine 5kg Gold Silver Copper Granulator Machine

15KW 380V Vacuum Granulating Machine 5kg Gold Silver Copper Granulator Machine

SanSong Melt is a specialized manufacturer of high-performance precious metal processing equipment, trusted by large refineries, industrial foundries, and bullion producers worldwide for reliable, production-ready solutions.
  • Professional Precious Metal Equipment Manufacturer
    SanSong Melt focuses on the R&D, production and sales of precious metal melting, casting and granulating equipment for many years. Our product lines cover vacuum ingot casting machines, continuous casting equipment and vacuum granulating systems, serving thousands of jewelry factories, refineries and metal processing enterprises around the world. All products are manufactured in strict accordance with international industrial standards with CE certification.
  • Full Set of Turnkey Customized Solutions
    We are not only an equipment supplier, but also provide one-stop technical services including production process planning, mold customization, equipment layout design, on-site installation guidance and professional operator training, to help customers quickly build stable and efficient precious metal production lines.
  • Strict Quality Control & Reliable After-Sales System
    Every piece of equipment will pass multiple rounds of factory debugging and aging tests before delivery. We provide 2-year official warranty and 24/7 global online technical support to quickly respond to equipment faults, minimize your production downtime and guarantee stable continuous operation of your production line.
  • Factory Direct Supply with Transparent Cost Performance
    We adopt factory direct sales mode without intermediate distributors, providing customers with competitive factory prices. We can arrange factory inspection, video equipment demonstration and sample test production for customers to verify equipment performance before order confirmation.
  • Flexible Customization & OEM Brand Service
    We support personalized modification of equipment parameters, structural optimization, as well as OEM private brand and customized logo service, helping global dealers and factory customers build their own brand competitiveness in the precious metal processing industry.

Contact Us

We offer a full range of vacuum granulating machines with multiple standard chamber capacities of 3kg, 4kg, 5kg, 6kg, 8kg, 10kg, 20kg, 50kg and 100kg, you can select the most suitable model according to your single-batch feeding volume and daily production demand. Besides standard models, customized parameter adjustment, OEM brand authorization and machine logo customization are all available to meet your unique production and brand layout requirements.
If you want to obtain detailed technical data, equipment quotation, production case references or personalized process solutions, please feel free to contact our professional sales and technical team at any time.
