Specifications
Brand Name :
RUYA
Model Number :
3DT565-B
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
30Kg
Maximum size of test piece :
400mm×400mm×400mm
Rotary Accuracy Of Three-Axis :
±3″
Perpendicularity Of Three-Axis :
±3″
Positioning Error :
±5″
Positioning Repeatability :
±2″
Intersection Of Three-Axis :
Ф0.5mm diameter ball
User Slip Ring :
Customizable
Description

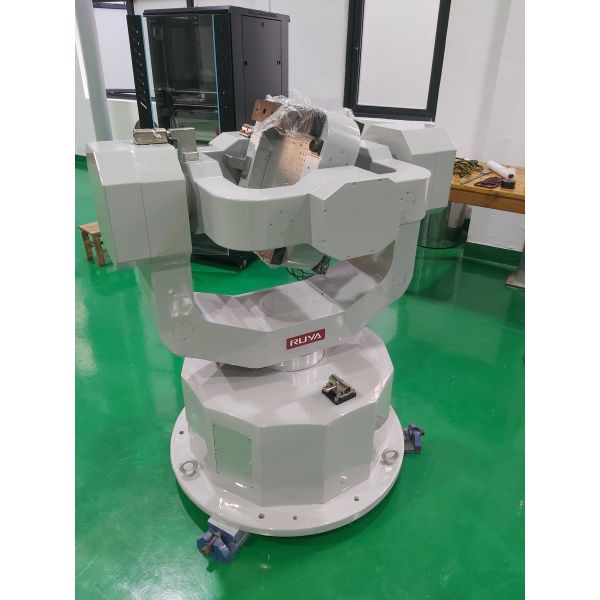

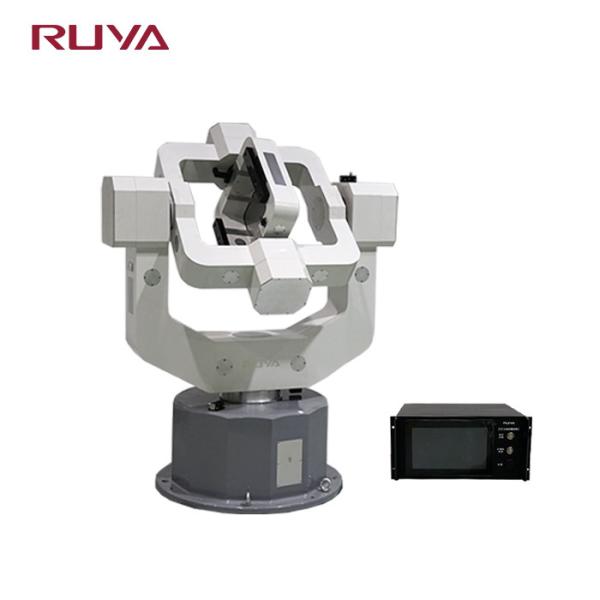

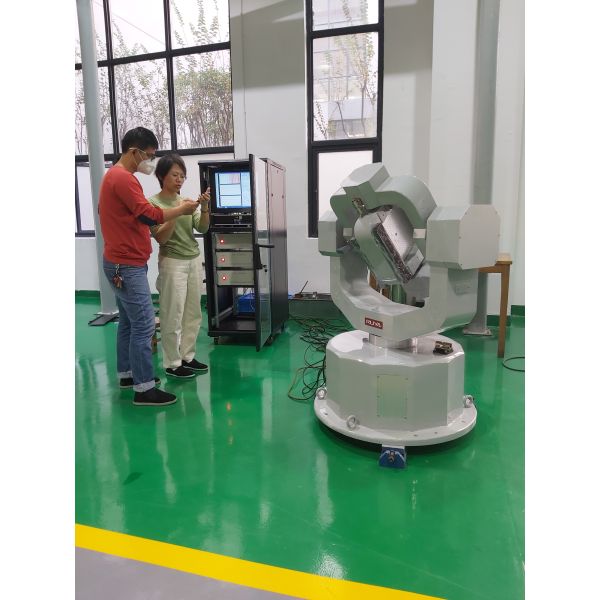

3DT565-B Three Axis Electric Inertial Navigation Test Turntable
Product Overview

The 3DT565-B Three-axis Electric Turntable is a precision device capable of rotation on three independent axes (pitch, roll, and yaw). This advanced equipment finds extensive applications in aerospace, scientific research, and industrial automation fields where precise motion simulation and testing are required.

Technical Specifications
Specification Details
Load Weight 30Kg
Maximum Size of Test Piece 400mm * 400mm * 400mm
Rotary Accuracy of Three-Axis ±3″
Perpendicularity of Three-Axis ±3″
Intersection of Three-Axis Ф0.5mm diameter ball
Positioning Error of Angular Position ±5″
Positioning Repeatability of Angular Position ±2″
Rate Range Inner frame: 0.01°/s ~ 200°/s
Middle frame: 0.01°/s ~ 200°/s
Outer frame: 0.01°/s ~ 200°/s
Rate Accuracy ω ≤ 1°/s: 2*10⁻³ (1° average)
1°/s ≤ ω < 10°/s: 2*10⁻⁴ (10° average)
ω ≥ 10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration Inner frame: ≥100°/s²
Middle frame: ≥100°/s²
Outer frame: ≥50°/s²
User Slip Ring Customizable
Product Images
3DT565-B Three Axis Electric Turntable with 30Kg Load Weight Customizable Slip Ring for Inertial Navigation Testing 3DT565-B Three Axis Electric Turntable with 30Kg Load Weight Customizable Slip Ring for Inertial Navigation Testing
