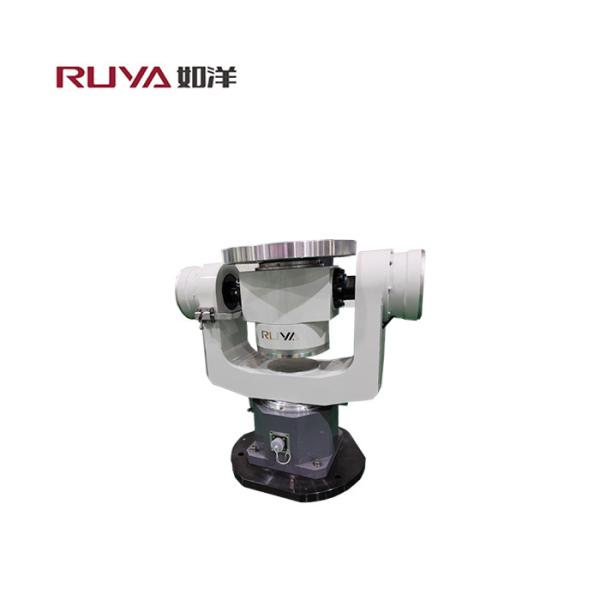

3DT320-A Small Tabletop Three-Axis Electric Inertial Navigation Test Turntable with 15Kg Load Weight 320mm Table Diameter
3DT320-A Small Tabletop Three-Axis Electric Inertial Navigation Test Turntable with 15Kg Load Weight 320mm Table Diameter
3DT320-A Small Tabletop Three-Axis Electric Inertial Navigation Test Turntable with 15Kg Load Weight 320mm Table Diameter
3DT320-A Small Tabletop Three-Axis Electric Inertial Navigation Test Turntable with 15Kg Load Weight 320mm Table Diameter
3DT320-A Small Tabletop Three-Axis Electric Inertial Navigation Test Turntable with 15Kg Load Weight 320mm Table Diameter
3DT320-A Small Tabletop Three-Axis Electric Inertial Navigation Test Turntable with 15Kg Load Weight 320mm Table Diameter
3DT320-A Small Tabletop Three-Axis Electric Inertial Navigation Test Turntable with 15Kg Load Weight 320mm Table Diameter
3DT320-A Small Tabletop Three-Axis Electric Inertial Navigation Test Turntable with 15Kg Load Weight 320mm Table Diameter
3DT320-A Small Tabletop Three-Axis Electric Inertial Navigation Test Turntable with 15Kg Load Weight 320mm Table Diameter
3DT320-A Small Tabletop Three-Axis Electric Inertial Navigation Test Turntable with 15Kg Load Weight 320mm Table Diameter
Specifications
Brand Name :
RUYA
Model Number :
3DT320-A
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
15Kg
Table Diameter :
Ф320mm
Table Flatness :
0.02mm
Table Runout :
0.02mm
Positioning Error( outer frame) :
±5″
Positioning Error( inner frame) :
±6″
Intersection Of Three-Axis :
Ф0.5mm diameter ball
Slip Ring :
Customizable
Description
3DT320-A Small Tabletop Three Axis Electric Inertial Navigation Test Turntable
Product Overview

The 3DT320-A Small Tabletop Three-axis Electric Turntable is a high-precision, multi-functional three-axis testing equipment designed for simulation tests of attitude motion. This versatile system is ideal for testing and calibration of inertial combinations and devices, featuring both position and rate functions.

Technical Specifications
Specification Details
Load Weight 15Kg
Table Diameter Ф320mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Three-Axis ±5″
Perpendicularity Of Three-Axis ±6″
Intersection Of Three-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position ±5″
Positioning Repeatability Of Angular Position ±5″
Rate Range Inner frame: 0.01°/s~300°/s
Middle frame: 0.01°/s~200°/s
Outer frame: 0.01°/s~200°/s
Rate Accuracy ω≤1°/s: 2*10⁻³ (1° average)
1°/s≤ω<10°/s: 2*10⁻⁴ (10° average)
ω≥10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration Inner frame: ≥100°/s²
Middle frame: ≥50°/s²
Outer frame: ≥50°/s²
User Slip Ring Customizable
Product Images
3DT320-A Small Tabletop Three-Axis Electric Inertial Navigation Test Turntable with 15Kg Load Weight 320mm Table Diameter 3DT320-A Small Tabletop Three-Axis Electric Inertial Navigation Test Turntable with 15Kg Load Weight 320mm Table Diameter
