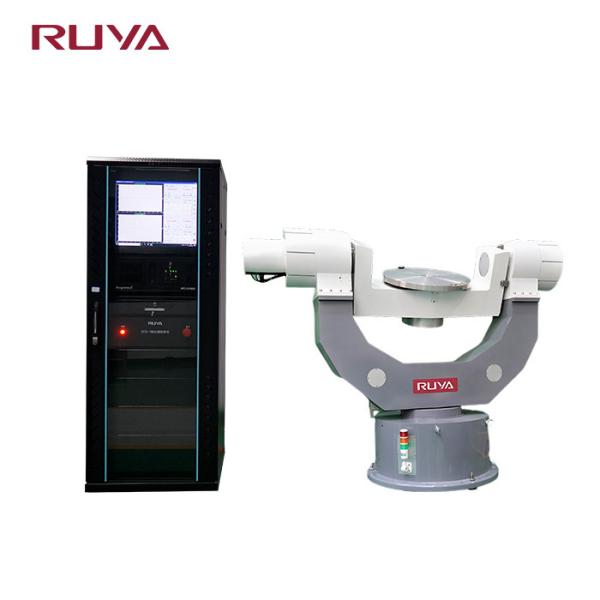

3DT650-A Three Axis Navigation Anti Interference Test Turntable with 20Kg Load Weight and 600mm Table Diameter
3DT650-A Three Axis Navigation Anti Interference Test Turntable with 20Kg Load Weight and 600mm Table Diameter
3DT650-A Three Axis Navigation Anti Interference Test Turntable with 20Kg Load Weight and 600mm Table Diameter
3DT650-A Three Axis Navigation Anti Interference Test Turntable with 20Kg Load Weight and 600mm Table Diameter
3DT650-A Three Axis Navigation Anti Interference Test Turntable with 20Kg Load Weight and 600mm Table Diameter
3DT650-A Three Axis Navigation Anti Interference Test Turntable with 20Kg Load Weight and 600mm Table Diameter
3DT650-A Three Axis Navigation Anti Interference Test Turntable with 20Kg Load Weight and 600mm Table Diameter
3DT650-A Three Axis Navigation Anti Interference Test Turntable with 20Kg Load Weight and 600mm Table Diameter
Specifications
Brand Name :
RUYA
Model Number :
3DT650-A
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
20Kg
Table Diameter :
Ф600mm
Rotary Accuracy :
±3″
Perpendicularity :
±3″
Positioning Error Of Angular Position :
±0.1°
User Slip Ring :
Customizable
Maximum Workpiece Size :
Ф600×450
View Angle :
≤15°
Description
3DT650-A Three Axis Navigation Anti Interference Test Turntable
Product Overview

The 3DT650-A Three-axis Navigation Anti-interference Test Turntable is a precision device capable of rotation on three independent axes (pitch, roll, and yaw). This advanced equipment finds extensive applications in aerospace, scientific research, and industrial automation fields where precise multi-axis motion control is required.

Technical Specifications
Specification Value
Load Weight 20Kg
Table Diameter Ф600mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Three-Axis ±3″
Perpendicularity Of Three-Axis ±3″
Intersection Of Three-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position ±0.1°
Rate Range Inner frame: ≤3600°/s
Middle frame: ≤20°/s
Outer frame: ≤20°/s
Rotation Range Inner frame: continuous rotation
Middle frame: -90°~+90°
Outer frame: continuous rotation
Maximum Angular Acceleration Inner frame: ≥60°/s²
Middle frame: ≥20°/s²
Outer frame: ≥20°/s²
User Slip Ring Customizable
Maximum Workpiece Size Ф600*450
View Angle ≤15°
Product Images
3DT650-A Three Axis Navigation Anti Interference Test Turntable with 20Kg Load Weight and 600mm Table Diameter 3DT650-A Three Axis Navigation Anti Interference Test Turntable with 20Kg Load Weight and 600mm Table Diameter
