Specifications
Brand Name :
RUYA
Model Number :
3DT400-A
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Table Diameter :
Ф450mm
Table Flatness :
0.02mm
Table Runout :
0.02mm
Positioning Error Of Angular Position :
±2″
Positioning Repeatability :
±2″
Rate Range(inner) :
0.01°/s~300°/s
Rate Range(middle) :
0.01°/s~200°/s
Rate Range(outer) :
0.01°/s~200°/s
Description
3DT400-A Three Axis Electric Turntable With Payload 30kg

The 3DT400-A three-axis electric turntable is a high-precision, multi-degree-of-freedom testing equipment designed for demanding industrial and research applications.

Product Description

This three-axis electric turntable features comprehensive three-axis linkage capabilities across azimuth (X), pitch (Y), and roll (Z) axes, enabling precise simulation of complex attitude movements. The system incorporates a high-performance servo drive system and supports multiple control modes including position and rate control.

Ideal for dynamic performance testing and calibration of inertial navigation systems, aviation guidance equipment, and optoelectronic stabilization platforms. The modular design ensures compatibility with various sensors and loads, while the high-rigidity structure guarantees low vibration and high repeatability positioning accuracy, meeting the stringent testing requirements of scientific research institutions.

Product Parameters
Specification Value
Load Weight 30Kg
Table Diameter Ф450mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Three-Axis ±3″
Perpendicularity Of Three-Axis ±3″
Intersection Of Three-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position ±2″
Positioning Repeatability Of Angular Position ±2″
Rate Range Inner frame: 0.01°/s~300°/s
Middle frame: 0.01°/s~200°/s
Outer frame: 0.01°/s~200°/s
Rate Accuracy ω≤1°/s: 2*10⁻³ (1° average)
1°/s≤ω<10°/s: 2*10⁻⁴ (10° average)
ω≥10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration Inner frame: ≥200°/s²
Middle frame: ≥100°/s²
Outer frame: ≥100°/s²
User Slip Ring Customizable
Product Images

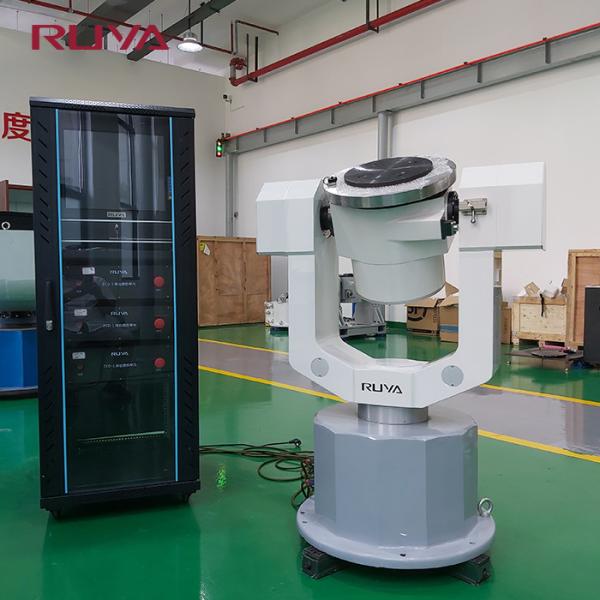

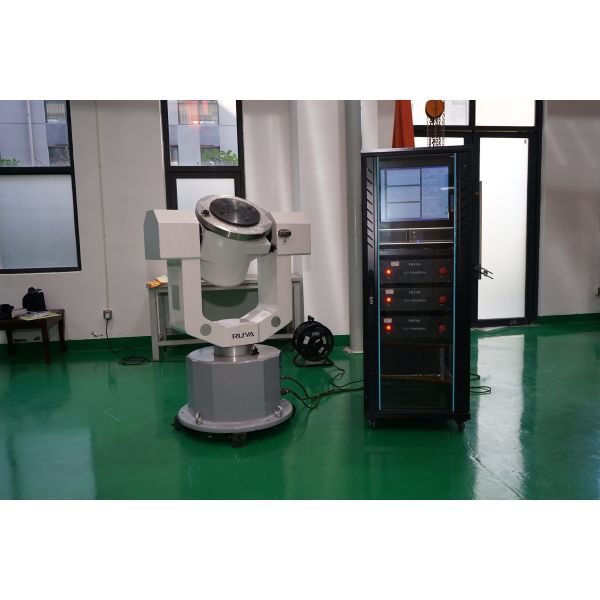

3DT400-A High Precision Three Axis Electric Turntable with 30kg Payload for Inertial Navigation Testing 3DT400-A High Precision Three Axis Electric Turntable with 30kg Payload for Inertial Navigation Testing
