3DT420 Three-Axis Turntable with max 65Kg Load Capacity for Calibration Testing
3DT420 Three-Axis Turntable with max 65Kg Load Capacity for Calibration Testing
Specifications
Brand Name :
RUYA
Model Number :
3DT420
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
≤65Kg
Positioning Error（inner） :
no dynamic index requirements
Positioning Error（middle） :
±4″
Positioning Error（outer） :
±4″
Rotation Range（inner） :
±10°
Rotation Range（middle） :
-10°~+150°
Rotation Range（outer） :
±150°
Maximum Size Of Photoelectric Tower :
Ф420×680
Description
3DT420 Three Axis Turret Test Calibration Turntable
Product Overview

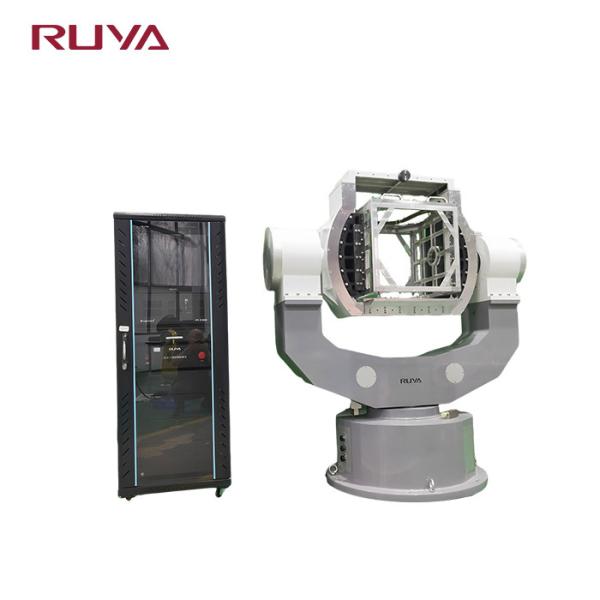

The 3DT420 Three-axis Turret Test Calibration Turntable is designed for offline calibration testing of two-axis photoelectric turret equipment. This precision system provides comprehensive three-axis motion capabilities to meet rigorous testing requirements.

While the target turret operates with only two degrees of freedom (azimuth and pitch), this three-axis test turntable includes roll axis functionality to ensure complete testing coverage. The rotation range and position accuracy exceed the motion range and stability requirements of the turret being calibrated.

Technical Specifications
Parameter Value
Load Weight ≤65Kg
Rotary Accuracy Of Three-Axis ±3″
Perpendicularity Of Three-Axis ±3″
Intersection Of Three-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position Inner frame: No dynamic index requirements
Middle frame: ±4″
Outer frame: ±4″
Rate Range Inner frame: Manual
Middle frame: ≥20°/s
Outer frame: ≥20°/s
Rotation Range Inner frame: ±10°
Middle frame: -10°~+150°
Outer frame: ±150°
Maximum Angular Acceleration Inner frame: Manual
Middle frame: ≥20°/s²
Outer frame: ≥20°/s²
User Slip Ring Customizable
Maximum Size Of Photoelectric Tower Ф420×680
