3DT500-AH 3 Axis Turntable with 50Kg Load Weight 0.02mm Table Flatness Electric Lifting Turntable
3DT500-AH 3 Axis Turntable with 50Kg Load Weight 0.02mm Table Flatness Electric Lifting Turntable
3DT500-AH 3 Axis Turntable with 50Kg Load Weight 0.02mm Table Flatness Electric Lifting Turntable
3DT500-AH 3 Axis Turntable with 50Kg Load Weight 0.02mm Table Flatness Electric Lifting Turntable
3DT500-AH 3 Axis Turntable with 50Kg Load Weight 0.02mm Table Flatness Electric Lifting Turntable
3DT500-AH 3 Axis Turntable with 50Kg Load Weight 0.02mm Table Flatness Electric Lifting Turntable
3DT500-AH 3 Axis Turntable with 50Kg Load Weight 0.02mm Table Flatness Electric Lifting Turntable
3DT500-AH 3 Axis Turntable with 50Kg Load Weight 0.02mm Table Flatness Electric Lifting Turntable
Specifications
Brand Name :
RUYA
Model Number :
3DT500-AH
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
50Kg
Table Diameter :
Ф500mm
Table Flatness :
0.02mm
Table Runout :
0.02mm
Rotary Accuracy Of Three-Axis :
±3″
Perpendicularity Of Three-Axis :
±3″
Positioning Error Of Angular Position :
±5″
Lifting Range :
0~200mm
Description
3DT500-AH 3 Axis Turntable Electric Lifting Turntable
Product Overview

The 3DT500-AH Three-axis Electric Lifting Turntable is a high-precision equipment that integrates rotation and lifting functions. It supports three-axis independent motion of pitch, roll and yaw. Combined with the electric lifting module, it can realize multi-dimensional flexible adjustment. It is widely used in aerospace component testing, target simulation, scientific research experiments, industrial automation and other fields to meet the positioning and motion control needs in complex scenarios. Its high stability, precise response and modular design provide users with efficient and reliable solutions to facilitate precision testing and automated production.

Technical Specifications
Specification Value
Load Weight 50Kg
Table Diameter Ф500mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Three-Axis ±3″
Perpendicularity Of Three-Axis ±3″
Intersection Of Three-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position ±5″
Positioning Repeatability Of Angular Position ±2″
Rate Range Inner frame: 0.01°/s~100°/s
Middle frame: 0.01°/s~100°/s
Outer frame: 0.01°/s~50°/s
Rate Accuracy ω≤1°/s: 2*10⁻³ (1° average)
1°/s≤ω<10°/s: 2*10⁻⁴ (10° average)
ω≥10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration Inner frame: ≥150°/s²
Middle frame: ≥100°/s²
Outer frame: ≥50°/s²
Lifting Range 0~200mm
User Slip Ring Customizable
Product Images

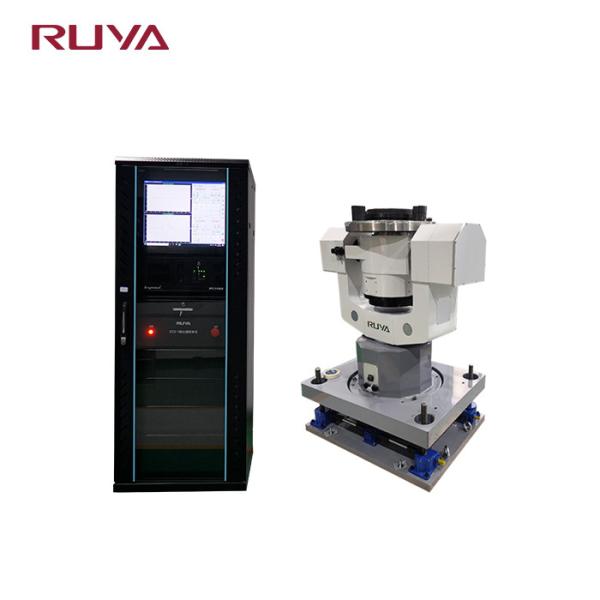

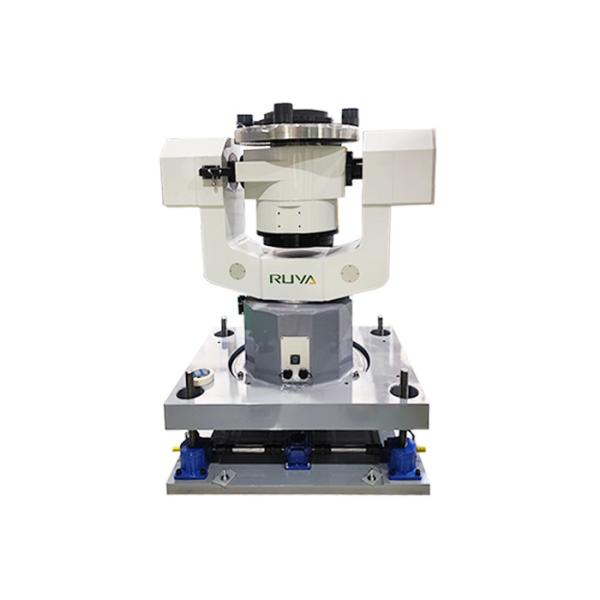

3DT500-AH 3 Axis Turntable with 50Kg Load Weight 0.02mm Table Flatness Electric Lifting Turntable 3DT500-AH 3 Axis Turntable with 50Kg Load Weight 0.02mm Table Flatness Electric Lifting Turntable
