The NTS series is a small-size, low-cost single-axis tilt sensor launched by Ruicom. Its output voltage, after internal double linearity correction, exhibits excellent linearity, primarily targeting applications with high requirements for installation space and cost. This product integrates a novel tilt-sensing unit based on microelectromechanical systems (MEMS), featuring compact size and low power consumption. MEMS technology also ensures good consistency and stability. The operating temperature range covers industrial-grade -40℃ to +85℃, making it a cost-effective tilt module.

This product uses a non-contact measurement principle, providing real-time output of the current tilt angle. It is easy to use, eliminating the need to locate two relatively changing surfaces for installation. Its compact size and strong resistance to external electromagnetic interference and shock vibration make it suitable for industrial equipment, platform attitude measurement, and other applications. It is suitable for both static and slowly changing dynamic angle measurements, exhibiting outstanding electromagnetic interference resistance and capable of long-term stable operation in harsh industrial environments.

Technical Characteristics

❖ Output: 0-5V

❖ Measuring range: ±10°to ±90° selectable

❖ Accuracy: 0.1°

❖ Resolution: 0.02°

❖ High vibration resistance: >3500g

Application Field

❖ Angle control for various engineering machinery ❖ Four-wheel alignment and control for automobiles

❖ Chassis measurement for automobiles ❖ Leveling of medical beds

❖ Monitoring of gimbal operation ❖ Satellite antenna positioning

Performance Parameters

Electrical Parameters

Interface Definition

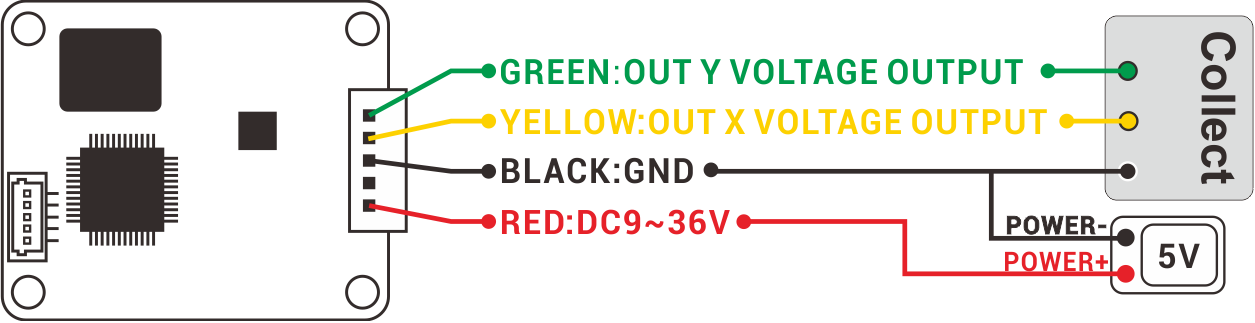

PCB board wiring definition

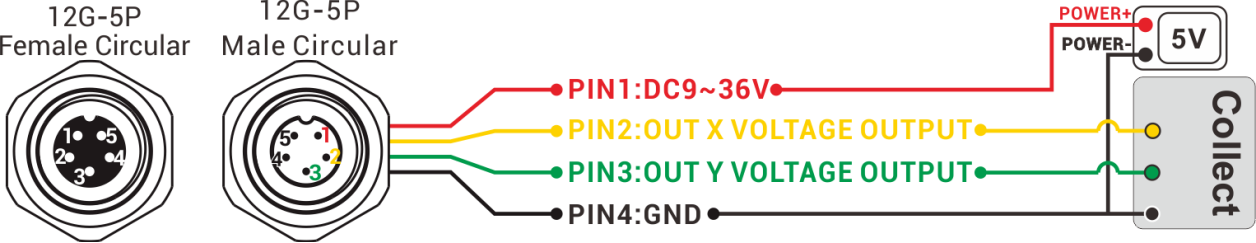

Enclosure Wiring Definition

Product Dimensions

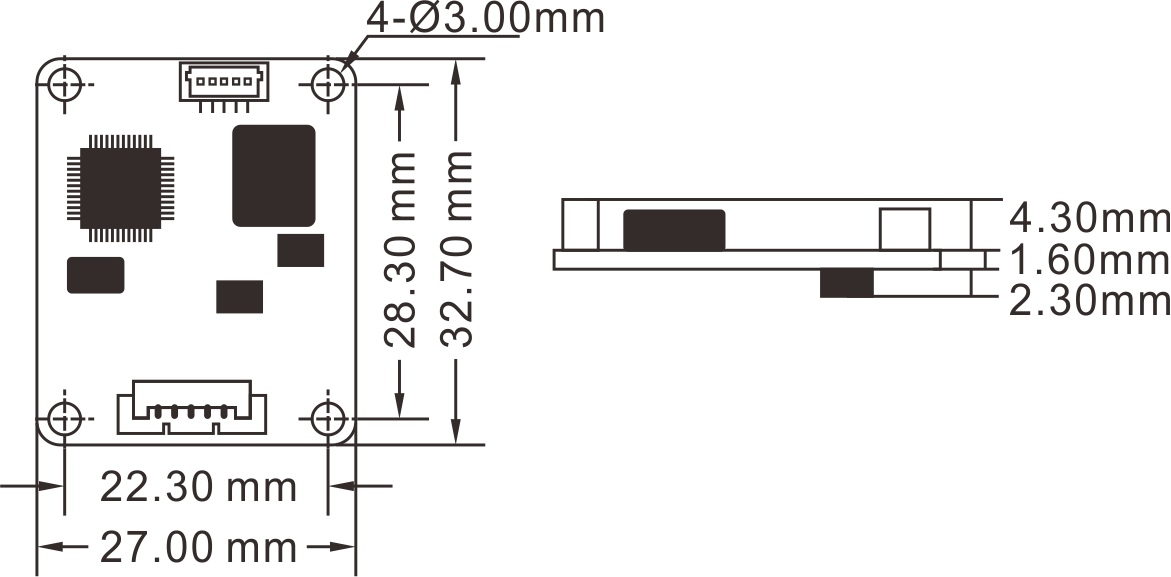

PCBA Board Dimensions

PCBA board dimensions: L33×W27×H8.2mm

Recommended screws: 4 M3 screws

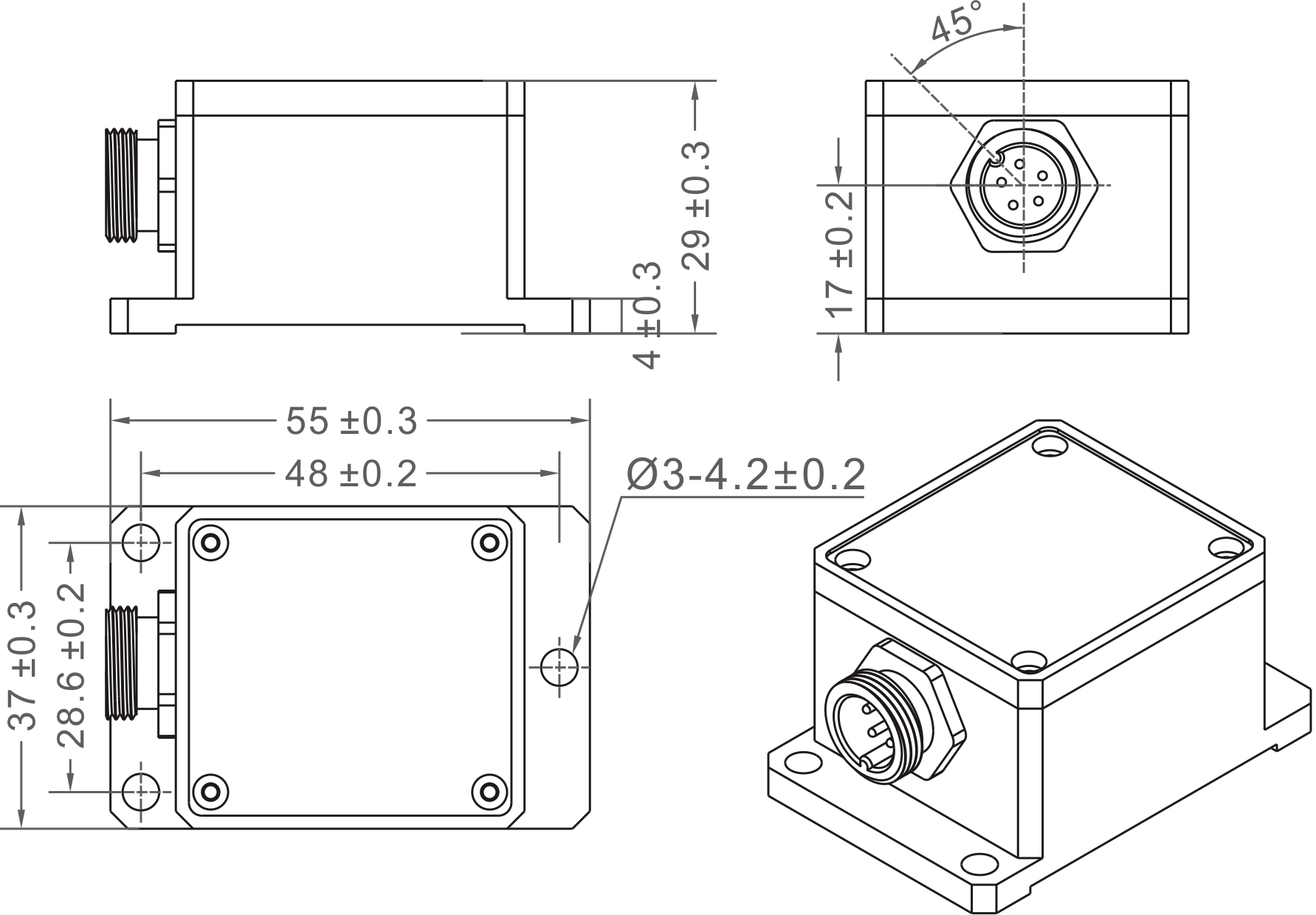

Housing package size

Case dimensions: L64.5×W50×H18.5mm

Recommended screws: 2 M4 screws
