GDS820 Industrial Digital Inclinometer High-Precision Dual Axis Tilt Sensor
GDS820 Industrial Digital Inclinometer High-Precision Dual Axis Tilt Sensor
GDS820 Industrial Digital Inclinometer High-Precision Dual Axis Tilt Sensor
GDS820 Industrial Digital Inclinometer High-Precision Dual Axis Tilt Sensor
GDS820 Industrial Digital Inclinometer High-Precision Dual Axis Tilt Sensor
GDS820 Industrial Digital Inclinometer High-Precision Dual Axis Tilt Sensor
Specifications
Model Number :
GDS8
Axis :
Single / Dual
MOQ :
1
Brand Name :
RUICOM
Measurement range :
±15° / ±30°
Supply Ability :
100000 pieces/year
Payment Terms :
T/T
Delivery Time :
7-15days
Certification :
CE, RoHS
Place of Origin :
Shenzhen, China
Description
The GDS8 series digital inclinometer, independently developed by RUICOM Technology, is a high-precision angle measurement and control device tailored for industrial-grade application scenarios. Developed through three years of intensive technological research and breakthroughs, it adopts advanced MEMS micro-mechanical sensing technology and is equipped with dual measurement cores. Featuring dynamic cross-axis compensation for X and Y axes, paired with self-developed cross-coupling compensation algorithms and professional temperature compensation models, the sensor delivers remarkably enhanced measurement accuracy and exceptional long-term operational stability.

Product Features

  • Supports single-axis and dual-axis measurement with a wide measuring range of ±30°;
  • Ultra-high resolution up to 0.001°, with full-range measurement accuracy less than 0.005°;
  • Adopts fast-response hardware and software design, ensuring stable and reliable data output;
  • Innovative magnetic adsorption structure supports multi-directional installation via side mounting and bottom mounting;
  • Built with data storage function and supports switching among multiple measurement units: degree, degree-minute-second, and mm/m.
The GDS8 series excels in industrial environmental adaptability, operational convenience, and cost performance. With multiple patented technological innovations, it fully meets the high-precision measurement requirements of diverse harsh industrial working environments, serving as a premium and reliable industrial angle measurement solution.

Technical Characteristics

❖ Full-range accuracy: better than 0.005°
❖ Repeatability error: ≤0.003°
❖ Supports absolute and relative measurement switching
❖ Built-in data recording function for key measurement data
❖ High-strength magnetic adsorption design for multi-scenario installation
❖ Customizable angle over-limit alarm function

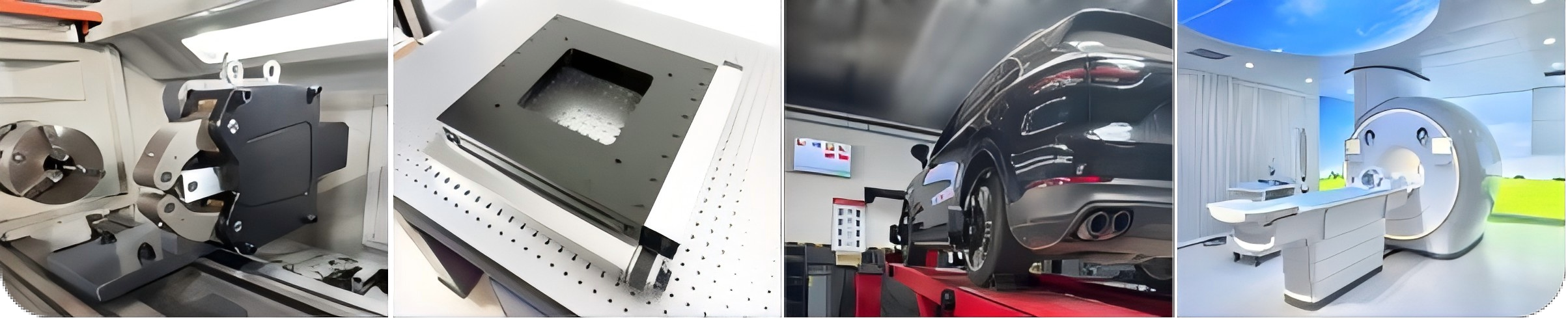

Application Field

❖ Architectural surveying ❖ Vehicle alignment and four-wheel calibration
❖ Road & slope gradient detection ❖ Pipeline laying and angle control
❖ Mechanical equipment installation and leveling ❖ Tooling & fixture leveling and control
❖ Camera pan-tilt angle calibration ❖ Medical equipment attitude measurement

GDS820 Industrial Digital Inclinometer High-Precision Dual Axis Tilt Sensor

Specifications

Parameter

GDS810

GDS820

Unit

Measuring Axis

Single-axis

Dual-axis

Dual-axis

Axis

Angle Measurement Range

±15°

±30°

±45°

±15°

±30°

°

Angle Measurement Accuracy (Full Range)

<0.005

<0.01

<0.03

<0.005

<0.01

°

Angle Measurement Resolution

0.001

0.001

0.001

0.001

0.001

°

mm/m Measurement Range

267

577

1035

267

577

mm/m

mm/m Measurement Accuracy

0.1

0.2

0.5

0.1

0.2

mm/m

mm/m Measurement Resolution

0.02

0.02

0.02

0.02

0.02

mm/m

Repeatability

0.003

0.003

0.003

0.003

0.003

°

Measurement Mode

Three modes can be set: angle, degrees/minutes/seconds, and millimeters/meters.

Operating Temp

-10℃~ +70℃

Operating Humidity

85%RH

Power Supply

3.7V

Ideal Charging Time

5 hours

Battery Continuous Operating Time

11 hours

Data Output Signal

Type-C

Included Host Computer Software

VC application software

Vibration Resistance

10g@11ms, triaxial (half-sine wave)

Shock Resistance

10grms / 10~100Hz

Waterproof Rating

IP54

Material

Anodized aluminum alloy

LCD Screen

64-color true-color luminous display screen

LCD Viewable Area Size

L57.6*W43.2mm

Dimensions

L109×W77×H27mm

Weight

≤350g

Product Dimensions

Shell: 109×77×27mm

Strong magnetic adsorption installation on the left and bottom sides
