LTS6 CAN2.0B Output Tilt Sensor Inclinometer For Aerial Work Platform
LTS6 CAN2.0B Output Tilt Sensor Inclinometer For Aerial Work Platform
LTS6 CAN2.0B Output Tilt Sensor Inclinometer For Aerial Work Platform
LTS6 CAN2.0B Output Tilt Sensor Inclinometer For Aerial Work Platform
LTS6 CAN2.0B Output Tilt Sensor Inclinometer For Aerial Work Platform
LTS6 CAN2.0B Output Tilt Sensor Inclinometer For Aerial Work Platform
Specifications
Model Number :
LTS6
Installation Direction :
Horizontal / Horizontal Downwards / Vertical / Vertical Downwards / Vertical Leftwards / Vertical Rightwards
MOQ :
1
Brand Name :
RUICOM
Measurement Range :
±10° / ±15° / ±30° / ±45° / ±60° / ±90°
Supply Ability :
100000 pieces/year
Payment Terms :
T/T
Delivery Time :
7-15days
Certification :
CE, RoHS
Measurement Axis :
X / Y / D
Place of Origin :
Shenzhen, China
Description

The LTS 6 series is a new generation of dynamic measurement-type, small-volume MEMS tilt sensors launched by RUICOM Technology , capable of stably measuring the attitude of moving vehicles. This product incorporates a dual-channel gravity tilt unit, measuring static gravitational acceleration and converting it into tilt angle changes, thereby obtaining the sensor's output tilt and pitch angles relative to the horizontal plane . The output interface is CAN2.0B. Thanks to the built-in MCU control system, the sensor's output linearity is double-corrected, compensating for the accuracy loss caused by insufficient correction in analog products.


This product employs a non-contact measurement principle, providing real-time output of the current attitude tilt angle. It is easy to operate and eliminates the need to locate two mounting surfaces with relative changes. Suitable for both static and dynamic measurement scenarios, this product is a reliable choice for industrial automation control and platform attitude measurement . It also possesses strong resistance to external electromagnetic interference. It can operate stably for a long time in harsh industrial environments.


Technical Characteristics

❖ Six installation methods ;

❖ Resolution 0.1° ;

❖ Output method: CAN 2.0B;

❖ High vibration resistance >2000g.


Application Field

❖ Agricultural machinery and equipment ❖ Construction hoisting equipment
❖ Aerial work platform ❖ Medical equipment leveling

❖ Electric vehicle control system ❖ Woodworking machinery

LTS6 CAN2.0B Output Tilt Sensor Inclinometer For Aerial Work Platform


Performance Parameters

LTS6

Condition

Parameter

Unit

Measurement range

± 90°

°

Measuring axis

X axis / Y

axis

Resolution

0.1

°

Static temperature

@25℃

±0.3

°

Dynamic temperature

@25℃

±0.8

°

Zero-point temp coefficient

-40℃~85℃

±0.01

°/℃

Sensitivity temp coefficient

-40℃~85℃

≤ 100

ppm /℃

Power-on startup time

1.5

S

Response frequency

0.05

S

Output signal

CAN2.0B

EMC

According to EN 61000 and GBT 17626

Insulation resistance

≥100 megohms

Impact resistance

100g@ 11 ms , triaxial ( half-sine wave )

Vibration resistance

10grms​ 10~1000 Hz

Protection level

IP67

Cable

Standard 2-meter shielded wire

Size

L64.5×W50×H18.5mm

weight

≤100g (excluding cable)


Electrical Parameters

Parameter

Condition

Minimum Value

Typical Value

Maximum Value

Unit

Power Supply voltage

Standard

9

12

24

36

V

Operating current

No load

40

mA

Operating temp

-40

85

℃

Storage temp

-40

85

℃

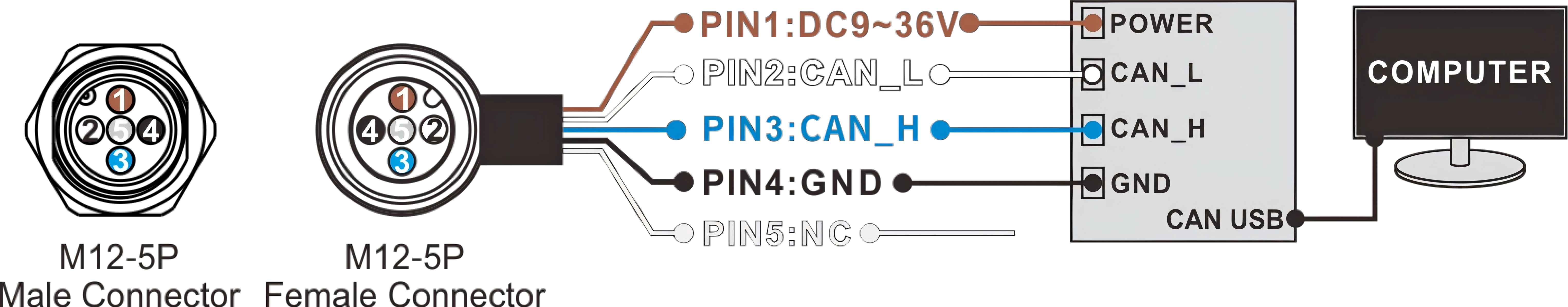

Interface Definition

PIN/Thread Color

Definition

Description

PIN1/Brown

9 ~36V

Positive terminal of power supply

PIN2/White

GND

Negative terminal of power supply

PIN3/Blue

CAN_H

Transmitting low-level signals

PIN4/Black

CAN_L

Transmit high-level signal


LTS6 CAN2.0B Output Tilt Sensor Inclinometer For Aerial Work Platform


Product Dimensions

Shell Size: L64.5×W50×H18.5mm

Recommended screws: 2 M4 screws

LTS6 CAN2.0B Output Tilt Sensor Inclinometer For Aerial Work Platform
