LTS6 Current Output Angle Tilt Sensor For Construction Hoisting Equipment
LTS6 Current Output Angle Tilt Sensor For Construction Hoisting Equipment
LTS6 Current Output Angle Tilt Sensor For Construction Hoisting Equipment
LTS6 Current Output Angle Tilt Sensor For Construction Hoisting Equipment
LTS6 Current Output Angle Tilt Sensor For Construction Hoisting Equipment
LTS6 Current Output Angle Tilt Sensor For Construction Hoisting Equipment
Specifications
Model Number :
LTS6
Current Output :
4~20mA
MOQ :
1
Brand Name :
RUICOM
Measurement Range :
±10° / ±15° / ±30° / ±45° / ±60° / ±90° / ±180°(Single Axis) / 0°~360°(Single Axis) / -3°~+97°(Single Axis)
Supply Ability :
100000 pieces/year
Payment Terms :
T/T
Delivery Time :
7-15days
Certification :
CE, RoHS
Measurement Axis :
X / Y / D
Place of Origin :
Shenzhen, China
Installation Direction :
Horizontal / Horizontal Downwards / Vertical / Vertical Downwards / Vertical Leftwards / Vertical Rightwards
Description

The LTS 6 series current output tilt sensor is a high-performance, cost-effective all-attitude angle measurement product independently developed by RUICOM Technology. Built on an innovative anti-interference platform Equipped with next-generation MEMS sensing technology It has wide temperature range adaptability and excellent vibration resistance. Excellent work stability It is designed to have a service life of up to 10 years.


This product uses a non-contact measurement principle. Changes in the gravitational component are detected using a high-precision capacitive MEMS unit. It calculates tilt angles in real time . Installation is flexible and convenient; it can be directly fixed to the surface of the object being measured without requiring additional mechanical shaft structures. It supports installation adaptation in multiple scenarios and can be widely used in engineering machinery, agricultural equipment, and industrial automation , providing customers with reliable tilt angle measurement solutions.


Technical Characteristics

❖ 4 ~20 mA output;

❖ Wide voltage input 9 ~36V;

❖ High vibration resistance >3500g;

❖ Long working life for 10 years.


Application Field

❖ Agricultural machinery and equipment ❖ Construction hoisting equipment
❖ Aerial work platform ❖ Medical equipment leveling

❖ Electric vehicle control system ❖ Woodworking machinery

LTS6 Current Output Angle Tilt Sensor For Construction Hoisting Equipment


Performance Parameters

LTS6

Parameter

Output current

4 ~20 mA

resolution

0.1°

Measurement accuracy (@25℃)

±0.2°

Response time

0.05s

Temp drift characteristics -40℃~+85℃

±0.5°

Output load

> 500 ohms

Insulation resistance

> 100 megaohms

Vibration resistance

10 grms​ 10 ~1000 Hz

Impact resistance

100g@11 ms , triaxial (half-sine wave)

Connector

M12 * 1.0-5 core male head

wiring

Standard 2-meter shielded cable

size

L64.5 ×W50 × H18.5mm

weight

≤200g

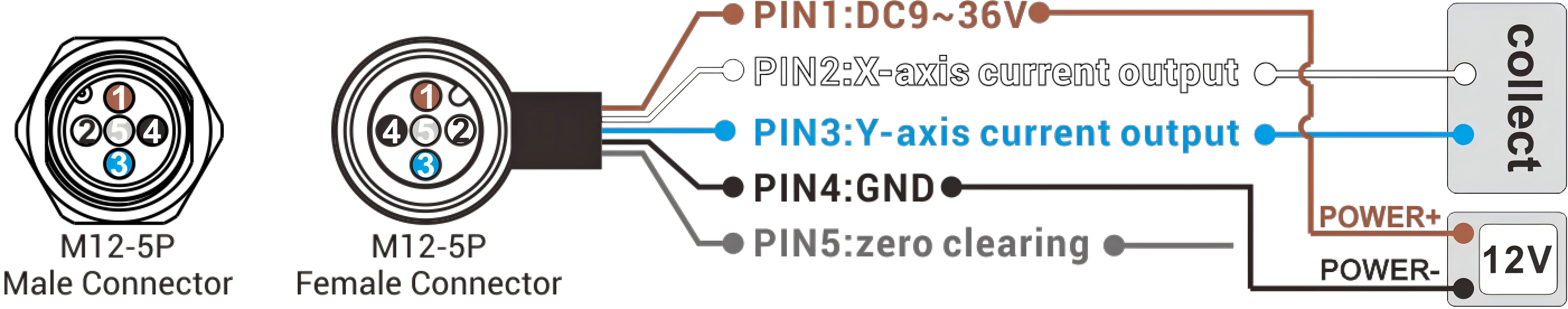

Interface Definition

PIN/Thread Color

Definition

Description

PIN1/Brown

9 ~36V

Positive terminal of power supply

PIN2/White

X-axis output

X-axis 4 ~ 20 mA output

PIN3/Blue

Y-axis output

Y-axis 4 ~ 20 mA output

PIN4/Black

GND

Negative terminal of power supply

PIN 5/Grey

Zero Clearing

--


LTS6 Current Output Angle Tilt Sensor For Construction Hoisting Equipment


Product Dimensions

Shell Size: L64.5×W50×H18.5mm

Recommended screws: 2 M4 screws

LTS6 Current Output Angle Tilt Sensor For Construction Hoisting Equipment
