LTS6 Voltage Output Angle Tilt Sensor For Agricultural Machinery
LTS6 Voltage Output Angle Tilt Sensor For Agricultural Machinery
LTS6 Voltage Output Angle Tilt Sensor For Agricultural Machinery
LTS6 Voltage Output Angle Tilt Sensor For Agricultural Machinery
LTS6 Voltage Output Angle Tilt Sensor For Agricultural Machinery
LTS6 Voltage Output Angle Tilt Sensor For Agricultural Machinery
Specifications
Model Number :
LTS6
Voltage Output :
0~5V
MOQ :
1
Brand Name :
RUICOM
Measurement Range :
±10° / ±15° / ±30° / ±45° / ±60° / ±90° / ±180°(Single Axis) / 0°~360°(Single Axis) / -3°~+97°(Single Axis)
Supply Ability :
100000 pieces/year
Payment Terms :
T/T
Delivery Time :
7-15days
Certification :
CE, RoHS
Measurement Axis :
X / Y / D
Place of Origin :
Shenzhen, China
Installation Direction :
Horizontal / Horizontal Downwards / Vertical / Vertical Downwards / Vertical Leftwards / Vertical Rightwards
Description

The LTS6 series voltage output tilt angle sensor is a cost-effective full attitude angle measurement product independently developed by RUICOM Technology. This product is designed based on an innovative anti-interference platform, equipped with a new generation MEMS sensing core, with wide temperature range adaptability and excellent anti vibration performance, excellent working stability, and a designed service life of up to 10 years.


This product adopts the principle of non-contact measurement, and uses high-precision capacitive MEMS units to detect gravity components to achieve tilt angle calculation. Easy and flexible installation, directly fixed on the surface of the object being tested, without the need for additional mechanical shaft structures, supporting multi-directional installation methods. Especially suitable for posture monitoring needs in industrial fields such as construction machinery and agricultural equipment.


Technical Characteristics

❖ 0~5V output;

❖ Wide voltage input 9 ~36V;

❖ High vibration resistance >3500g;

❖ Long working life for 10 years.


Application Field

❖ Agricultural machinery and equipment ❖ Construction hoisting equipment
❖ Aerial work platform ❖ Medical equipment leveling

❖ Electric vehicle control system ❖ Woodworking machinery

LTS6 Voltage Output Angle Tilt Sensor For Agricultural Machinery


Performance Parameters

LTS6

Parameter

Output voltage

0-5 V

resolution

0.1°

Measurement accuracy (@25℃)

±0.2°

Response time

0.05s

Temp drift characteristics -40℃~+85℃

±0.5°

Output load

> 500 ohms

Insulation resistance

> 100 megaohms

Vibration resistance

10 grms​ 10 ~1000 Hz

Impact resistance

100g@11 ms , triaxial (half-sine wave)

Connector

M12 * 1.0-5 core male head

wiring

Standard 2-meter shielded cable

size

L64.5 ×W50 × H18.5mm

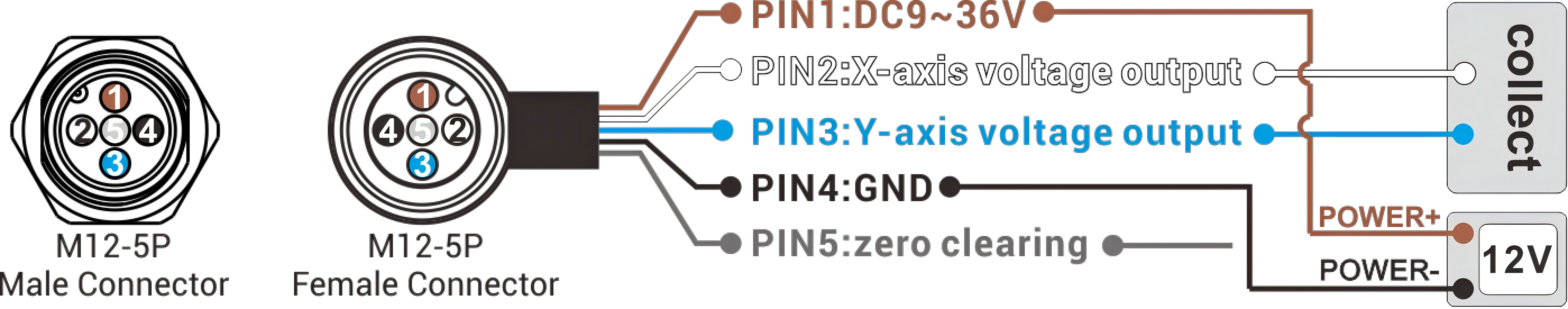

Interface Definition

PIN/Thread Color

Definition

Description

PIN1/Brown

9 ~36V

Positive terminal of power supply

PIN2/White

X-axis output

X-axis 0~5V output

PIN3/Blue

Y-axis output

Y-axis 0~5V output

PIN4/Black

GND

negative terminal of power supply

PIN 5/Gray

zero clearing

--

LTS6 Voltage Output Angle Tilt Sensor For Agricultural Machinery


Product Dimensions

Shell Size: L64.5×W50×H18.5mm

Recommended screws: 2 M4 screws

LTS6 Voltage Output Angle Tilt Sensor For Agricultural Machinery
