DTS6 Dynamic Inclinometer Tilt Sensor High Shock Resistant with Digital Output
DTS6 Dynamic Inclinometer Tilt Sensor High Shock Resistant with Digital Output
DTS6 Dynamic Inclinometer Tilt Sensor High Shock Resistant with Digital Output
DTS6 Dynamic Inclinometer Tilt Sensor High Shock Resistant with Digital Output
DTS6 Dynamic Inclinometer Tilt Sensor High Shock Resistant with Digital Output
DTS6 Dynamic Inclinometer Tilt Sensor High Shock Resistant with Digital Output
Specifications
Supply Ability :
100000 pieces/year
Payment Terms :
T/T
Delivery Time :
7-15days
Place of Origin :
Shenzhen, China
Application :
Shipboard / Construction Excavator / Construction Piling / In-vehicle / Mine Truck inclination / Tower crane / Wind turbine power generation
Model Number :
DTS
Signal Output :
RS232 / RS485 / UART TTL
MOQ :
1
Communication Protocol :
Binary Protocol / MODBUS Protocol
Certification :
CE, RoHS
Installation Direction :
Horizontal / Horizontal Downwards / Vertical / Vertical Leftwards / Vertical Rightwards
Brand Name :
RUICOM
Package :
PCBA Board / Standard casing / IP68 / Anti-corrosion shell
Description

Upper Computer Software Video:


DTS6 is a high-performance digital MEMS dynamic tilt sensor independently developed by RUICOM Technology. It is engineered for attitude monitoring of moving equipment and delivers precise 3D attitude data including roll, pitch and yaw angles, ideal for tilt detection under vibrating or dynamic working conditions.

Equipped with a multi-axis MEMS inertial measurement unit (IMU) that integrates 3-axis accelerometer and 3-axis gyroscope, the sensor adopts an adaptive Kalman filter algorithm to output high-precision attitude readings in real time during motion. It supports multiple digital interfaces: RS485, RS232 and TTL, featuring great compatibility for easy system integration.

Working on the non-contact measurement principle, it conducts real-time attitude calculation without requiring a reference mounting plane. The onboard high-precision ADC and gyro compensation unit automatically compensate for nonlinear error, axis crosstalk, temperature drift and centrifugal acceleration interference. This greatly suppresses motion-induced measurement deviation and enhances dynamic accuracy, enabling stable long-term operation in harsh industrial sites.

Supporting both dynamic and static measurement modes, DTS6 boasts outstanding EMI resistance and high shock & vibration tolerance. It is widely deployed for attitude measurement and control in industrial automation, construction machinery, rail transit and other demanding scenarios, serving as a reliable industrial-grade attitude sensing solution.


Technical Characteristics

❖ Dynamic Accuracy: ±0.1°
❖ Static Accuracy: ±0.05°
❖ Optional communication interfaces: RS485 / RS232 / TTL
❖ Measuring Range: Roll ±180°, Pitch ±90°, Yaw ±180°

❖ Three Protection Classes Available


Application Field

★ Leveling of construction machinery ★ Aircraft attitude control
★ Vessel attitude monitoring ★ Monitoring & control for agricultural machinery
★ Heavy shock & vibration crushing equipment ★ Monitoring and control of engineering vehicles

DTS6 Dynamic Inclinometer Tilt Sensor High Shock Resistant with Digital Output

Performance Parameters

DTS6

Parameter

Measurement Range

Roll ±180°, Pitch ±90°, Azimuth ±180°

(Initial value after power failure is 0°)

Measurement Axis

X-axis / Y-axis / Z-axis

Roll and Pitch Resolution1)

0.01°

Roll and Pitch Static Accuracy @25℃

±0.05°

Roll and Pitch Dynamic Accuracy (rms) @25℃

±0.1°

gyroscope

Gyroscope Range

±300°/s

Oblique Stability (10s Mean)

8.5°/h

Oblique Instability (allan)

4.5°/h

Angle Random Walk Coefficient (allan)

0.25°/sqrt(h)

acceleration

Acceleration Range

±4g / ±16g (optional)

Oblique Stability (10s Mean)

0.02mg

Oblique Instability (allan)

0.005mg

Velocity Random Walk Coefficient (allan)

0.005m/s/sqrt(h)

Zero-point temp coefficient3)@-40~85℃

±0.01°/℃

Sensitivity temp coefficient4)@-40~85℃

≤100ppm/℃

Power-on startup time

≤3.5S

Response time

0.01S

Communication protocol

RS485/RS232/TTL optional

Electromagnetic compatibility

According to EN61000 and GBT17626

Mean time between failures (MTBF)

≥98000hours/time

Insulation resistance

≥100megaohm

Shock resistance

100g@11ms, triaxial (half-sine wave)

Vibration resistance

10grms / 10~1000Hz

Protection class

IP67 / IP68 / Anti-corrosion (optional)

Connector/cable

M12-5-pin aviation plug connector / 2-meter black PVC shielded cable

Weight

Single connector ≤176g / Dual connector ≤182g (excluding cable)

1) Resolution: The smallest angular change that the sensor can detect within its effective range, reflecting its ability to monitor minute tilt fluctuations.
2) Accuracy: Calculated by performing multiple repeated measurements (sample size ≥ 16) at a fixed angle under standard ambient temperature (25±5℃), representing the root mean square (RMS) error between the measured and true values, characterizing the sensor's overall measurement deviation.
3) Zero-point temperature coefficient: The ratio of the sensor's output value to temperature change under zero-input conditions, defined as the ratio of the zero-point offset within the rated operating temperature range to the room temperature reference value.
4) Sensitivity temperature coefficient: The stability index of the sensor's full-scale output value with temperature changes, characterizing the drift rate of sensitivity relative to the room temperature reference value within the rated temperature range.

Electrical Parameters

Parameter

Condition

MINI

TYP

MAX

Unit

Power supply voltage

Standard

9

12

24

36

V

Operating current

No load

40mA(12V)

mA

Operating temp

-40

+85

℃

Storage temp

-40

+85

℃

Interface Definition

PIN/Thread Color

Definition

Description


PIN1 / Brown

9~36V

Power supply positive terminal


PIN2 / White

RS232_RXD/TTL_RXD/485_D+

Signal output


PIN3 / Blue

RS232_TXD/TTL_TXD/485_D-

Signal output


PIN4 / Black

GND

Power supply negative terminal


PIN5 / Gray

PE

Protective ground

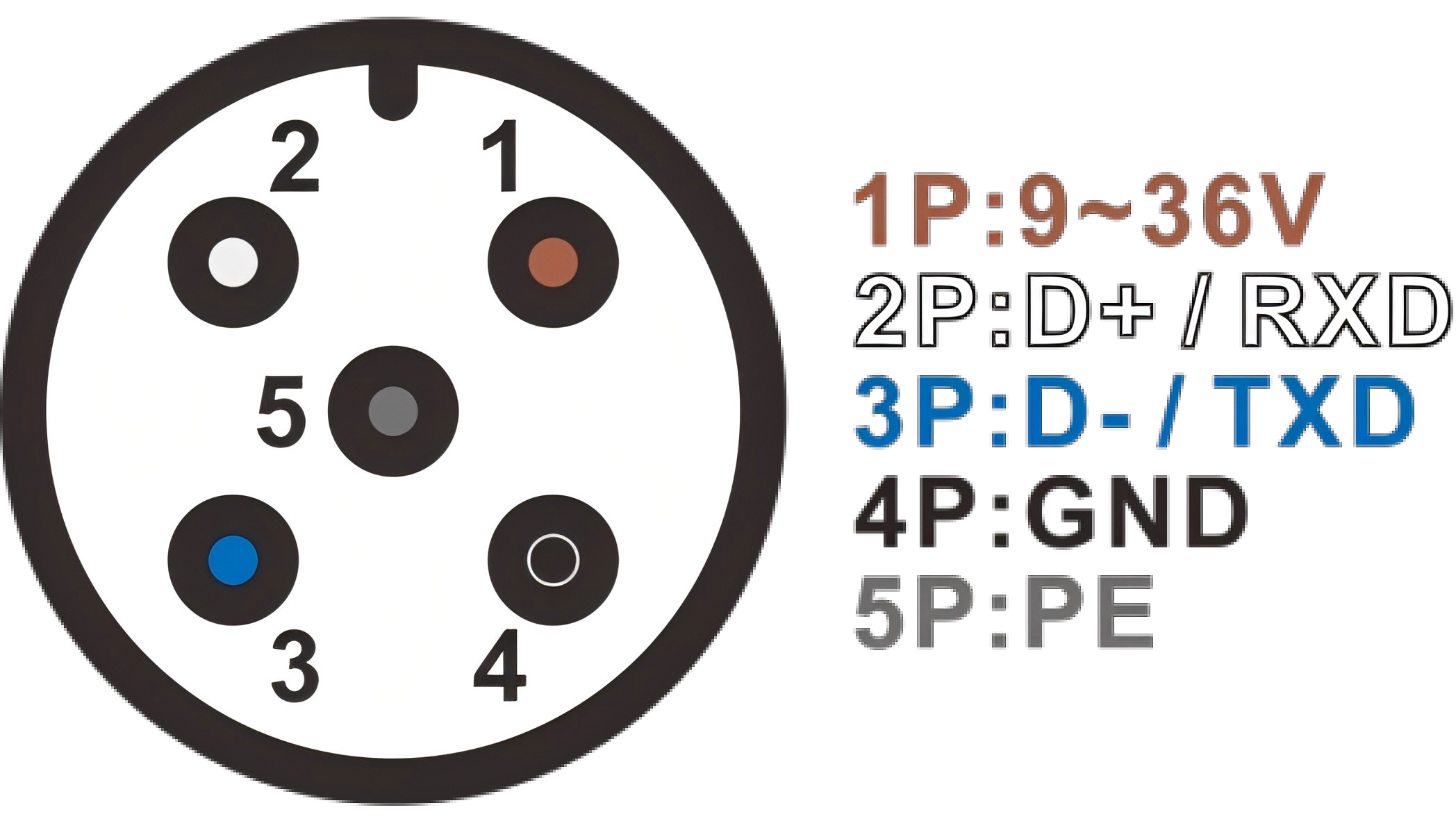

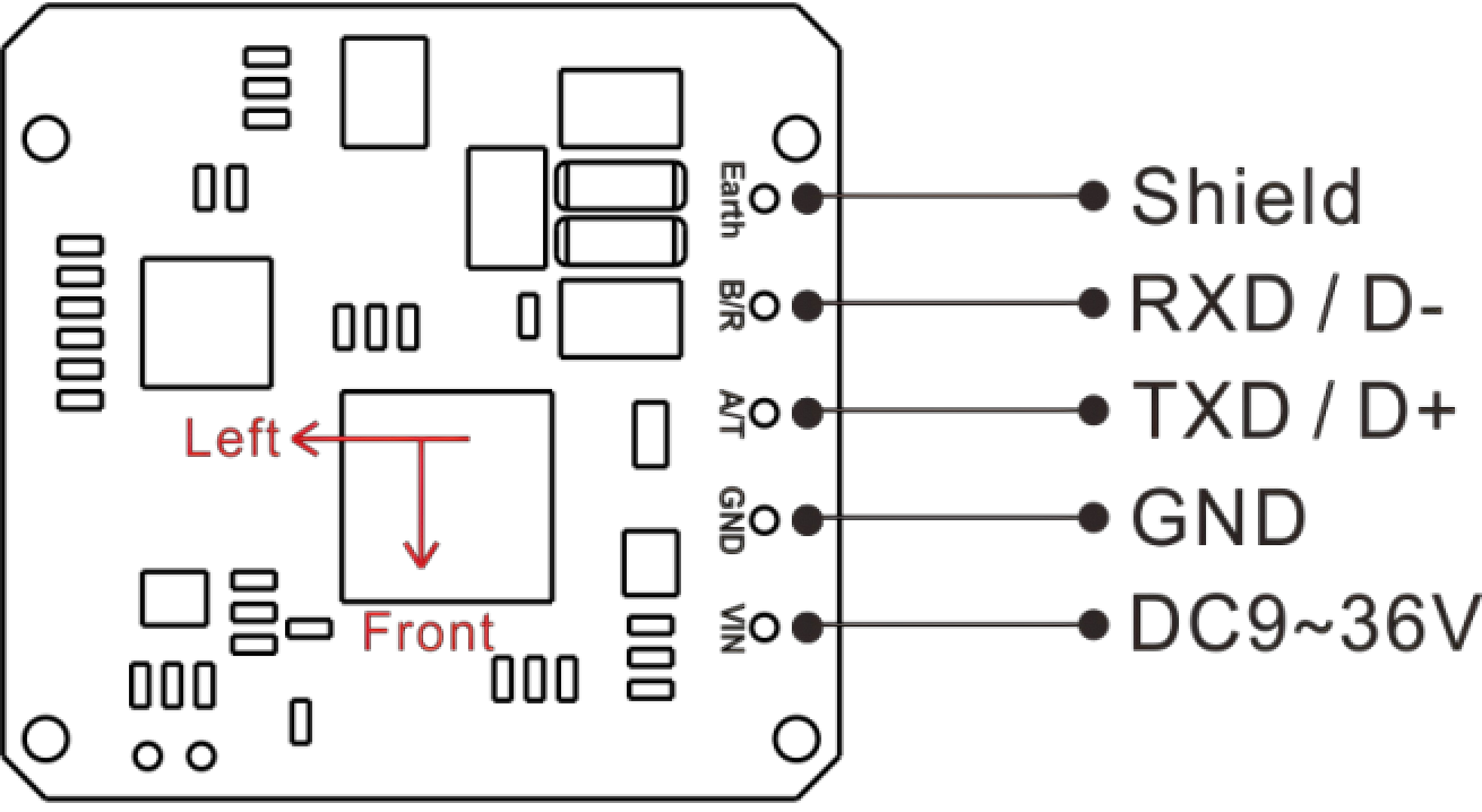

Connector pin definition diagram PCBA board wiring definition diagram DTS6 Dynamic Inclinometer Tilt Sensor High Shock Resistant with Digital Output DTS6 Dynamic Inclinometer Tilt Sensor High Shock Resistant with Digital Output


Product Dimensions

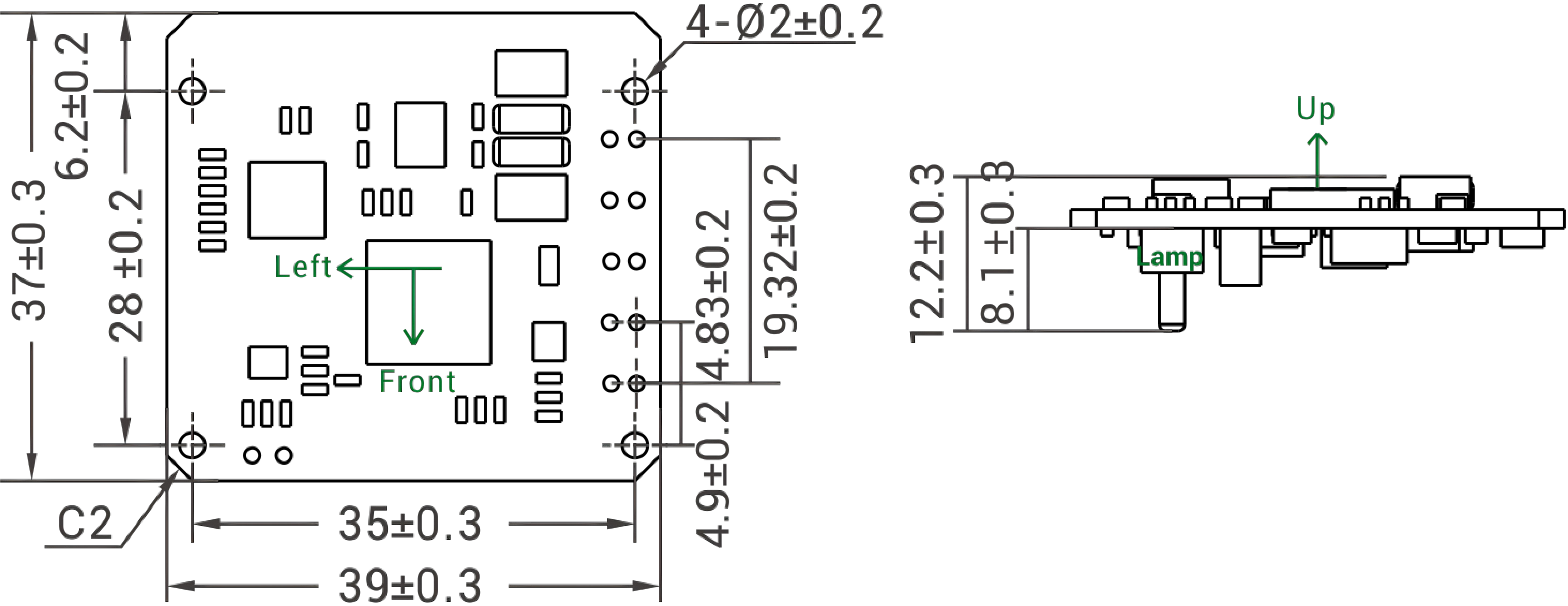

PCBA Dimension Diagram

PCBA size: L39×W37×H12.2mm

Installation size: L35×W28mm

Suggested screw: 4 M2 screws

DTS6 Dynamic Inclinometer Tilt Sensor High Shock Resistant with Digital Output

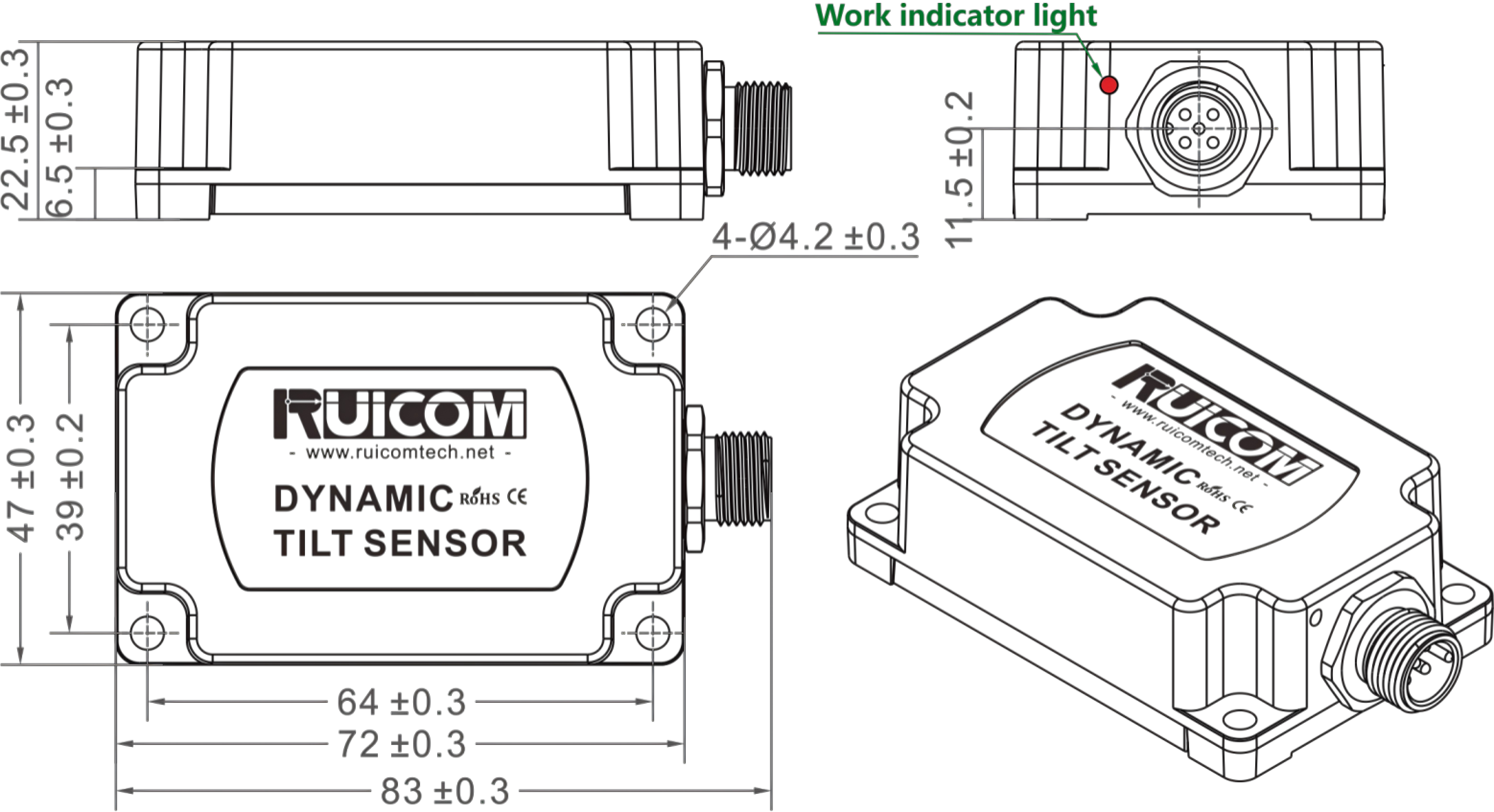

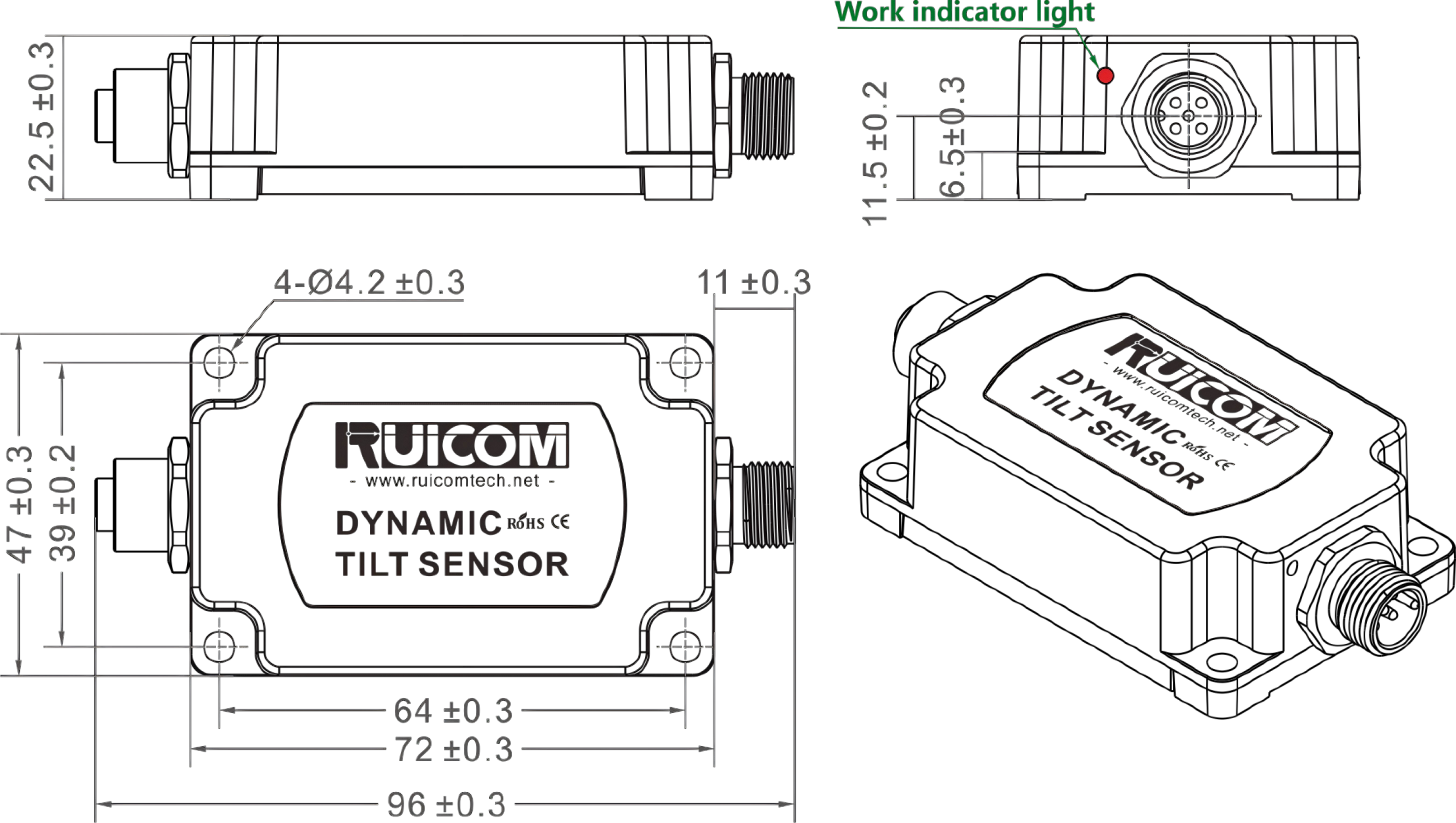

Single-head (male) connector housing dimension drawing

Shell Size: L83×W47×H22.5mm

Installation Size: L64×W39×H6.5mm

Shell material: aluminum alloy

Suggested screws: 4 M4 screws

DTS6 Dynamic Inclinometer Tilt Sensor High Shock Resistant with Digital Output

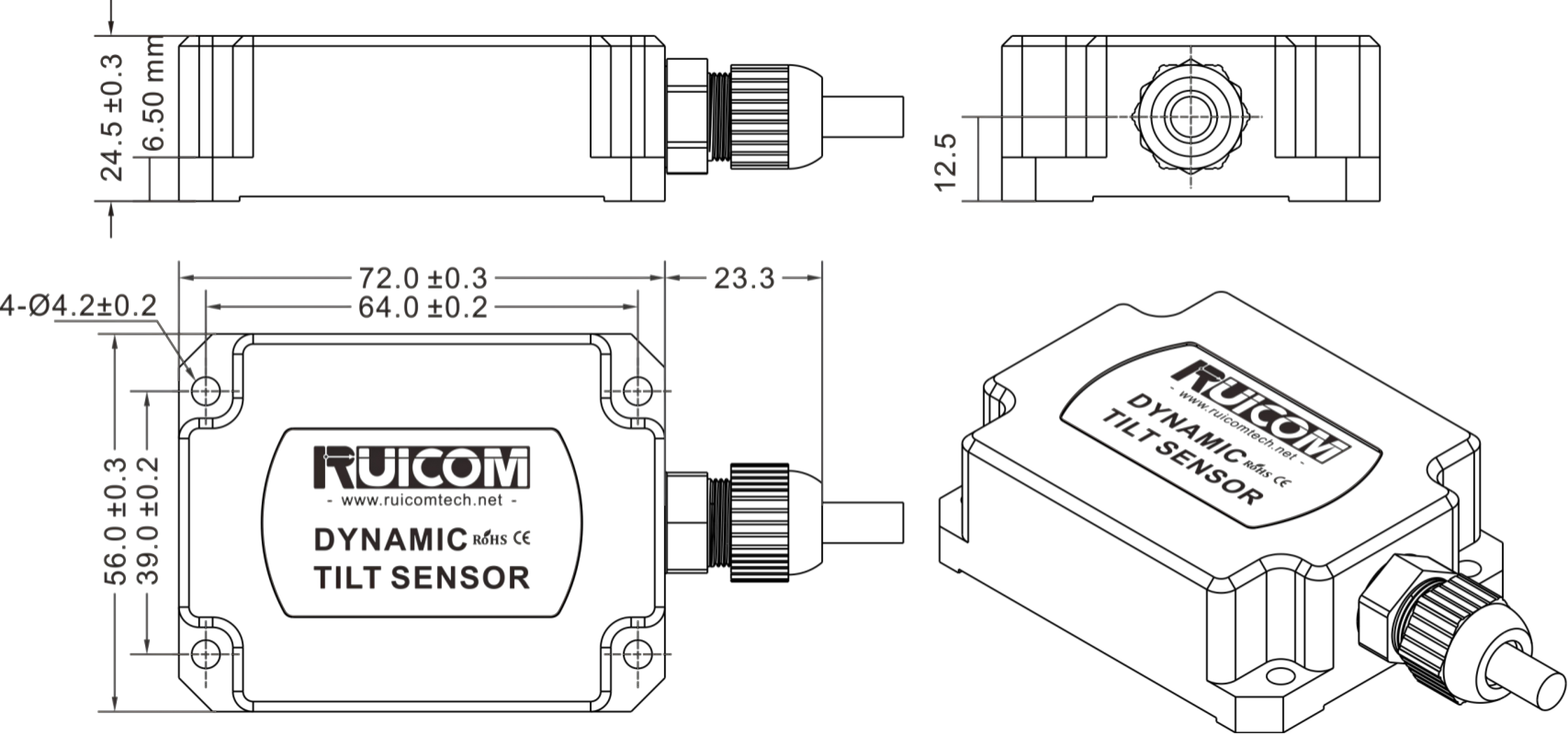

Corrosion-resistant shell size diagram

Shell Size: L95.3×W56×H24.5mm
Installation Size: L64×W39×H6.5mm

Shell material: 304 stainless steel

Suggested screws: 4 M4 screws

DTS6 Dynamic Inclinometer Tilt Sensor High Shock Resistant with Digital Output
