DTS6 Dynamic Tilt Sensor High Shock Resistant with CANOpen Output
DTS6 Dynamic Tilt Sensor High Shock Resistant with CANOpen Output
DTS6 Dynamic Tilt Sensor High Shock Resistant with CANOpen Output
DTS6 Dynamic Tilt Sensor High Shock Resistant with CANOpen Output
DTS6 Dynamic Tilt Sensor High Shock Resistant with CANOpen Output
DTS6 Dynamic Tilt Sensor High Shock Resistant with CANOpen Output
Specifications
Model Number :
DTS
Connector :
Single Head (Male) / Dual Head (Male/Female)
Certification :
CE, RoHS
Application :
Shipboard / Construction Excavator / Construction Piling / In-vehicle / Mine Truck Applications / Tower crane / Wind Turbine Power Generation
MOQ :
1
Communication Protocol :
CANOpen
Payment Terms :
T/T
Delivery Time :
7-15days
Place of Origin :
Shenzhen, China
Installation Direction :
Horizontal / Horizontal Downwards / Vertical / Vertical Leftwards / Vertical Rightwards
Brand Name :
RUICOM
Package :
PCBA Board / Standard Housing / IP68 / Corrosion-Resistant Housing
Supply Ability :
100000 pieces/year
Description

DTS6 CANOpen is a high-performance digital MEMS dual-axis dynamic tilt sensor independently developed by RUICOM Technology, specifically designed for real-time attitude monitoring of moving vehicles. It is optimized for tilt measurement under vibration or motion conditions. This product integrates a triaxial accelerometer and gyroscope sensing unit, achieving multi-source data fusion through an adaptive Kalman filter algorithm. It can accurately calculate and output the spatial attitude parameters of the vehicle under motion. Employing the standardized CANOPEN communication protocol, it ensures seamless integration with industrial control systems, meeting the protocol compatibility and application reliability requirements of demanding industrial scenarios.

Based on non-contact MEMS sensing principles, this product supports real-time tilt data output, eliminating the need for planar relative calibration during installation. The sensor incorporates a 24-bit high-precision ADC module and a six-axis inertial measurement unit (IMU). Embedded algorithms compensate for nonlinear errors, axial crosstalk, temperature drift effects, and rotational centrifugal acceleration interference in real time, effectively suppressing measurement deviations caused by motion acceleration and significantly improving measurement accuracy in dynamic environments. This technical characteristic enables it to maintain long-term measurement stability under extreme motion conditions and harsh operating conditions.

As a professional-grade sensor for dynamic/static dual-mode measurement, the DTS CANOpen boasts high immunity to disturbances and can withstand high mechanical shocks and wide-frequency vibration environments. Its industrial-grade protection design (IP67/IP68) and wide operating temperature range of -40℃ to +85℃ make it the preferred solution for attitude control in industrial automation, engineering machinery, and heavy equipment.


Technical Characteristics

★ Dual-axis measurement range: ±90°
★ High resolution: 0.01°
★ Dynamic measurement accuracy: ±0.1°
★ Static measurement accuracy: ±0.05°
★ Standard CANOpen communication protocol
★ Optional three levels of protection grades


Application Field

★ Heavy shock & vibration crushing equipment monitoring
★ Engineering vehicle status monitoring and control
★ Construction machinery precision leveling
★ Agricultural machinery monitoring and control
★ Aerospace aircraft attitude control
★ Marine ship attitude monitoring

DTS6 Dynamic Tilt Sensor High Shock Resistant with CANOpen Output

Performance Parameters

DTS6 CANOpen

Parameter

Measurement Range

X-tilt ±180°, Y-tilt ±90°

Measurement Axis

X & Y dual-axis

Roll and Pitch Resolution 1)

0.01°

Roll and Pitch Static Accuracy @25℃

±0.05°

Roll and Pitch Dynamic Accuracy (rms) @25℃

±0.1°

gyroscope

Gyroscope range

±300°/s

Zero-bias stability (10s mean)

8.5°/h

Zero-bias instability (allan)

4.5°/h

Angle random walk coefficient (allan)

0.25°/sqrt(h)

acceleration

Acceleration range

±4g / ±16g(optional)

Bias stability (10s mean)

0.02mg

Bias instability (allan)

0.005mg

Velocity random walk coefficient (allan)

0.005m/s/sqrt(h)

Zero-point temp coefficient 3)@-40~85℃

±0.01°/℃

Sensitivity temp coefficient 4)@-40~85℃

≤100ppm/℃

Power-on time

≤3.5S

Response time

0.01S

Communication protocol

CAN Open

Electromagnetic compatibility

According to EN61000 and GBT17626

Insulation resistance

≥100megaohm

Shock resistance

100g@11ms, triaxial (half-sine wave)

Vibration resistance

10grms / 10~1000Hz

Protection class

IP67 / IP68 / Anti-corrosion (optional)

Connector/cable

M12-5-pin aviation plug connector /
2-meter black PVC shielded cable

Weight

Single connector ≤176g /
Dual connector ≤182g (excluding cable)

1) Resolution: The smallest angular change that the sensor can detect within its effective range, reflecting its ability to monitor minute tilt fluctuations.
2) Accuracy: Calculated by performing multiple repeated measurements (sample size ≥ 16) at a fixed angle under standard ambient temperature (25±5℃), representing the root mean square (RMS) error between the measured and true values, characterizing the sensor's overall measurement deviation.
3) Zero-point temperature coefficient: The ratio of the sensor's output value to temperature change under zero-input conditions, defined as the ratio of the zero-point offset within the rated operating temperature range to the room temperature reference value.
4) Sensitivity temperature coefficient: The stability index of the sensor's full-scale output value with temperature changes, characterizing the drift rate of sensitivity relative to the room temperature reference value within the rated temperature range.

Electrical Parameters

Parameter

Condition

MINI

TYP

MAX

Unit

Power supply voltage

Standard

9

12

24

36

V

Operating current

No load

40mA(12V)

mA

Operating temp

-40

85

℃

Storage temp

-40

85

℃

Interface Definition

PIN/Thread Color

Definition

Description

PIN1 / Brown

PE

Protective ground

PIN2 / White

9~36V

Positive power supply

PIN3 / Blue

GND

Negative power supply

PIN4 / Black

CAN_H

-

PIN5 / Gray

CAN_L

-

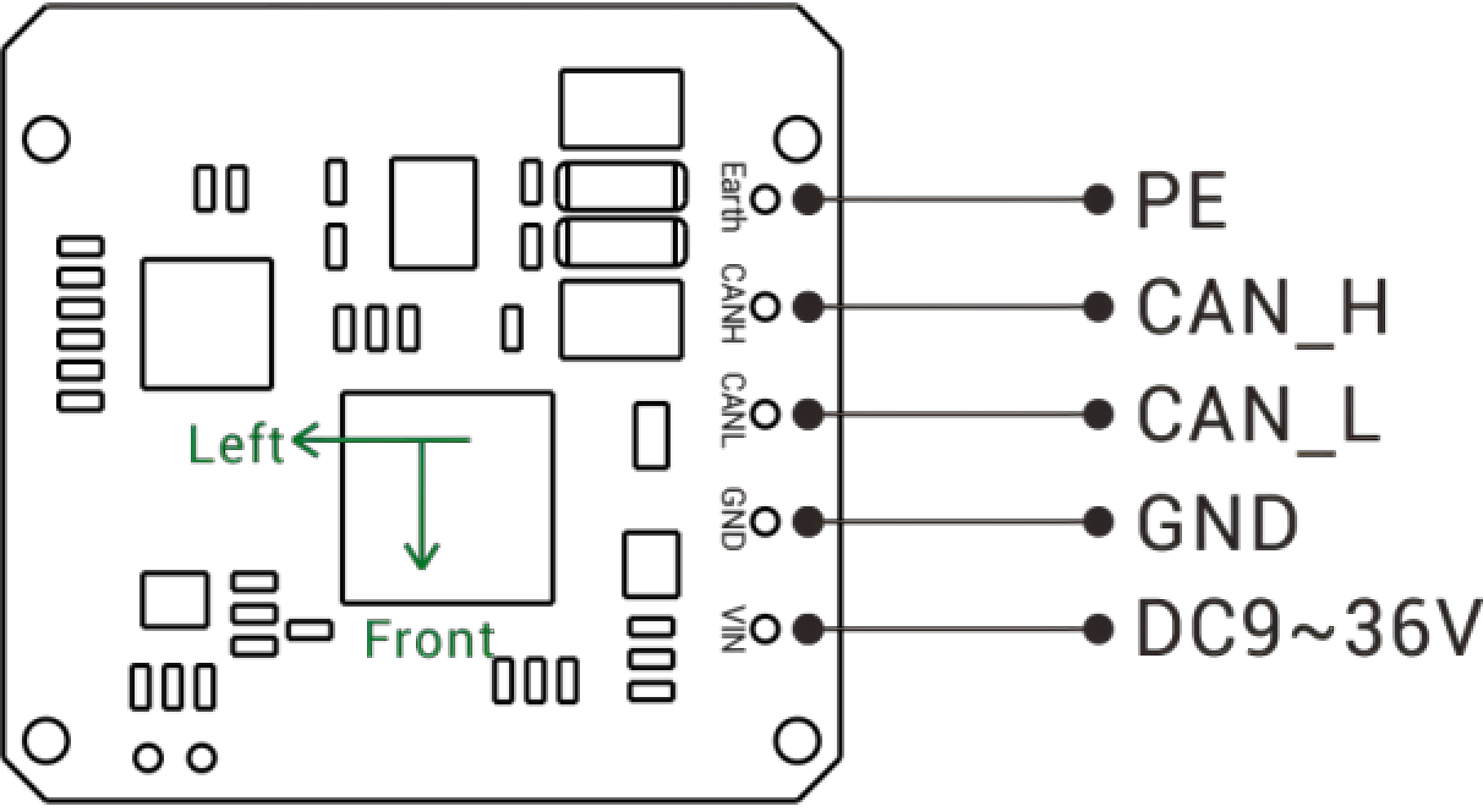

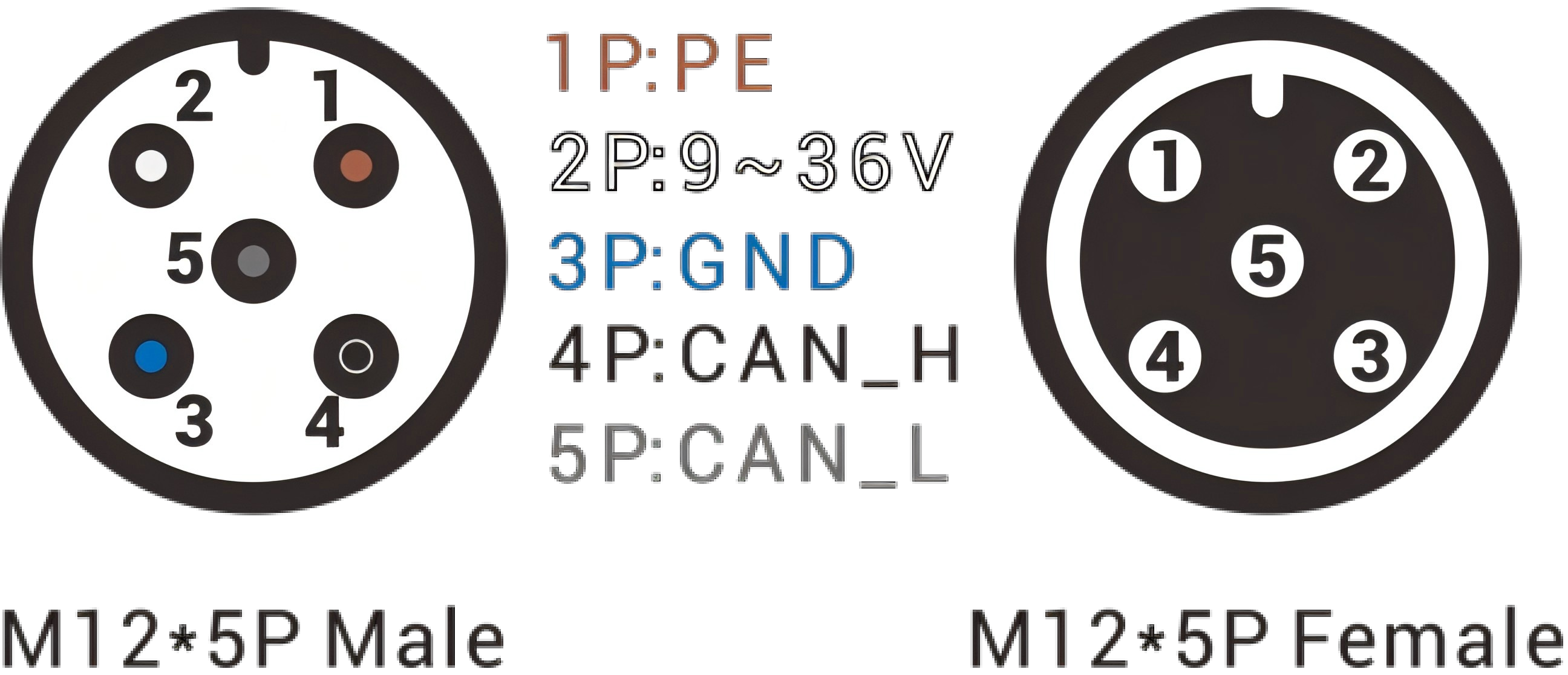

Connector pin definition diagram PCBA board wiring definition diagram

DTS6 Dynamic Tilt Sensor High Shock Resistant with CANOpen Output DTS6 Dynamic Tilt Sensor High Shock Resistant with CANOpen Output


Product Dimensions

PCBA Dimension Diagram

PCBA size: L39×W37×H12.2mm

Installation size: L35×W28mm

Suggested screw: 4 M2 screws

DTS6 Dynamic Tilt Sensor High Shock Resistant with CANOpen Output


Single-head (male) connector housing dimension drawing

Shell Size: L83×W47×H22.5mm

Installation Size: L64×W39×H6.5mm

Shell material: aluminum alloy

Suggested screws: 4 M4 screws


DTS6 Dynamic Tilt Sensor High Shock Resistant with CANOpen Output


Double-headed connector Shell Size

Shell Size: L96×W47×H22.5mm
Installation Size: L64×W39×H6.5mm

Shell material: aluminum alloy

Suggested screws: 4 M4 screws

DTS6 Dynamic Tilt Sensor High Shock Resistant with CANOpen Output



Corrosion-resistant shell size diagram

Shell Size: L95.3×W56×H24.5mm
Installation Size: L64×W39×H6.5mm

Shell material: 304 stainless steel

Suggested screws: 4 M4 screws


DTS6 Dynamic Tilt Sensor High Shock Resistant with CANOpen Output
