HTS6

Condition

Parameter

Measurement Range

±10°

±35°

Measurement Axis

Single / Dual-axis

Single / Dual-axis

Resolution1)

0.001°

0.001°

Measurement Accuracy2)

@25℃

0.005°(RMS)

0.01°(RMS)

Long-Term Stability

0.01°

0.02°

Zero-Point Temp Coefficient3)

-40~85℃

±0.002°/℃

±0.002°/℃

Sensitivity Temp Coefficient4)

-40~85℃

≤50ppm/℃

≤50ppm/℃

Power-On Startup Time

0.5s

0.5s

Response Frequency

20Hz

20Hz

Output Rate

5Hz / 15Hz / 35Hz / 50Hz Configurable

Output Signal

CAN2.0A

EMC

According to EN61000 and GBT17626

Insulation Resistance

≥100 MΩ

Shock Resistance

100g@11ms, 3 Axial Direction (Half Sinusoid)

Vibration Resistance

10grms/10~1000Hz

Protection Class

IP67

Cables

Standard 2m cable, wire diameter 6.0mm, wire weight ＜ 155g

Weight

≤200g (excluding cable)

1)Resolution: The smallest angular change that can be detected within the effective measurement range, reflecting its ability to monitor minute tilt fluctuations.
2)Measurement Accuracy: A comprehensive evaluation of the sensor's performance indicators under standard ambient temperature, including the overall performance of linearity error, repeatability error, hysteresis error, zero-point offset error, and cross-axis sensitivity error.
3)Zero-Point Temperature Coefficient: The ratio of the sensor's output value to temperature when the sensor is in a zero-input state, defined as the ratio of the zero-point offset within the rated operating temperature range to the room temperature reference value.
4)Sensitivity Temperature Coefficient: A stability index of the sensor's full-scale output value with temperature changes, characterizing the drift rate of sensitivity relative to the room temperature reference value within the rated temperature range.

Parameter

Condition

Minimum Value

Standard

Maximum Value

Unit

Power Supply voltage

Standard

9

12

24

36

V

Customized

Other voltages

Operating current

No load

50

mA

Operating temp

-40

85

℃

Storage temp

-40

85

℃

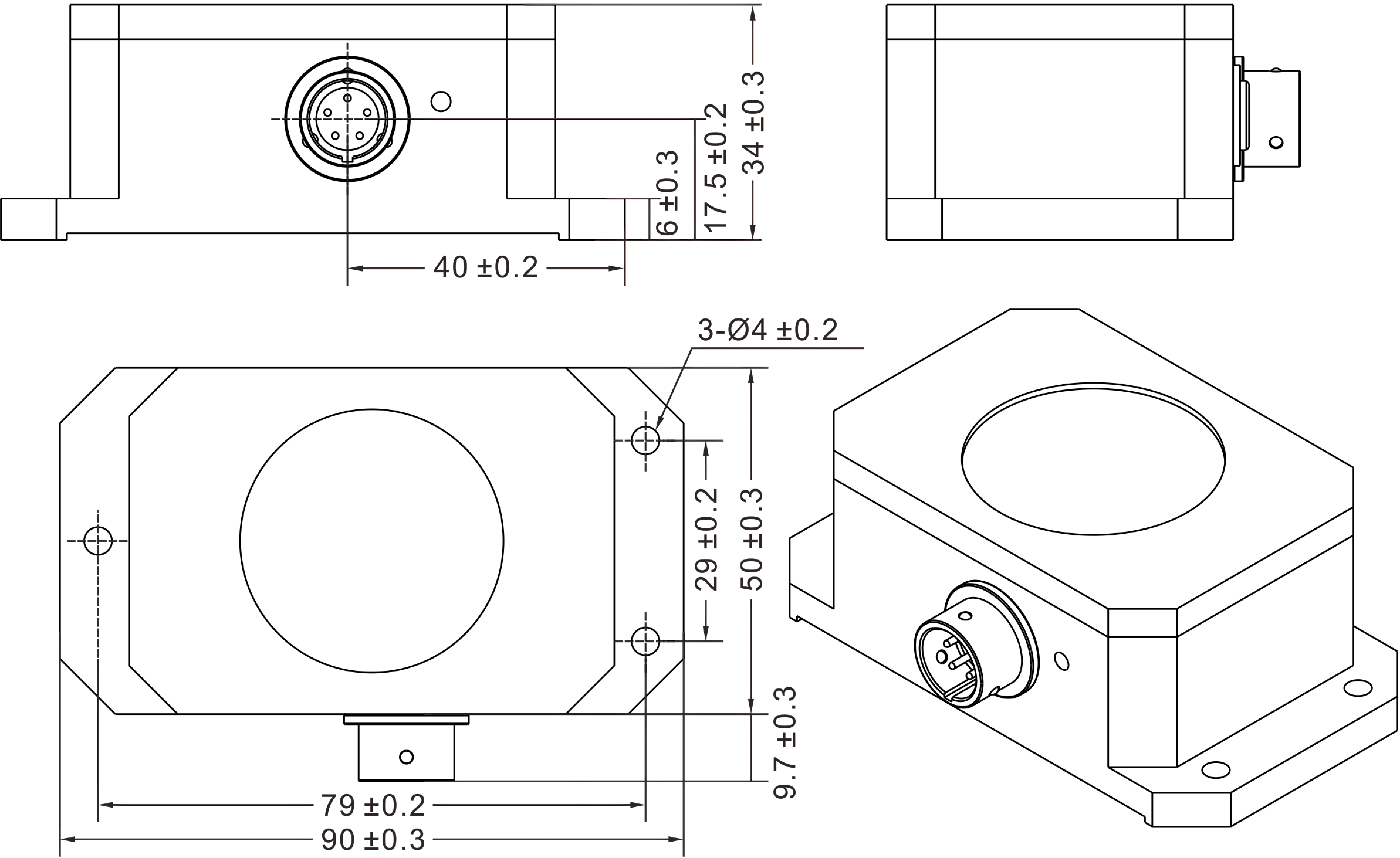

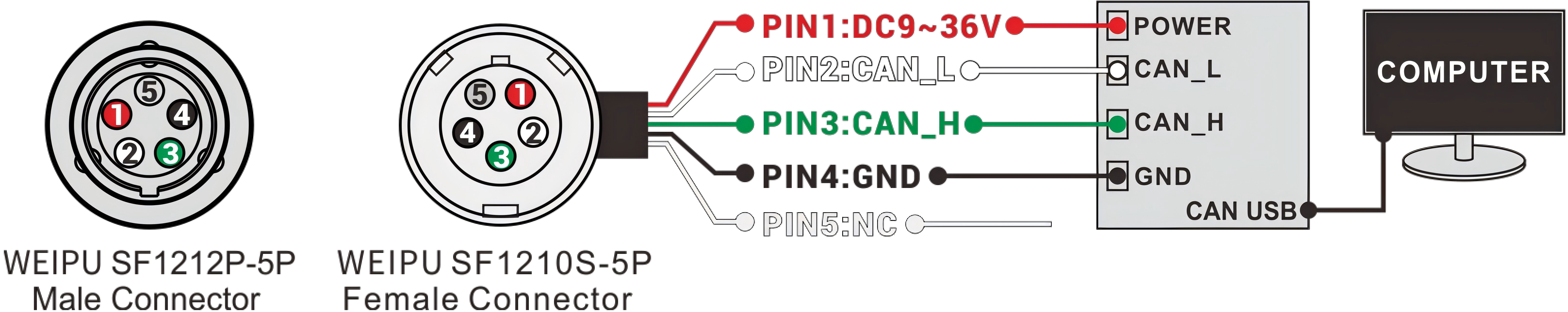

PIN/Thread Color

Definition

Description

PIN1 / Red

DC9~36V

Positive power supply terminal

PIN2 / White

CAN_L

Transmits low-level signal

PIN3 / Green

CAN_H

Transmits high-level signal

PIN4 / Black

GND

Negative power supply terminal

PIN5 / -----

--

--
