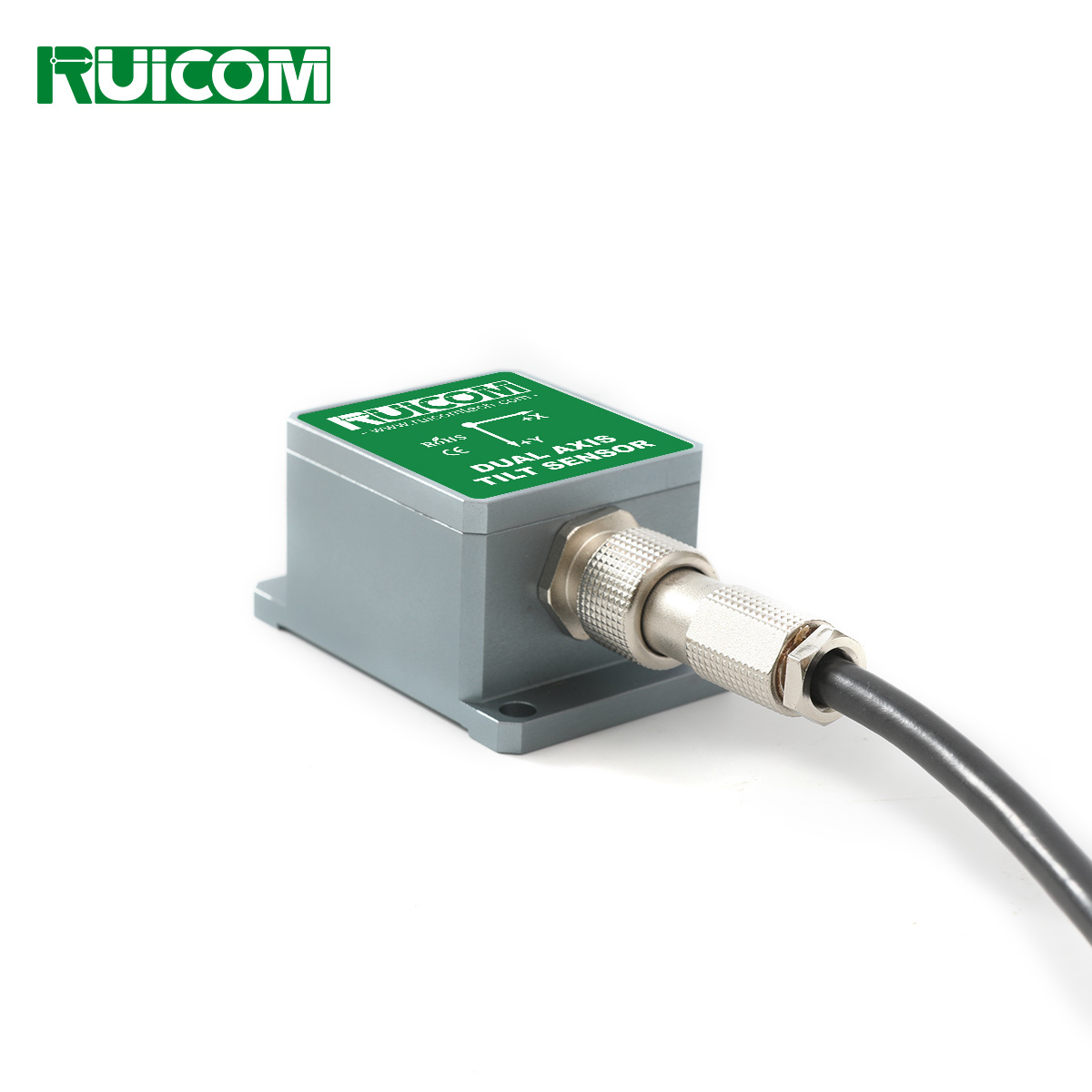

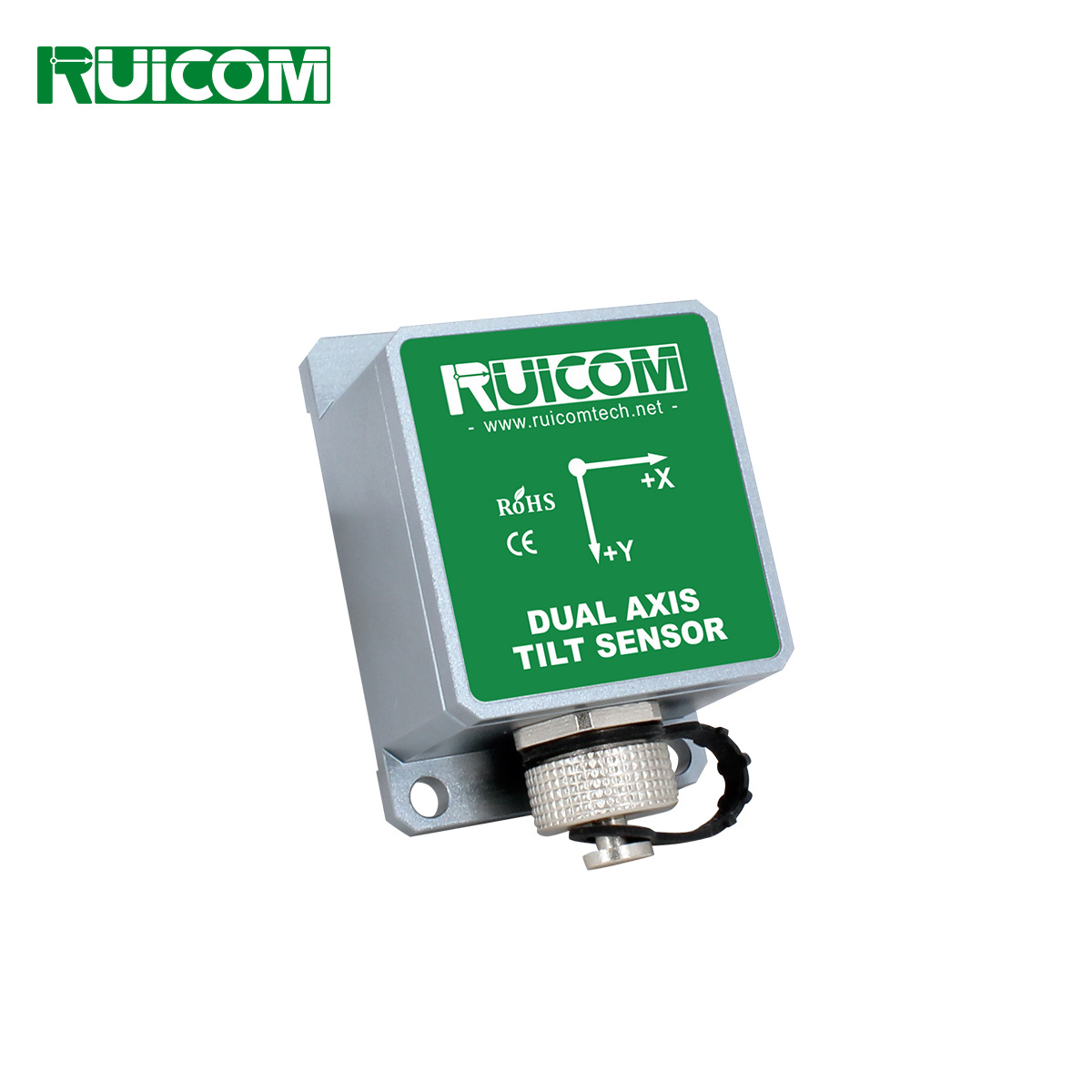

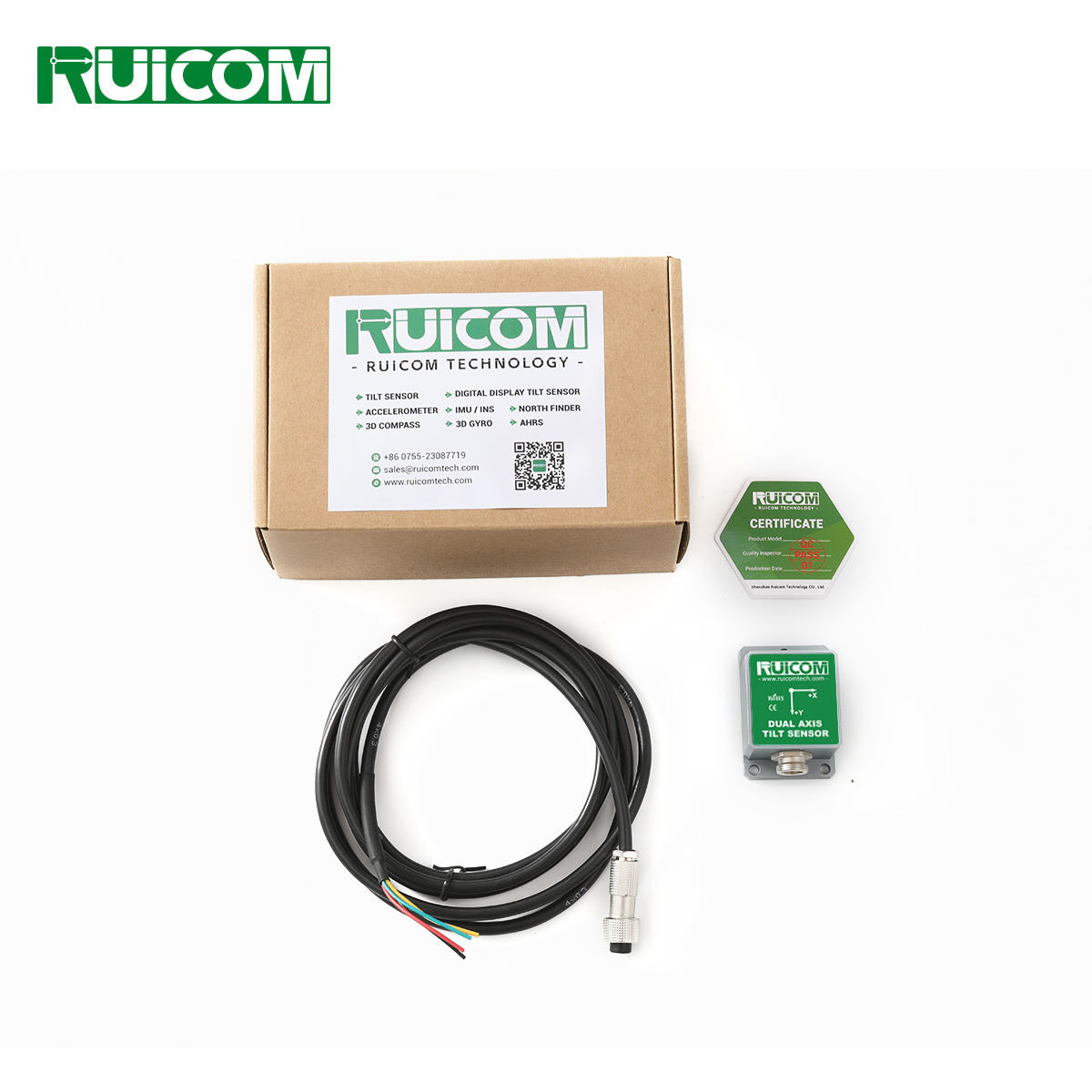

The NTS series inclinometer is a compact digital output MEMS inclinometer from Ruicom Technology. This product integrates a dual-channel gravity tilt unit, measuring static gravitational acceleration and converting it into tilt angle changes, thus determining the sensor's output roll and pitch angles relative to the horizontal plane. Users can choose RS232, RS485, or TTL level interfaces as the output method according to their needs. The product has a built-in MCU control system that performs secondary correction on the sensor output linearity, compensating for the accuracy loss caused by insufficient correction in analog sensors.

This product uses a non-contact measurement principle, providing real-time output of the current attitude tilt angle. It is easy to operate and does not require relocating two opposing surfaces for installation. This sensor is mainly suitable for angle measurement in static and slowly changing dynamic scenarios, possesses good resistance to external electromagnetic interference, and can operate stably for extended periods in harsh industrial environments.

Technical Characteristics

❖ Single/dual axis tilt measurement;

❖ Measurement range ±10～±90°selectable;

❖ Resolution 0.02°;

❖ Standard DC 5V power supply;

❖ IP67 protection rating.

Application Field

❖ Angle control for various engineering machinery ❖ Four-wheel alignment and control for automobiles

❖ Chassis measurement for automobiles ❖ Leveling of medical beds

❖ Monitoring of gimbal operation ❖ Satellite antenna positioning

Performance Parameters

Electrical Parameters

Interface Definition

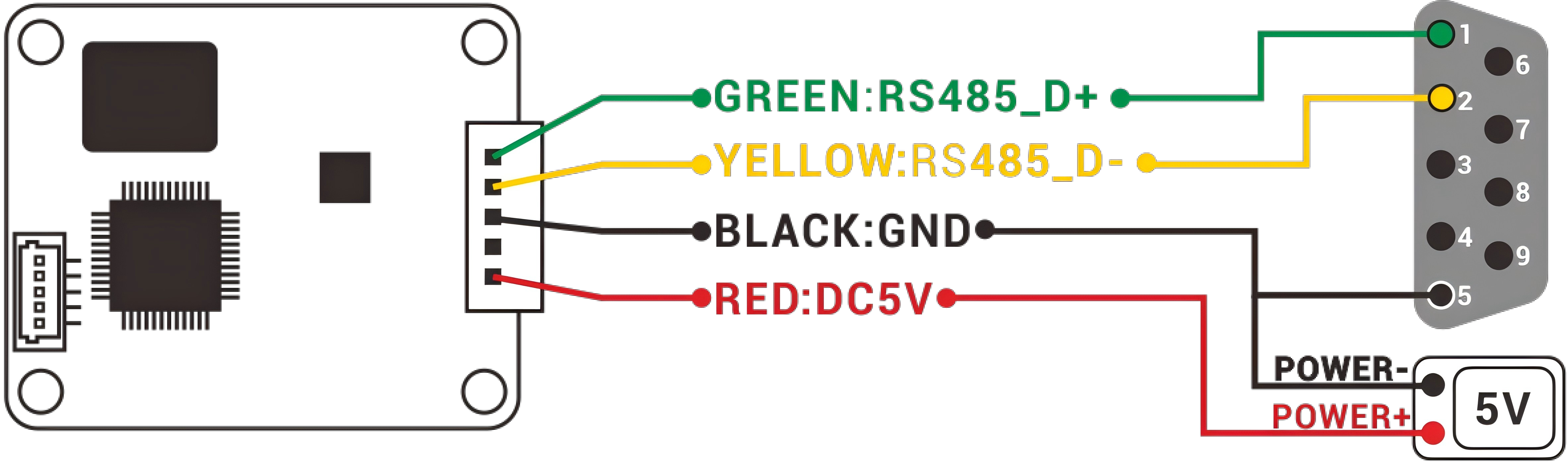

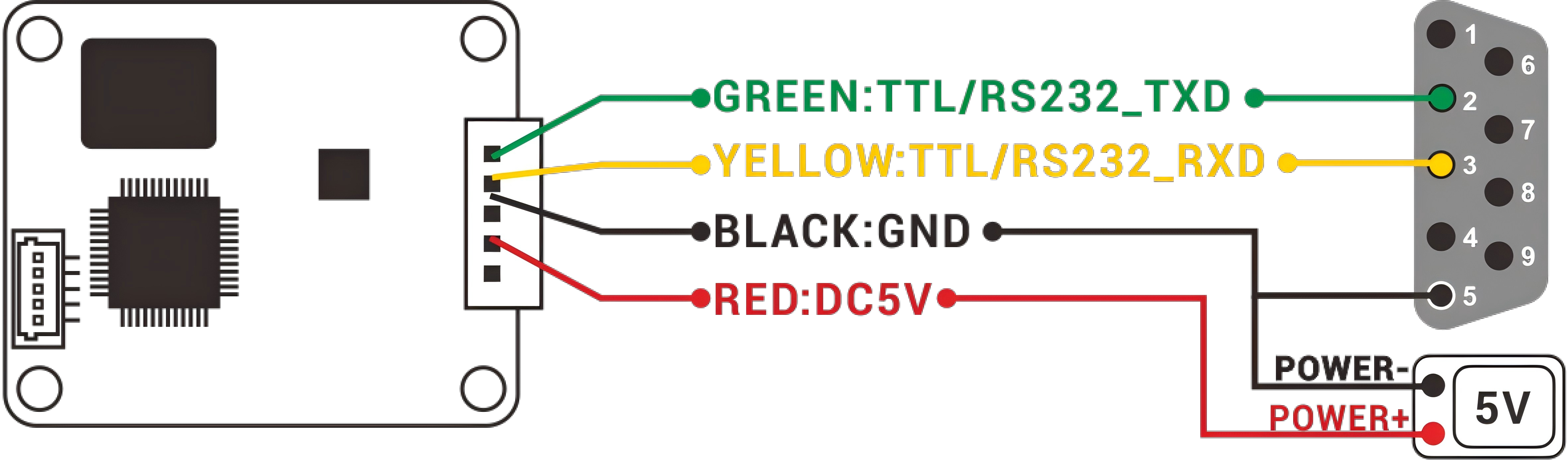

PCB board wiring definition

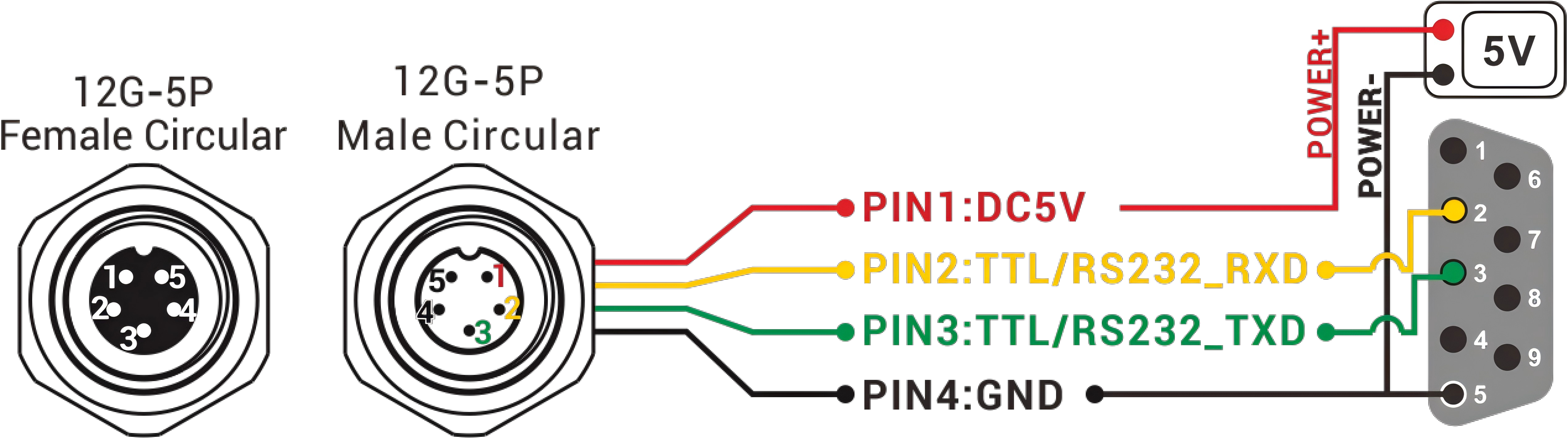

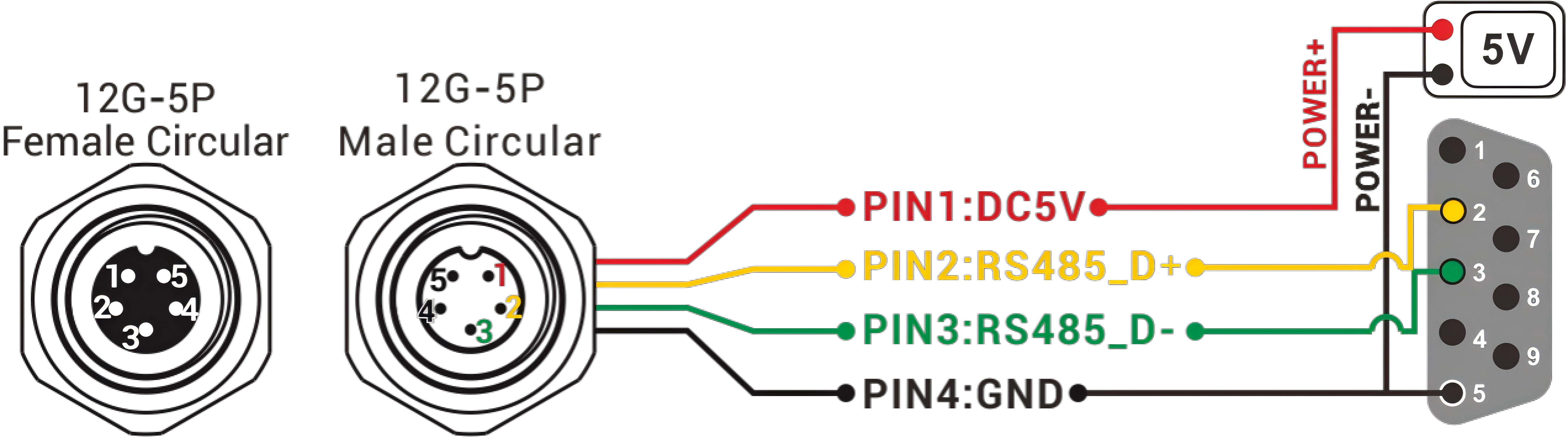

Enclosure Wiring Definition

Product Dimensions

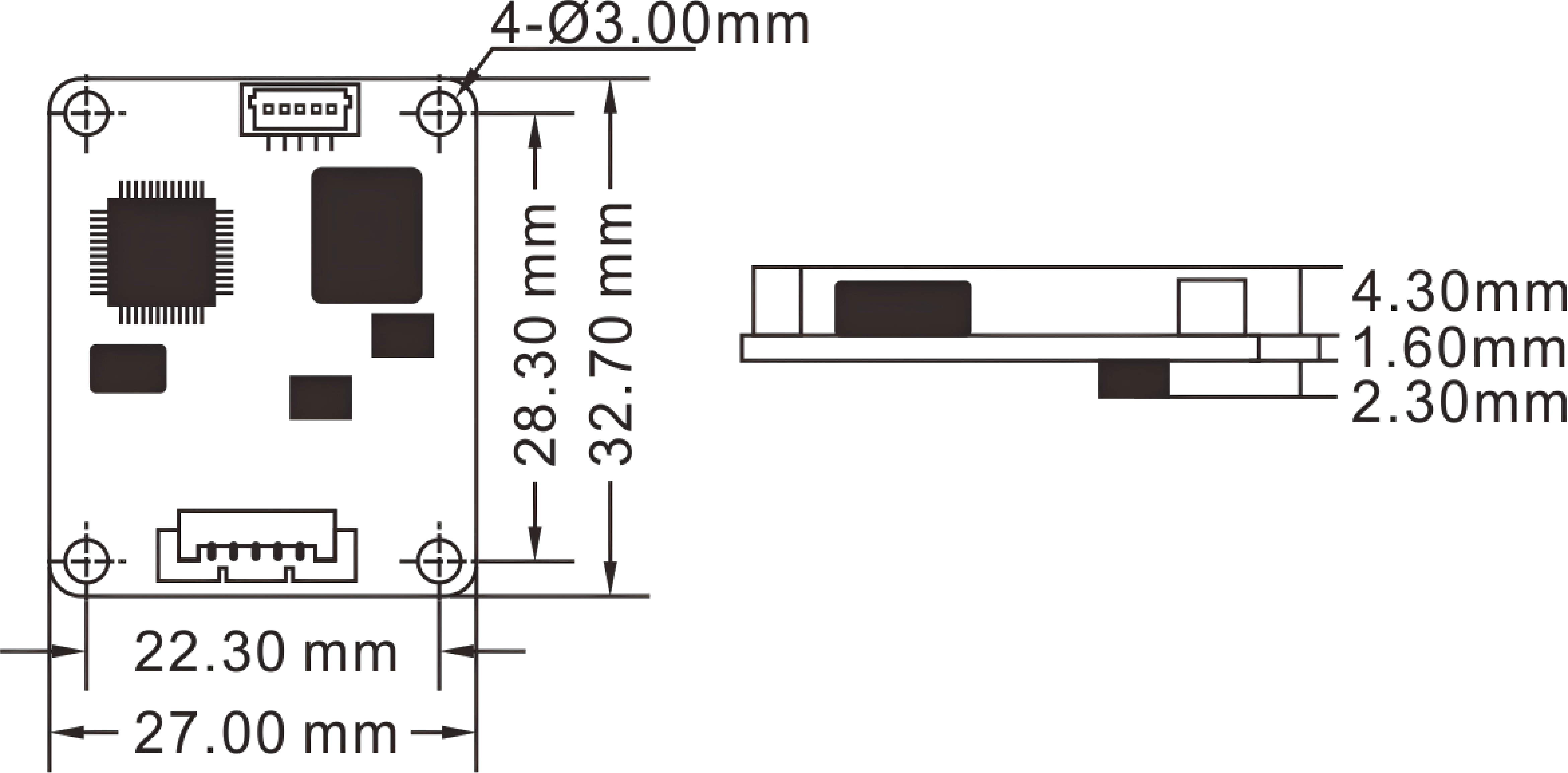

PCBA Board Dimensions

PCBA board dimensions: L33×W27×H8.2mm

Recommended screws: 4 M3 screws

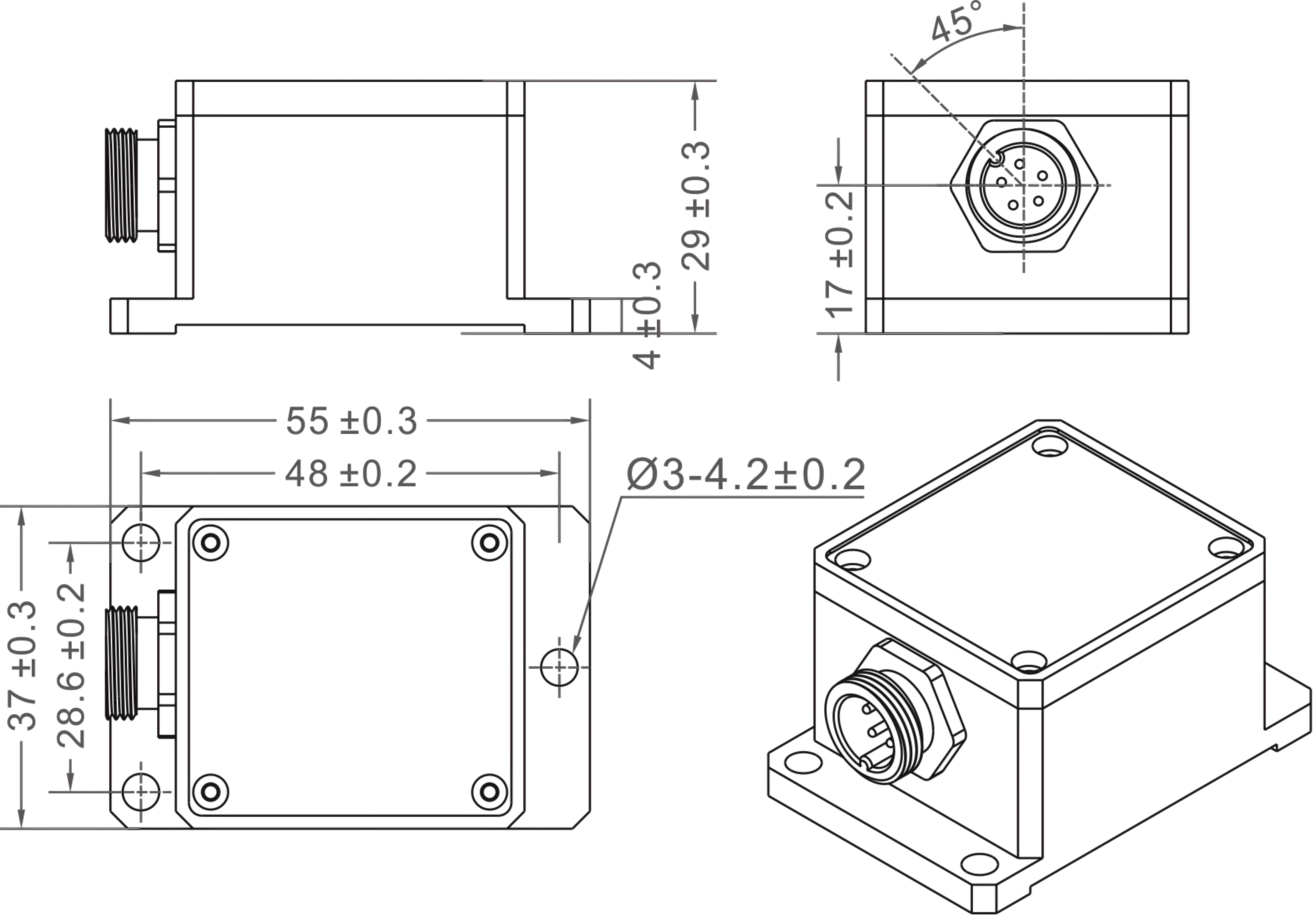

Housing package size

Case dimensions: L64.5×W50×H18.5mm

Recommended screws: 2 M4 screws
