The NTS series is a new generation of digital miniature MEMS tilt sensors developed by Ruicom Technology. It integrates a dual-channel Earth gravity tilt sensing unit, measuring static gravitational acceleration and converting it into tilt angle changes, thereby obtaining the sensor's output roll and pitch angles relative to the horizontal plane. This series supports multiple output protocols including CAN OPEN, CAN2.0A, and CAN2.0B. With the built-in MCU control system, the sensor output linearity is secondary-calibrated, effectively improving the accuracy loss caused by insufficient correction in analog products.

This product uses a non-contact measurement principle, providing real-time output of the current attitude tilt angle. It is easy to operate and does not require relocating two opposing mounting surfaces. Suitable for industrial automation control and attitude measurement scenarios, it possesses excellent resistance to external electromagnetic interference and is primarily suitable for static or slowly changing dynamic measurement environments. It is not suitable for rapidly changing dynamic conditions and can maintain long-term stable operation under harsh industrial conditions.

Technical Characteristics

❖ CANopen/CAN2.0A/CAN2.0B outputs selectable;

❖ Measurement range ±10～±90° selectable;

❖ Resolution 0.02°;

Application Field

❖ Angle control for various engineering machinery ❖ Four-wheel alignment and control for automobiles

❖ Chassis measurement for automobiles ❖ Leveling of medical beds

❖ Monitoring of gimbal operation ❖ Satellite antenna positioning

Performance Parameters

Electrical Parameters

Interface Definition

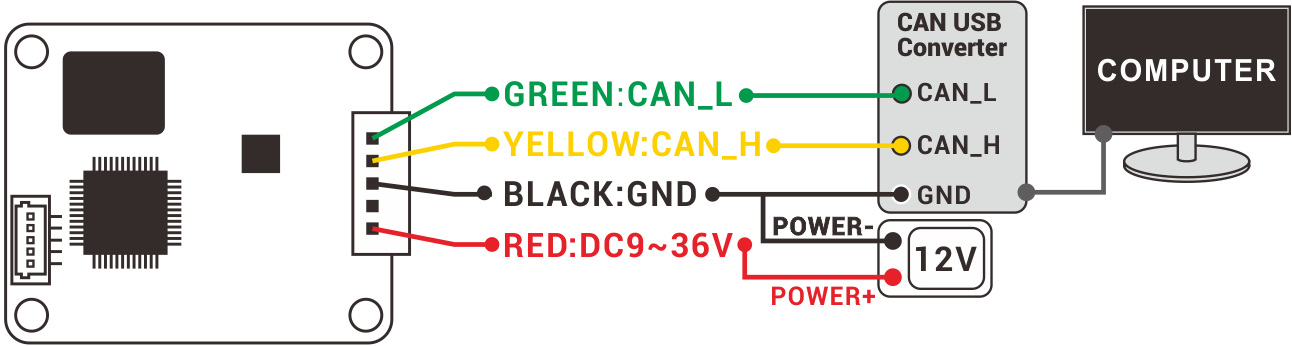

PCB board wiring definition

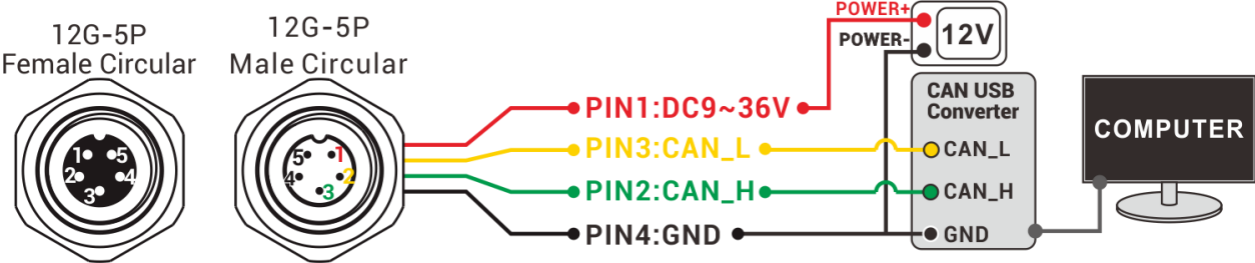

Housing/Enclosure Wiring Definitions

Product Dimensions

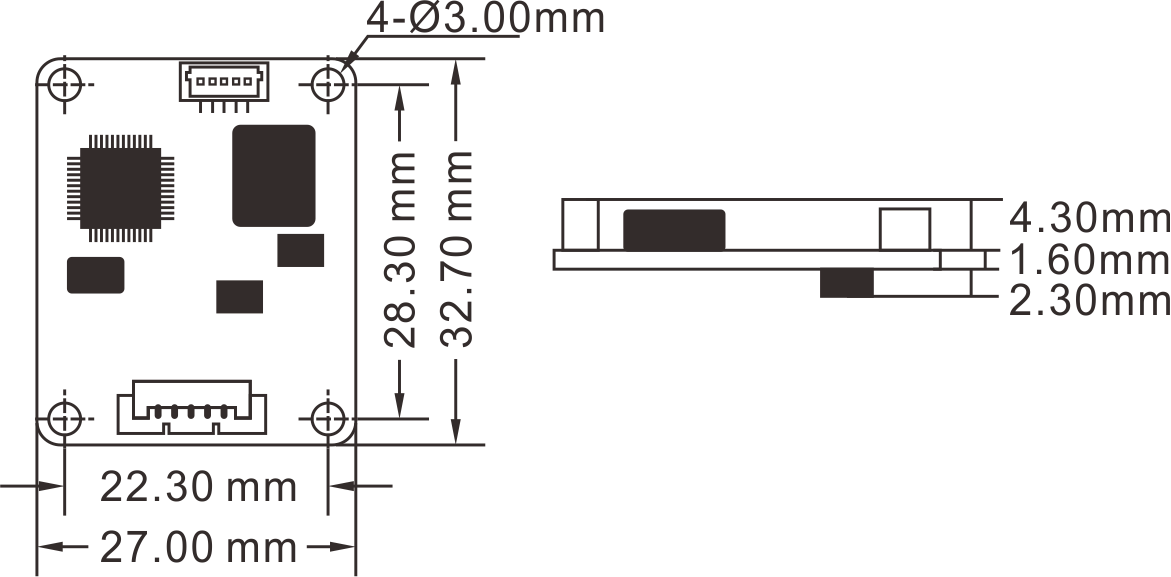

PCBA Board Dimensions

PCBA board dimensions: L33 × W27 × H8.2 mm

Recommended screws: 4 × M3 screws

Housing package size

Housing dimensions: L64.5 × W50 × H18.5 mm

Recommended screws: Two M4 screws
