HTS6

Condition

Parameter

Measurement Range

-

±10°

±30°

±60°

±90°

Measurement Axis

-

Single-axis / Dual-axis

Resolution¹⁾

-

0.001°

Measurement Accuracy²⁾

@25℃

0.005°

0.01°

0.01°

0.02°

Long-Term Stability

0.01°

0.02°

0.05°

0.08°

Zero-Point Temp Coefficient³⁾

-40~85℃

0.0005°/℃

Sensitivity Temp Coefficient⁴⁾

-40~85℃

≤50ppm/℃

≤50ppm/℃

≤50ppm/℃

≤100ppm/℃

Power-On Startup Time

0.5S

Response Frequency

20Hz

Output Rate

5Hz / 15Hz / 35Hz / 50Hz/ 100Hz optional

Output Signal

RS232 / RS485 / RS422 / TTL / MODBUS

EMC

According to EN61000 and GBT17626

Insulation Resistance

≥100 MΩ

Shock Resistance

100g@11ms, 3 Axial Direction (Half Sinusoid)

Vibration Resistance

10grms/10~1000Hz

Protection Class

IP67

Cables

Standard 2m cable, wire diameter 6.0~6.5mm, wire weight ＜ 155g

Weight

≤200g (excluding cable)

*The maximum range for a single axis is ±90°, and the maximum range for a dual axis is ±89.5°.

1) Resolution: The smallest angular change that can be detected within the effective measurement range, reflecting its ability to monitor minute tilt fluctuations.
2) Measurement Accuracy: A comprehensive evaluation of the sensor's performance indicators under standard ambient temperature, including the overall performance of linearity error, repeatability error, hysteresis error, zero-point offset error, and cross-axis sensitivity error.
3) Zero-Point Temperature Coefficient: The ratio of the sensor's output value to temperature when the sensor is in a zero-input state, defined as the ratio of the zero-point offset within the rated operating temperature range to the room temperature reference value.
4) Sensitivity Temperature Coefficient: A stability index of the sensor's full-scale output value with temperature changes, characterizing the drift rate of sensitivity relative to the room temperature reference value within the rated temperature range.

Parameter

Condition

Minimum Value

Typical Value

Maximum Value

Unit

Power Supply voltage

Standard

9

12

24

36

V

Customized

Other voltages

Operating current

No load

50

mA

Operating temp

-40

85

℃

Storage temp

-40

85

℃

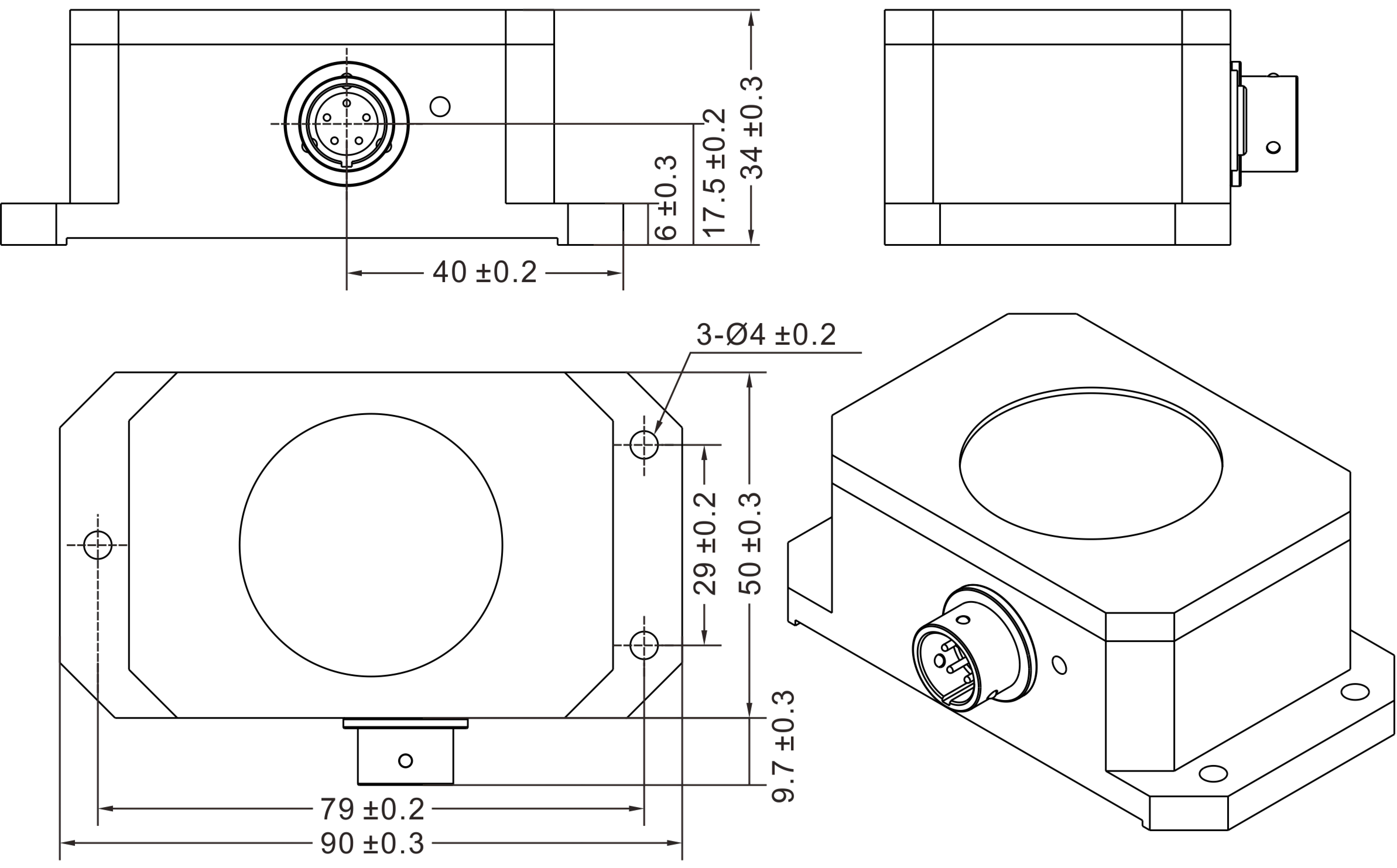

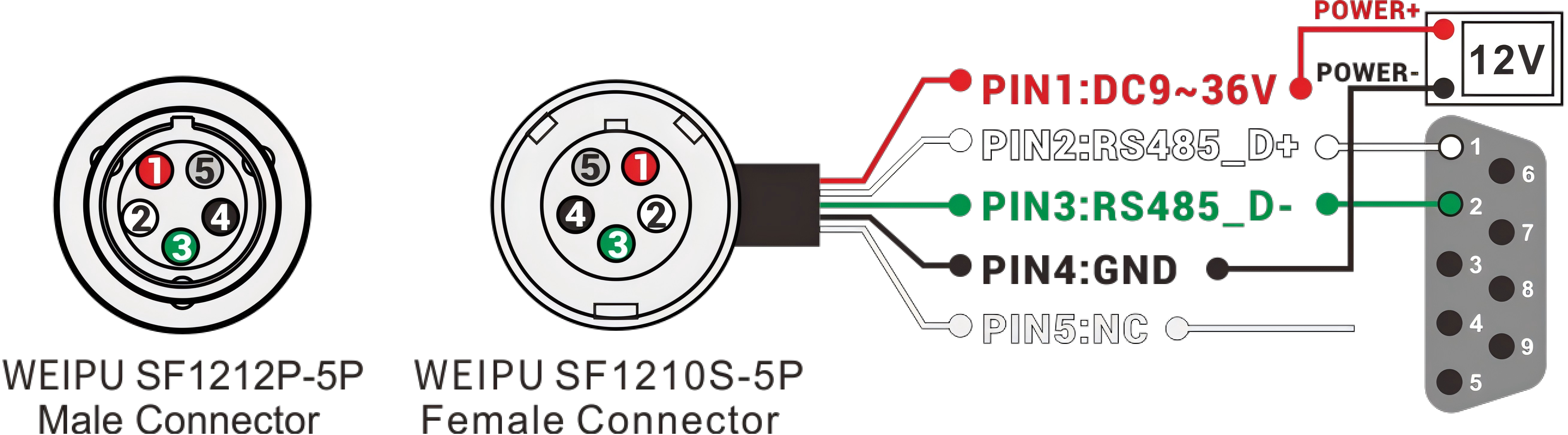

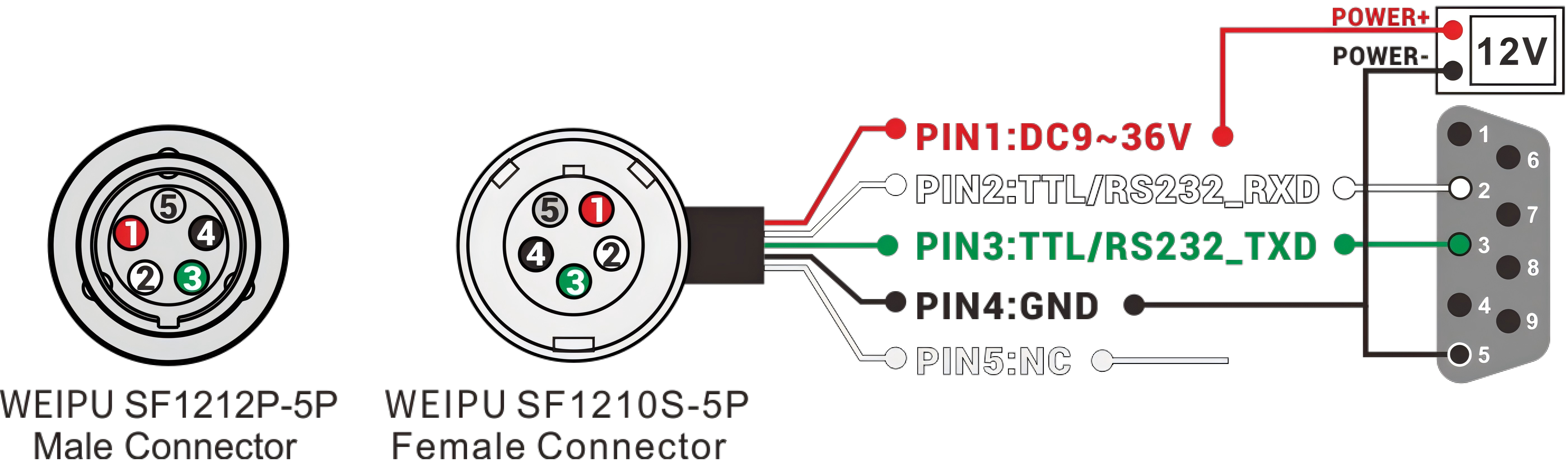

PIN/Thread Color

Definition

Description

PIN1 / Red

DC9~36V

Positive power supply

PIN2 / White

TTL/RS232_RXD / RS485_D+

Receive data

PIN3 / Green

TTL/RS232_TXD / RS485_D-

Transmit data

PIN4 / Black

GND

Negative power supply

PIN5 / - -

NC

No connection

PIN6 / - -

NC

No connection

PIN7 / - -

NC

No connection

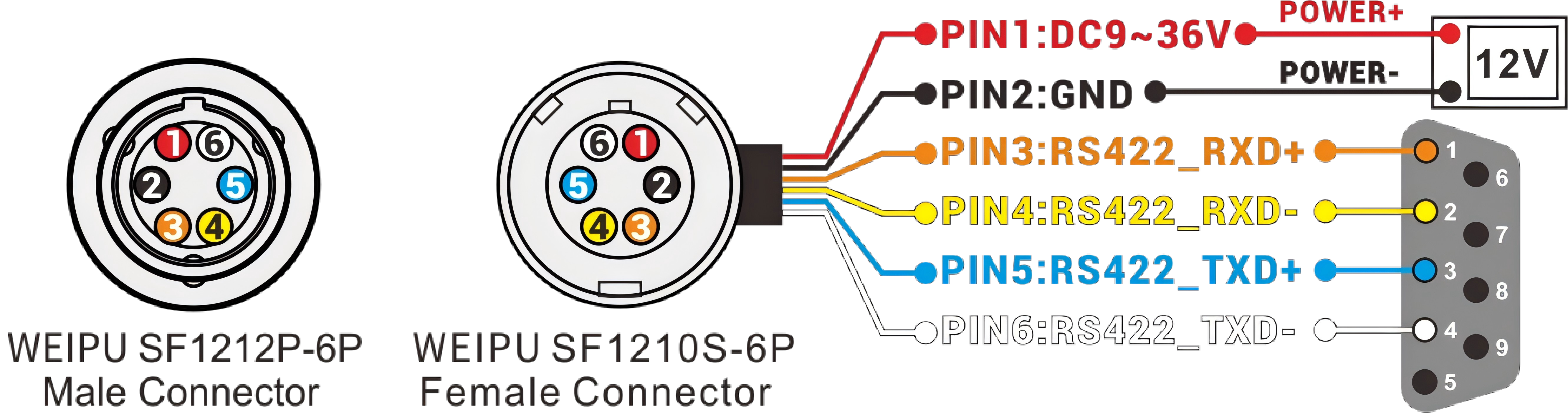

PIN/Thread Color

Definition

Description

PIN1 / Red

DC9~36V

Power supply positive terminal

PIN2 / Black

GND

Power supply negative terminal

PIN3 / Orange

RS422_RXD+

Receiver's positive signal line

PIN4 / Yellow

RS422_RXD-

Receiver's negative signal line

PIN5 / Blue

RS422_TXD+

Transmitter's positive signal line

PIN6 / White

RS422_TXD-

Transmitter's negative signal line

PIN7 / - -

NC

No connection
