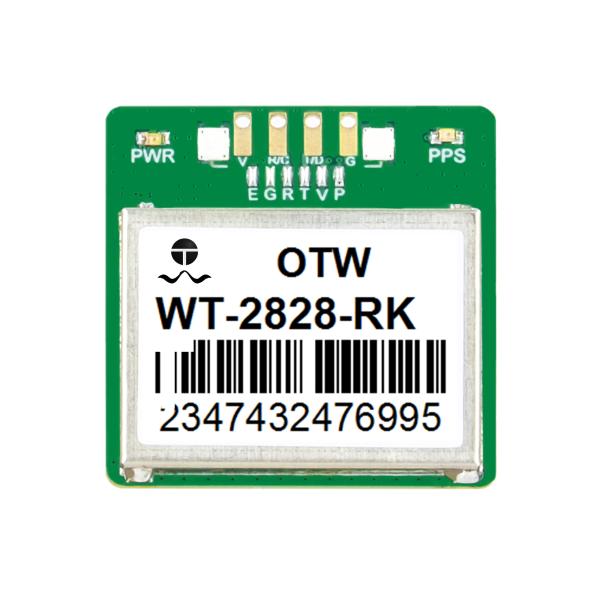

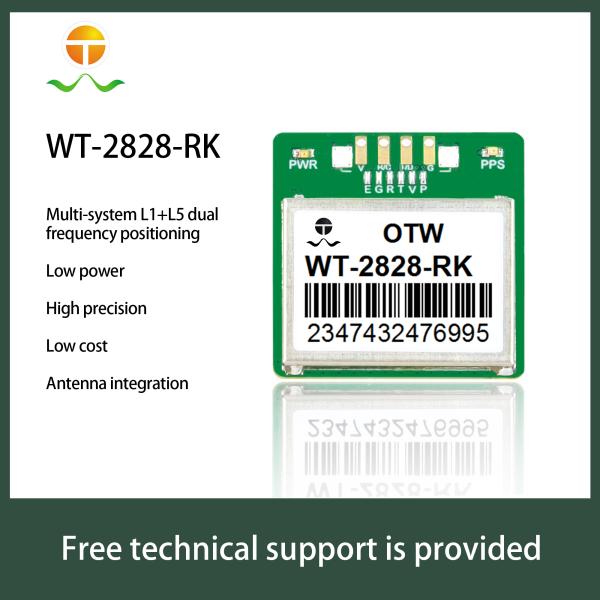

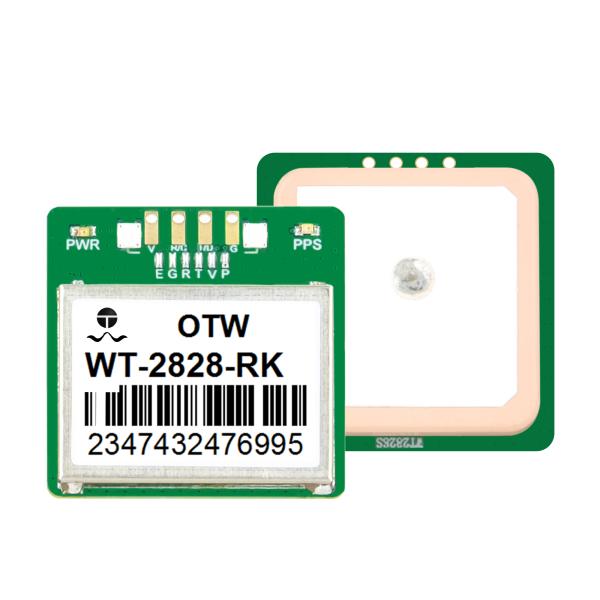

RTK GNSS Module GPS Antenna Centimeter Level Positioning
RTK GNSS Module GPS Antenna Centimeter Level Positioning
RTK GNSS Module GPS Antenna Centimeter Level Positioning
RTK GNSS Module GPS Antenna Centimeter Level Positioning
RTK GNSS Module GPS Antenna Centimeter Level Positioning
RTK GNSS Module GPS Antenna Centimeter Level Positioning
RTK GNSS Module GPS Antenna Centimeter Level Positioning
RTK GNSS Module GPS Antenna Centimeter Level Positioning
Specifications
Place of Origin :
China
Model Number :
WT-2828-RK
MOQ :
1
Price :
$11.80-13.88
Type :
GNSS Module
Country of Origin :
CHINA
Brand :
OTW
Chipset :
XX
Application :
Positioning, surveying and mapping, etc
Operating mode :
GPS+GLONASS+GALILEO+ BDS
Output Mode :
UART/TTL/R232/USB
Baud rate :
4800bps-921600bps,Default115200bps
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
0.25Hz-10Hz(default 1Hz)
Voltage :
3.0V to 5.0V
Power consumption :
35 mA @3.3V
Size :
28.3mm*28.3mm*7.5mm
Description

GPS Antenna RTK Module, Can Achieve Centimeter-level GNSS Module Positioning,gps Module Antenna Integration

RTK GNSS Module GPS Antenna Centimeter Level Positioning
RTK GNSS Module GPS Antenna Centimeter Level Positioning
Module performance
Model
WT-2828-RK
Receiver type
BDS:B1I/B1C & B2a
GPS/QZSS:L1C/A & L5
GLONASS:L1
Galileo:E1 & E5a
Arithmetic
Integration RTK
Agreement
NMEA-0183 compliant protocol or custom protocol
NMEA messages
RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate
4800bps~921600bps(default 115200bps)
Channel
128
Sensitivity
Tracking: -167dbm Capture: -160dbm Cold start -148dbm
Cold start
Average 28 seconds
Hot start
Average 1 seconds
Accuracy
Level 1cm+1ppm CEP50; Elevation 2cm+1ppm CEP50
Max Height
18000 m
Max Speed
515 m/s
Max Acceleration
≦ 4G
Regeneration frequency
0.25 Hz -10 Hz
Positioning mode
A-GNSS,Double frequency RTK
Port
Port
UART/TTL/R232/USB
Physical property
Type
1.25mm 6pins connector

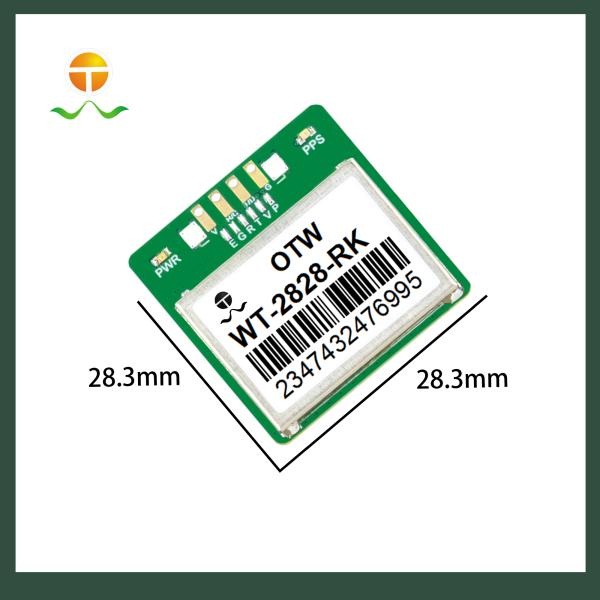

Size
28.3mm * 28.3mm * 7.5 mm (+/- 0.5mm)
Power supply
Voltage
3V~5V
Power Consume
35mA@3.3V
Oerating Environment
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 85℃
RTK GNSS Module GPS Antenna Centimeter Level Positioning
RTK GNSS Module GPS Antenna Centimeter Level Positioning
RTK GNSS Module GPS Antenna Centimeter Level Positioning
