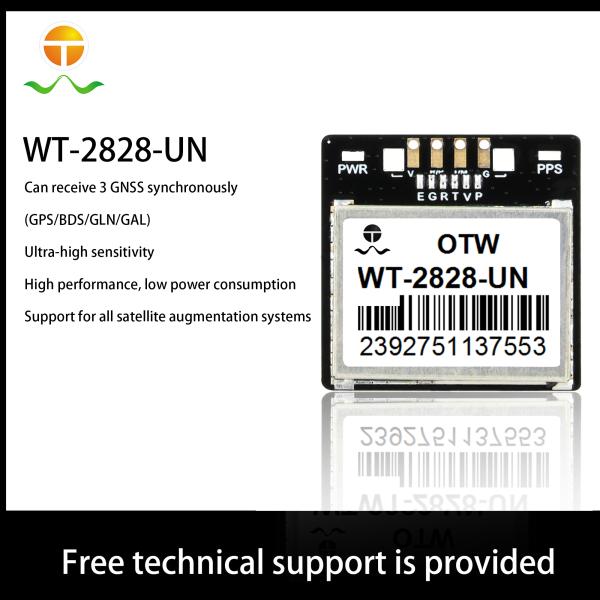

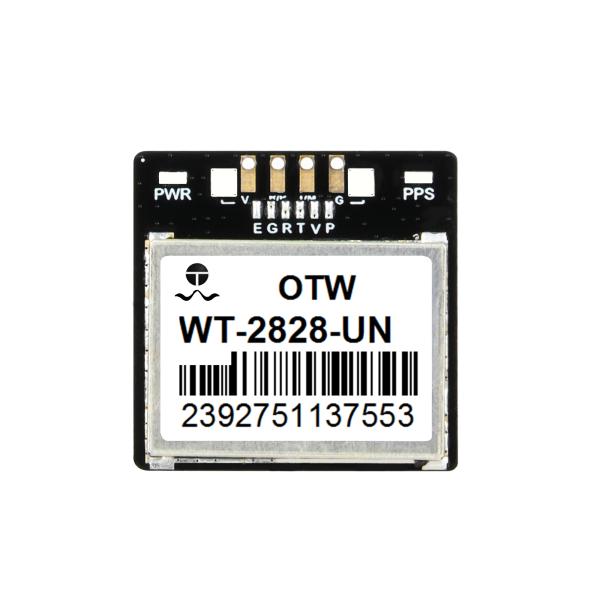

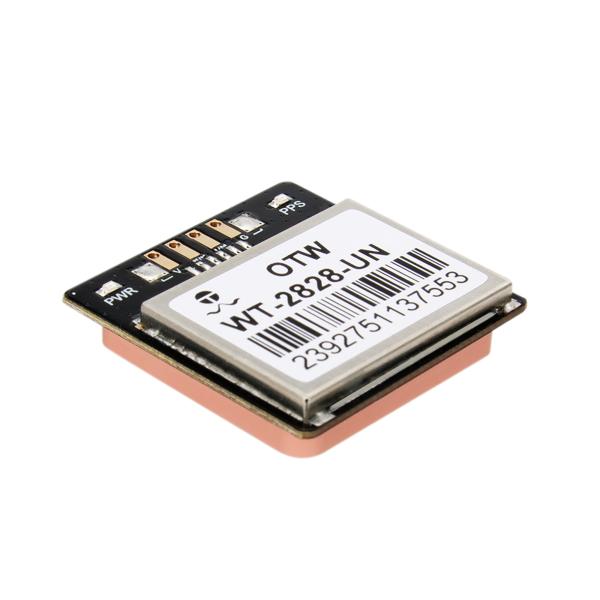

OTW GNSS Module GPS+GLONASS+GALILEO+BDS 3.0V-5.0V
OTW GNSS Module GPS+GLONASS+GALILEO+BDS 3.0V-5.0V
OTW GNSS Module GPS+GLONASS+GALILEO+BDS 3.0V-5.0V
OTW GNSS Module GPS+GLONASS+GALILEO+BDS 3.0V-5.0V
OTW GNSS Module GPS+GLONASS+GALILEO+BDS 3.0V-5.0V
OTW GNSS Module GPS+GLONASS+GALILEO+BDS 3.0V-5.0V
OTW GNSS Module GPS+GLONASS+GALILEO+BDS 3.0V-5.0V
OTW GNSS Module GPS+GLONASS+GALILEO+BDS 3.0V-5.0V
OTW GNSS Module GPS+GLONASS+GALILEO+BDS 3.0V-5.0V
OTW GNSS Module GPS+GLONASS+GALILEO+BDS 3.0V-5.0V
Specifications
Place of Origin :
China
Model Number :
WT-2828-UN
MOQ :
1
Price :
$8.80-10.88
Type :
GNSS Module
Country of Origin :
CHINA
Brand :
OTW
Chipset :
XX
Application :
Positioning, surveying and mapping, etc
Operating mode :
GPS+GLONASS+GALILEO+ BDS
Output Mode :
UART/TTL/R232/USB
Baud rate :
4800bps-921600bps,Default115200bps
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
1Hz-18Hz(default 1Hz)
Voltage :
3.0V to 5.0V
Power consumption :
35 mA @3.3V
Size :
28.3mm*28.3mm*7.5mm
Description

High Performance WT-2828-UN GNSS Receiver Module Real-Time GPS+GLONASS+GALILEO+BDS for Cars

OTW GNSS Module GPS+GLONASS+GALILEO+BDS 3.0V-5.0V
OTW GNSS Module GPS+GLONASS+GALILEO+BDS 3.0V-5.0V
Module performance
Model
WT-2828-UN
Receiver type
GPS/QZSS L1
GLONASS L1
BeiDou B1
Galileo E1
Agreement
NMEA-0183 compliant protocol or custom protocol
NMEA messages
RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate
4800bps~921600bps(default 115200bps)
Channel
72
Sensitivity
Tracking -167 dbm Hot start -157dBm Cold start -148dBm
Cold start
Average 26 seconds
Hot start
Average 1 seconds
Accuracy
Horizontal accuracy 2.0m
Velocity: 0.1m /s
Timepulse signal: RMS 30 ns
Max Height
18000 m
Max Speed
500 m/s
Max Acceleration
≦ 4G
Regeneration frequency
1Hz -18 Hz
Positioning mode
A-GNSS
Port
Port
UART/TTL/R232/USB
Physical property
Type
1.25mm 6pins connector
Size
28.3mm * 28.3mm * 7.5 mm (+/- 0.5mm)
Power supply
Voltage
3V~5V
Power Consume
35mA@3.3V
Oerating Environment
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 105℃
Storage Temperature
-40℃ to 125℃
