Specifications
Place of Origin :
China
Model Number :
WT-2828-M10
MOQ :
1
Price :
$9.80-11.88
Type :
GNSS Module
Country of Origin :
CHINA
Brand :
OTW
Chipset :
M10050
Application :
Positioning, surveying and mapping, etc
Operating mode :
GPS+GLONASS+GALILEO+ BDS
Output Mode :
UART/TTL/R232/USB
Baud rate :
4800bps-921600bps,Default38400bps
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
0.25Hz-10Hz(default 1Hz)
Voltage :
3.0V to 5.0V
Power consumption :
35 mA @3.3V
Size :
28.3mm*28.3mm*7.5mm
Description

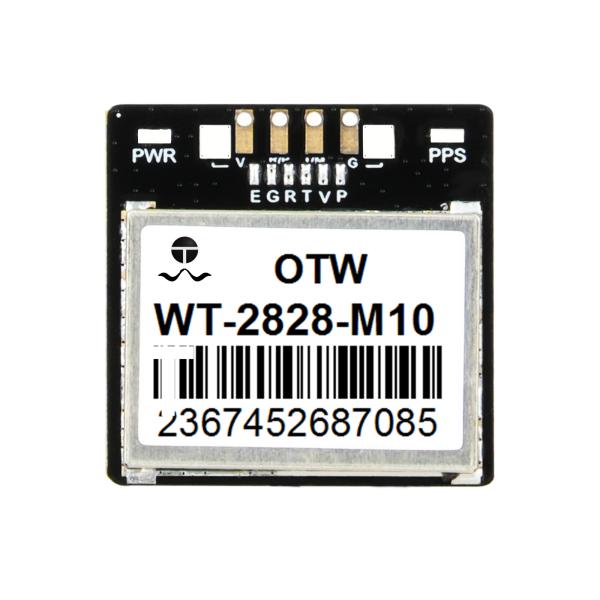

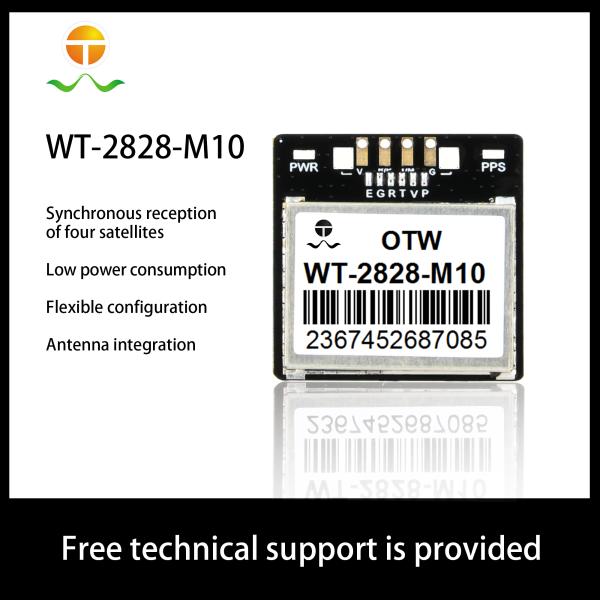

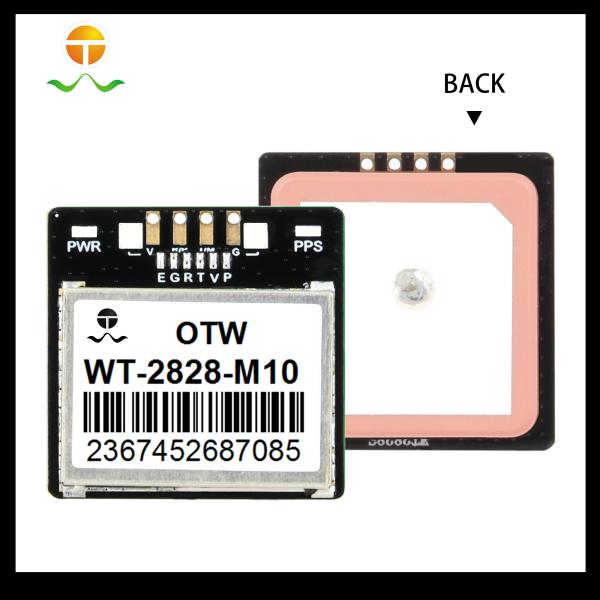

High Precision M10 Chip Integrated GPS Antenna Receiver Ceramic Patch Antenna for UAV Positioning IoT Application

M10 GNSS Module GPS Antenna Receiver for UAV IoT Positioning
M10 GNSS Module GPS Antenna Receiver for UAV IoT Positioning
Module performance
Chip
M10050
Receiver type
GPS/QZSS :L1C/A (1575.42MHz)
Galileo:E1-B/C (1575.42MHz)
GLONASS:L1OF (1602MHz+k*562.5kHz,k= -7,....,5,6)
BeiDou:B1|(1561.098MHz)
Agreement
NMEA-0183 compliant protocol or custom protocol
NMEA messages
RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate
4800bps~921600bps(default 38400bps)
Sensitivity
Tracking: -167dbm Capture: -160dbm Cold start -148dbm
Cold start
Average 29 seconds
Hot start
Average 1 seconds
Accuracy
Horizontal Position : average, SBAS < 2.0m
Max Height
18000 m
Max Speed
500 m/s
Max Acceleration
≦ 4G
Regeneration frequency
0.25 Hz -10 Hz
Port
Port
UART/TTL/R232/USB
Physical property
Type
1.25mm 6pins connector

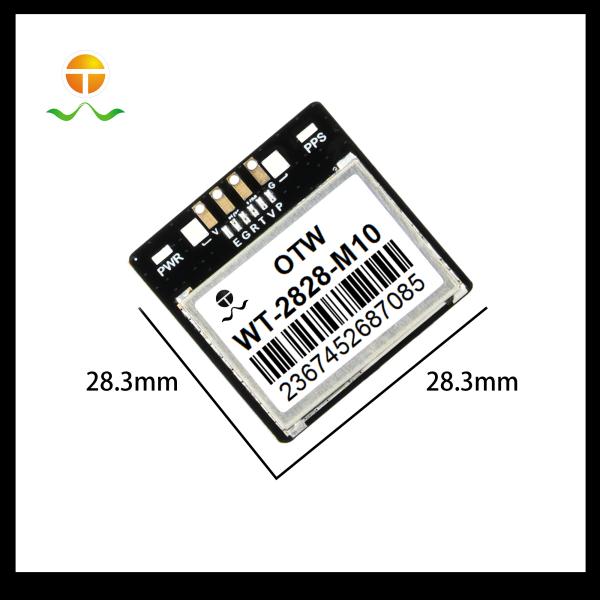

Size
28.3mm * 28.3mm * 7.5 mm (+/- 0.5mm)
Power supply
Voltage
3V~5V
Power Consume
35mA@3.3V
Oerating Environment
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 85℃
