OTW Ceramic GPS Module GNSS for RTK Surveying GPS+GLONASS+GALILEO+BDS
OTW Ceramic GPS Module GNSS for RTK Surveying GPS+GLONASS+GALILEO+BDS
OTW Ceramic GPS Module GNSS for RTK Surveying GPS+GLONASS+GALILEO+BDS
OTW Ceramic GPS Module GNSS for RTK Surveying GPS+GLONASS+GALILEO+BDS
OTW Ceramic GPS Module GNSS for RTK Surveying GPS+GLONASS+GALILEO+BDS
OTW Ceramic GPS Module GNSS for RTK Surveying GPS+GLONASS+GALILEO+BDS
OTW Ceramic GPS Module GNSS for RTK Surveying GPS+GLONASS+GALILEO+BDS
OTW Ceramic GPS Module GNSS for RTK Surveying GPS+GLONASS+GALILEO+BDS
Specifications
Place of Origin :
China
Model Number :
WT-2828-RD
MOQ :
1
Price :
$8.40-8.80
Type :
GNSS Module
Country of Origin :
CHINA
Brand :
OTW
Chipset :
XX
Application :
Positioning, surveying and mapping, etc
Operating mode :
GPS+GLONASS+GALILEO+ BDS
Output Mode :
UART/TTL/R232/USB
Baud rate :
4800bps-921600bps,Default115200bps
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
0.25Hz-10Hz(default 1Hz)
Voltage :
3.0V to 5.0V
Power consumption :
35 mA @3.3V

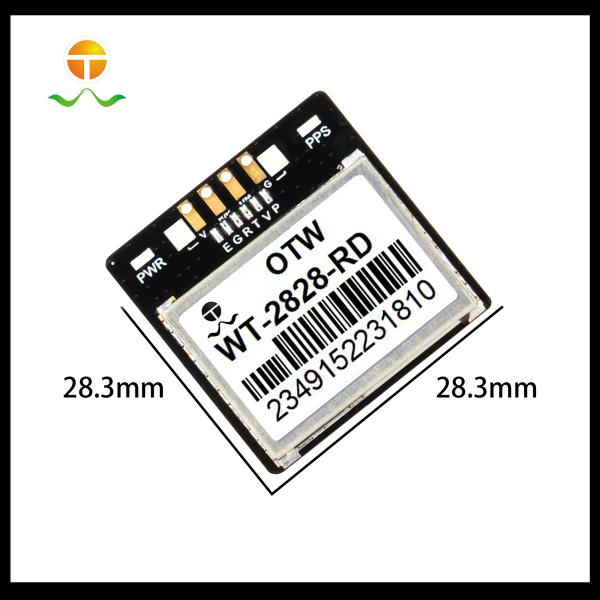

Size :
28.3mm*28.3mm*7.5mm
Description

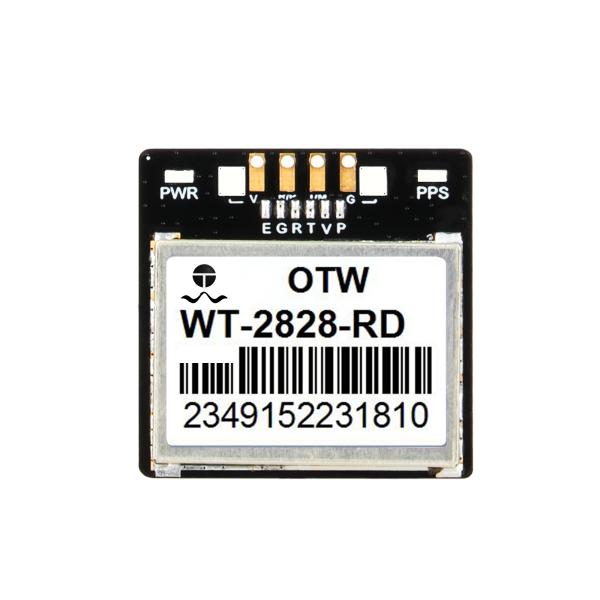

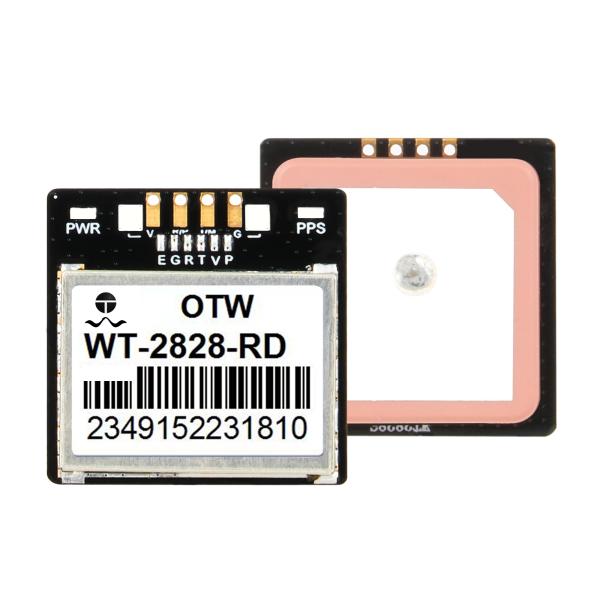

WT-2828-RD Ceramic GPS Modules GNSS Type for RTK Base and Rover Surveying Instruments High Performance GPS Rtk Modules

OTW Ceramic GPS Module GNSS for RTK Surveying GPS+GLONASS+GALILEO+BDS
OTW Ceramic GPS Module GNSS for RTK Surveying GPS+GLONASS+GALILEO+BDS
Module performance
Model
WT-2828-RD
Receiver type
BDS:B1I/B1C & B2a
GPS/QZSS:L1C/A & L5
GLONASS:L1
Galileo:E1 & E5a
Arithmetic
Integrated dual frequencyRTK+DR Fusion positioning algorithm
Agreement
NMEA-0183 compliant protocol or custom protocol
NMEA messages
RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate
4800bps~921600bps(default 115200bps)
Channel
128
Sensitivity
Tracking: -167dbm Capture: -160dbm Cold start -148dbm
Cold start
Average 28 seconds
Hot start
Average 1 seconds
Accuracy
Level 1cm+1ppm CEP50; Elevation 2cm+1ppm CEP50
Max Height
18000 m
Max Speed
515 m/s
Max Acceleration
≦ 4G
Regeneration frequency
0.25 Hz -10 Hz
Positioning mode
A-GNSS,Dual frequencyRTK+DR Fusion positioning
Port
Port
UART/TTL/R232
Physical property
Type
1.25mm 6pins connector
Size
28.3mm * 28.3mm * 7.5 mm (+/- 0.5mm)
Power supply
Voltage
3V~5V
Power Consume
35mA@3.3V
Oerating Environment
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 85℃
OTW Ceramic GPS Module GNSS for RTK Surveying GPS+GLONASS+GALILEO+BDS
OTW Ceramic GPS Module GNSS for RTK Surveying GPS+GLONASS+GALILEO+BDS
OTW Ceramic GPS Module GNSS for RTK Surveying GPS+GLONASS+GALILEO+BDS
