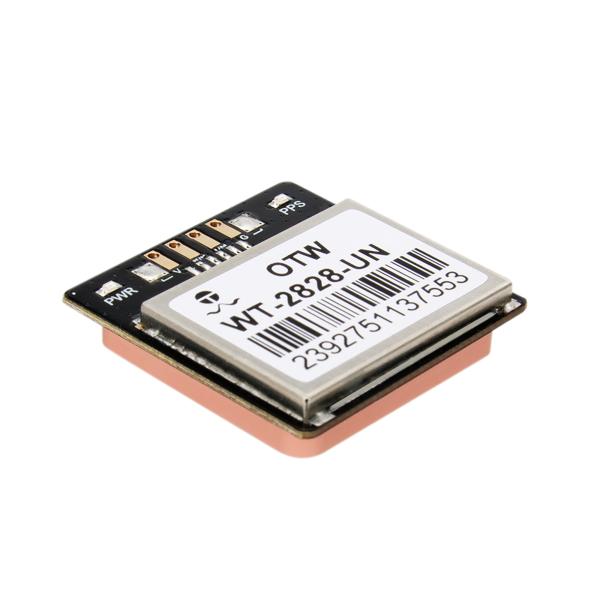

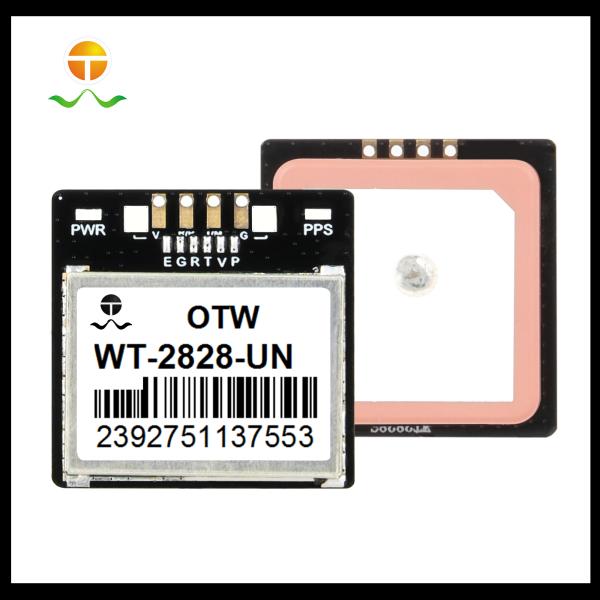

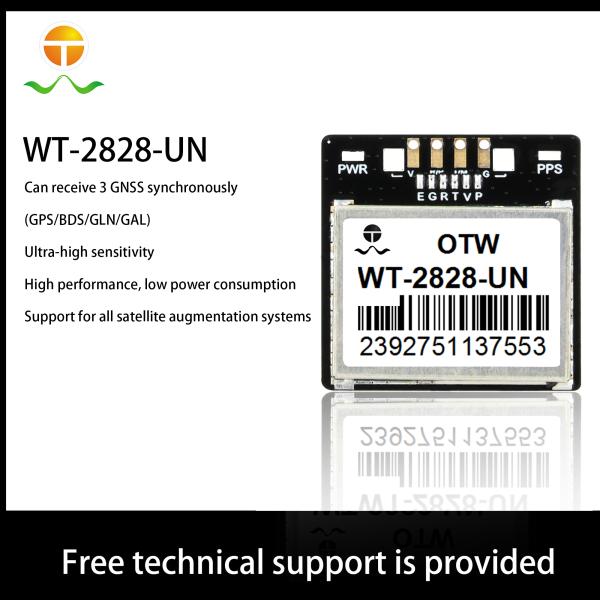

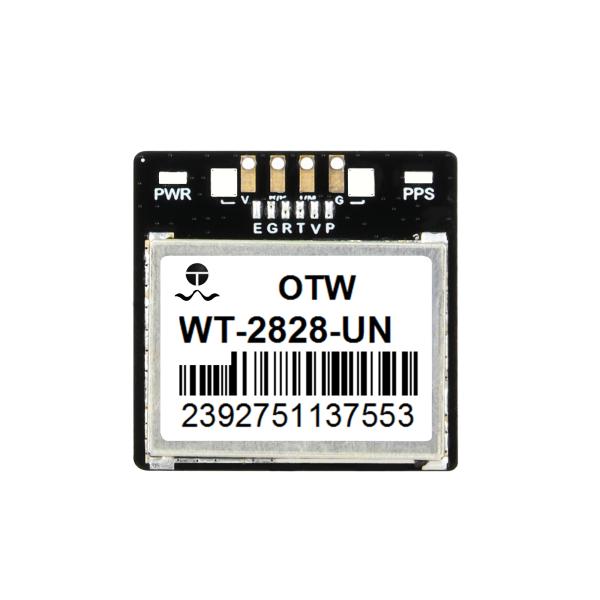

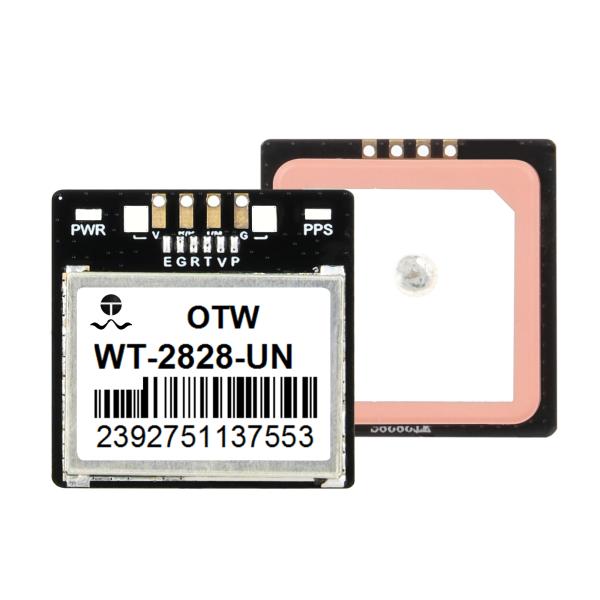

OTW GNSS Module GPS QZSS GLONASS 1Hz-18Hz High Gain Patch
OTW GNSS Module GPS QZSS GLONASS 1Hz-18Hz High Gain Patch
OTW GNSS Module GPS QZSS GLONASS 1Hz-18Hz High Gain Patch
OTW GNSS Module GPS QZSS GLONASS 1Hz-18Hz High Gain Patch
OTW GNSS Module GPS QZSS GLONASS 1Hz-18Hz High Gain Patch
OTW GNSS Module GPS QZSS GLONASS 1Hz-18Hz High Gain Patch
OTW GNSS Module GPS QZSS GLONASS 1Hz-18Hz High Gain Patch
OTW GNSS Module GPS QZSS GLONASS 1Hz-18Hz High Gain Patch
OTW GNSS Module GPS QZSS GLONASS 1Hz-18Hz High Gain Patch
OTW GNSS Module GPS QZSS GLONASS 1Hz-18Hz High Gain Patch
OTW GNSS Module GPS QZSS GLONASS 1Hz-18Hz High Gain Patch
OTW GNSS Module GPS QZSS GLONASS 1Hz-18Hz High Gain Patch
Specifications
Place of Origin :
China
Model Number :
WT-2828-UB
MOQ :
1
Price :
$7.98-9.88
Type :
GNSS Module
Country of Origin :
CHINA
Brand :
OTW
Chipset :
XX
Application :
Positioning, surveying and mapping, etc
Operating mode :
GPS/QZSS+GLONASS
Output Mode :
UART/TTL/R232/USB
Baud rate :
4800bps-921600bps,Default115200bps
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
1Hz-18Hz(default 1Hz)
Voltage :
3.0V to 5.0V
Power consumption :
35 mA @3.3V

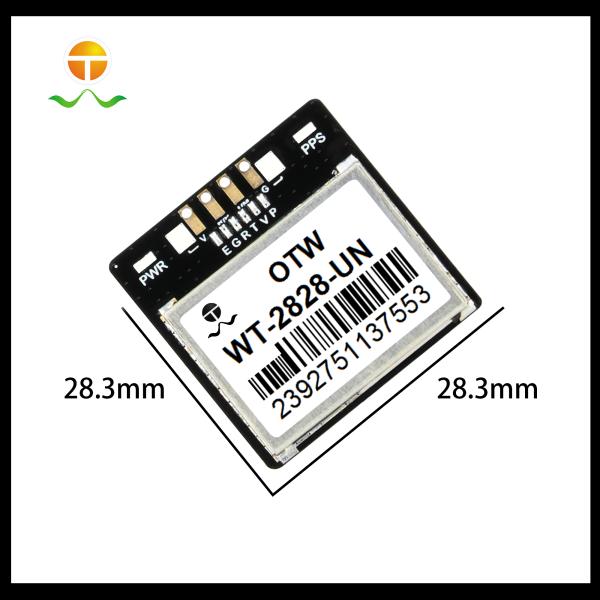

Size :
28.3mm*28.3mm*7.5mm
Description

GPS Antenna Integrated High Gain Patch Positioning Module Receiver Type QZSS GLONASS GNSS Multiple Specifications Available


Module performance
Model
WT-2828-UB
Receiver type
GPS/QZSS L1
GLONASS L1
Agreement
NMEA-0183 compliant protocol or custom protocol
NMEA messages
RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate
4800bps~921600bps(default 115200bps)
Channel
56
Sensitivity
Tracking -162 dbm Hot start -157dBm Cold start -148dBm
Cold start
Average 29 seconds
Hot start
Average 1 seconds
Accuracy
Horizontal accuracy 2.5m

Velocity: 0.1m /s

Timepulse signal: RMS 30 ns
Max Height
18000 m
Max Speed
500 m/s
Max Acceleration
≦ 4G
Regeneration frequency
1Hz -18 Hz
Positioning mode
A-GNSS
Port
Port
UART/TTL/R232/USB
Physical property
Type
1.25mm 6pins connector
Size
28.3mm * 28.3mm * 7.5 mm (+/- 0.5mm)
Power supply
Voltage
3V~5V
Power Consume
35mA@3.3V
Oerating Environment
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 85℃
