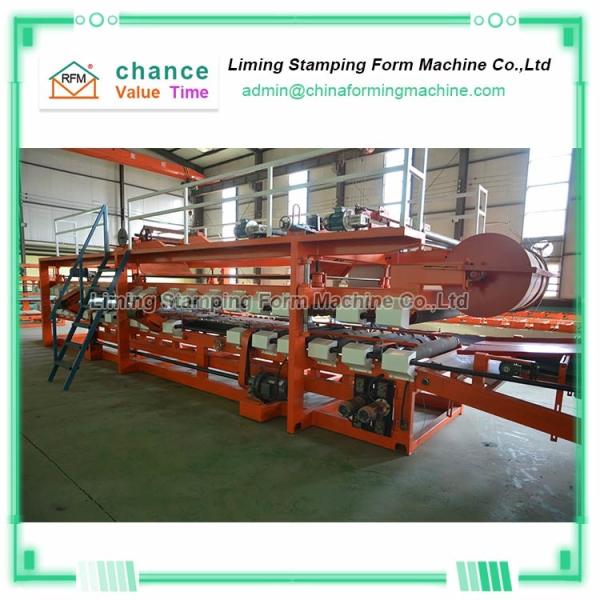

EPS Sandwich Panel Roll Forming Machine
EPS Sandwich Panel Roll Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-sandwich13
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Applicable Industries: :
Building Material Shops, Manufacturing Plant, Construction works
After Warranty Service: :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Power: :
3KW-20.5KW
Control mode: :
PLC
Warranty :
2 years
Rolling thinckness: :
0.3-0.8mm
Dimension(L*W*H): :
5m*1.3m*1.3m-15m*1.3m*1.4m
Working speed: :
10-14m/min
Material: :
EPS,Pre-printed steel coil,galvanized coil,Aluminum coil
Description

Automatic Precast EPS Sandwich Wall Panel Roll Forming Machine

"Automatic precast EPS sandwich wall panel roll forming machine" can be designed and modified according to the needs of users to meet the needs of different users.

"Automatic precast EPS sandwich wall panel roll forming machine" adopts frequency conversion speed regulation and can automatically cut off according to the preset length of the sandwich panel.

"Automatic precast EPS sandwich wall panel roll forming machine" adopts outsourcing rubber roller horizontal composite material to protect the color steel plate paint surface and the pressure compound of the sandwich panel.

"Automatic precast EPS sandwich wall panel roll forming machine" adopts the outsourcing rubber roller horizontal composite to protect the color steel plate paint surface and the pressure composite of the sandwich panel.

"Automatic precast EPS sandwich wall panel roll forming machine" adopts high-quality thickened rectangular steel welding, and performs rust removal, polishing, planing and aging treatment.

"Automatic precast EPS sandwich wall panel roll forming machine" Applicable core board: releasable polystyrene foam board, rock wool board.

Technical parameters of Automatic Precast EPS Sandwich Wall Panel Roll Forming Machine

No. Item Specification
1 Can Formed Material PPGI,GI,AI
2 Equipment operation Automatic
3 Voltage 380V 60Hz 3Phase or as your requirement
4 Thickness of sheet (mm) 0.3-0.8mm
5 Material width(mm) As your requirement
6 Cover Width of the sheet after formed as your drawing
7 The size of the roll forming machine 7200mmx1600mmx1500mm
8 Speed 5-12m/min
9 Diameter of shaft 75mm
10 Weight of the Machine 4500-5000KGS
11 Material of rollers 45# steel quenched and chromed
12 Motor brand Siemens or Guomao
13 PLC Siemens or Delta or Mitsubushi
14 Total power (kw) 32kw
15 Power of hydraulic system 15kw
16 Power of main molding core 15kw
