5m/min Sandwich Panel Production Line Easy Operate
5m/min Sandwich Panel Production Line Easy Operate
Specifications
Brand Name :
LIMING
Model Number :
LM-sandwich4
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Place of Origin: :
Hebei, China
Tile Type: :
Colored Glaze
Production Capacity: :
4-5m/min
After Warranty Service: :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Warranty :
2 years
Rolling thinckness: :
0.2-0.8mm
Key Selling Points: :
Easy to Operate
cutting blade material:: :
Cr12
Machinery Test Report: :
Provided
Description

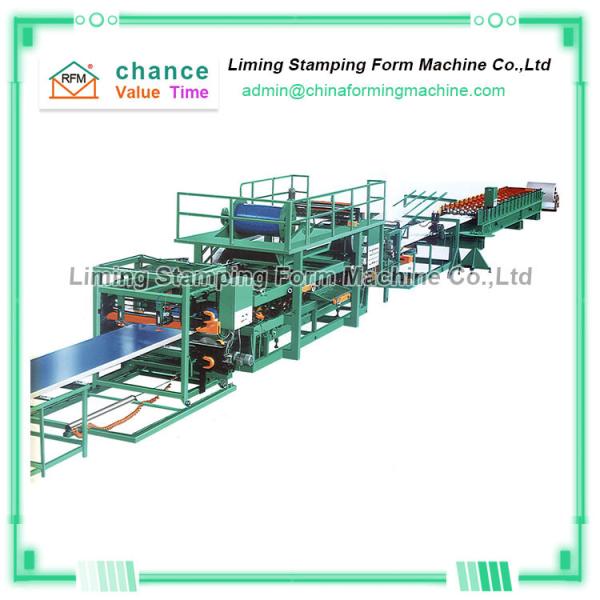

High Strength Foam Sandwich Panel Roll Forming Machine

"High strength foam sandwich panel roll forming machine" is a special production equipment for new building materials. Its main function is to compound colored steel on thicker and lighter core material EPS (polystyrene/foam) board or rock wool board.

1. Calibration equipment: "High strength foam sandwich panel roll forming machine" is equipped with two sets of calibration equipment. The upper correction mechanism adopts a large-diameter stainless steel drum with adjustable width. The lower correction device adopts thread adjustment, which is quick and easy.

2. Electric heating device: The host of the "High strength foam sandwich panel roll forming machine"is equipped with 6 sets of infrared electric heating devices, so that the equipment can produce high-quality composite panels at a lower temperature.

3. Dust collection device: "High strength foam sandwich panel roll forming machine" uses an exhaust fan to suck the wood chips into the dust collection device during the production process.

4. Electrical control device: The electrical control of the main machine of the "High strength foam sandwich panel roll forming machine" consists of an AC contactor and a frequency converter. The speed of the host and glue pump is controlled by frequency conversion. It can also form a synchronization mechanism with the corrugator to achieve speed uniformity between the two. Provide guarantee for the production of high-quality products.

Technical parameters of High Strength Foam Sandwich Panel Roll Forming Machine

Main technical parameter
Size: 45000mmx4500mmx2700mm
Working speed: 4500mm/min
Total power: 32KW
Working voltage: 380V
Density of EPS : > 18kg/m3
Suitable thickness of panel: 0.3-0.8mm
Thickness of inner side: 20-30mm
Core material: EPS, Rock wool
Suitable working temperature: about 25 °C
Feature and usage:
1. Operation speed of Sandwich Panel production line is steeples computer-controlled to realize the stable operation speed and simple operation of the production line.
2. Length of the Sandwich Panel production line can be controlled by the computer system based on the user’s requirements. The computer system has precise orientation and has timed display on the touch screen. And it has automatic counting and correcting.
3. Multiple functions: Besides corrugated sandwich panels, this line can be used to produce simple corrugated sheets, and sandwich panels.
4. Shapes of the corrugated compound plates can be designed and modified according to user's requirements so as to satisfy needs of different users.
5. It is the necessary equipment for producing the roof panels and wallboards for factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, civil construction, stadium, cold storage, etc
