House Construction Foam Composite Board Sandwich Panel Line For 1200mm
House Construction Foam Composite Board Sandwich Panel Line For 1200mm
Specifications
Brand Name :
LIMING
Model Number :
LM-sandwich11
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
35work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Applicable Industries: :
Building Material Shops, Manufacturing Plant, Construction works
After Warranty Service: :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Coil Weight: :
6.5Ton
Size of sheet: :
1200mm
Warranty :
2 years
Raw material: :
PPGI PPGL GI GL
Rolling thinckness: :
0.3-0.8mm
Dimension(L*W*H): :
30000*3000*2800mm
Shaft material: :
45# Steel
PLC: :
DETLA
Description

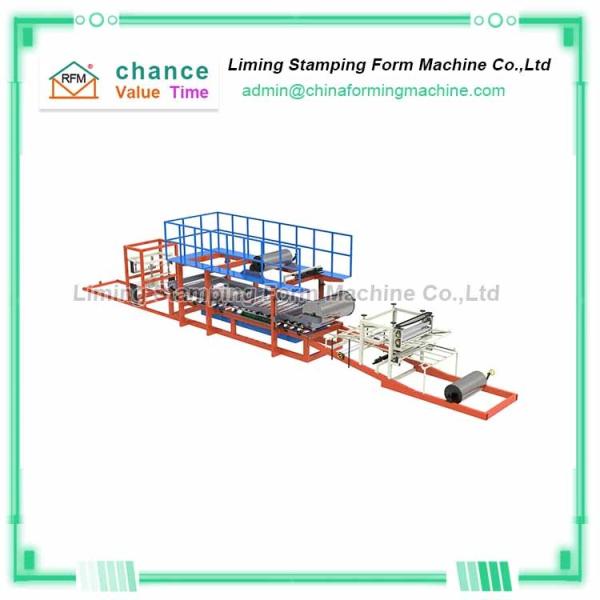

Simple house construction, easy to install foam composite board forming machine

Foam composite board is a new type of building material. The inner and outer layers are weather-resistant colored building steel plates, and the middle is filled with thermal insulation and sound insulation materials such as rock wool, polystyrene, polyurethane and glass wool. It is an irreplaceable equipment for the construction of industrial plants, warehouses and other room panels and simple houses. So if you need to produce foam composite panels, we can provide you with a foam composite panel forming machine.

The foam composite board forming machine adopts a production process integrating gas, electricity and machinery. It is a special mechanical equipment for processing color steel insulation composite board.

The foam composite board forming machine adopts frequency conversion and stepless speed regulation. It can compound into corrugated composite board at one time. The complete assembly line is purchased from the unwinding machine. , Crimping, grooving, edge trimming, pneumatic, automatic cutting), which can help you save a lot of labor costs.

At the same time, the products produced by the foam composite board forming machine are easy to install, strong in load-bearing capacity, and good in insulation effect, which can help you quickly occupy the market and win market competitiveness.

Technical parameters of Simple house construction, easy to install foam composite board forming machine

Manufacturer Price Sandwich Panel Foam Making Machine Production Line
Length Min cut length: 3 m
Max stacker length: 15 m
raw material standards
Coil thickness 0.4~0.6mm (the coil surface should be flat,
no arch and the others surface trouble.)
Material coil yield strength 235MPa
Material coil max width see detailed profile drawings.
Material coil max weight 5 T
Material coil inner diameter Φ508,Φ610 mm
EPS core material
density ≥18Kg/m3
straight rate ≤1mm/m
arch degree ≤3mm/m
panel surface shoule be flat
no flat degree is ≤1.5mm/m,
sandwich panel length longer than 5 meters
wool material
fiber length ≥100mm
cubage density ≥100Kg/m3
sandwich panel length ≥3 meters

House Construction Foam Composite Board Sandwich Panel Line For 1200mm
