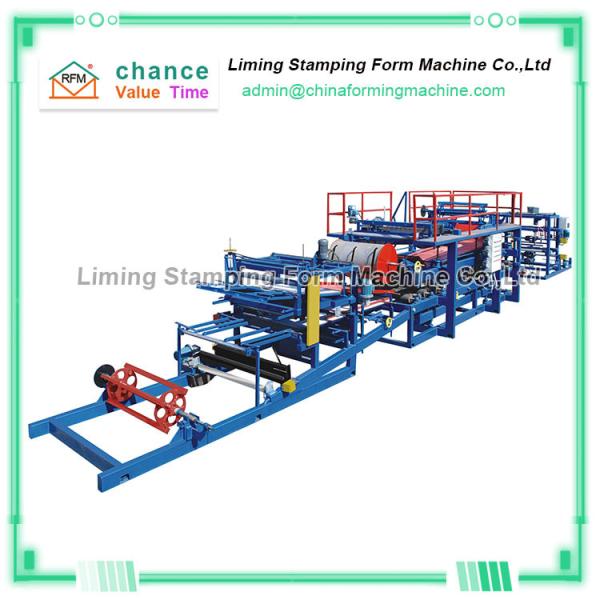

4kw Sandwich Panel Forming Machine , T0.8mm tile roll forming machine
4kw Sandwich Panel Forming Machine , T0.8mm tile roll forming machine
Specifications
Brand Name :
LIMING
Model Number :
LM-sandwich3
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Type: :
Tile Forming Machine
Tile Type: :
Colored Glaze
Production Capacity: :
4-5m/min
After Warranty Service: :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Warranty :
2 years
Rolling thinckness: :
0.2-0.8mm
Condition: :
New
cutting blade material:: :
Cr12
Use: :
WALL
Description

Energy Saving And Environmentally Friendly Sandwich Panel Forming Machine

"Energy saving and environmentally friendly sandwich panel forming machine" host: Use glue to laminate the upper and lower layers of the colored steel plate on EPS or rock wool.

"Energy saving and environmentally friendly sandwich panel forming machine" includes the main frame, unwinding device, glue leveling mechanism, correction device, electric heating device, dust suction device and electric control device.

① Main frame: The frame of the "Energy saving and environmentally friendly sandwich panel forming machine" is a frame structure. There are three upper and lower pressure roller frames. Each pressure roller frame is equipped with several pairs of rubber rollers. The upper and lower rubber rollers are on the same level. When corrugated board is produced, the small drum frame is raised and then placed in the provided pad. It is only necessary to remove the liner when producing flat panels.

② Unwinding device: "Energy saving and environmentally friendly sandwich panel forming machine" is equipped with upper and color steel unwinding device. The brake uses the friction plate method to adjust the tension of the upper part and the color coil to keep it moderate.

③ Glue homogenization mechanism: The host of the "Energy saving and environmentally friendly sandwich panel forming machine" is equipped with a glue homogenization and dispensing mechanism. The color steel composite board production line uses a metering pump to deliver glue, and the glue is evenly dropped on the upper board and the color board through the hose. , In the glue homogenization mechanism, the two glues are evenly mixed. Compared with the drip irrigation method, the drip irrigation homogenization method has a simple structure, reduces air pollution and reduces the labor intensity of workers.

Technical parameters of Energy Saving And Environmentally Friendly Sandwich Panel Forming Machine

Cutting Machine Dimensions 3250 * 2800 * 2000mm
Square tube 80 * 80 * 4mm
cylinder 1.8m scope
Sliding shaft Φ40 cold drawn steel
Motor Power 4kw
Lifting drive shaft Φ50 cold drawn steel
Process flow chart of composite board Top roll Steel plate feeding machine --- Pressing groove --- Drip glue --- Insert buckle plate forming --- Even glue --- Heating ---
Composite --- Cut-off (length self-setting) --- Conveyor rack-- -Finished products
Next roll Steel plate feeding machine --- Pressing groove --- Corrugated pressing --- Drip glue --- Even glue --- Heating --- Composite ---
Cut-off (length self-setting) --- Conveyor rack --- Finished product
Production speed About 330 / hour
Blank holder Electroplating
Color board thickness 0.3 -- 0.8mm
Finished thickness 50-280 thick
Color steel Decoiler rack Decoiler spindle Φ85
Rock wool polystyrene composite assembly line Square tube 80 * 160 * 6mm
Rock wool Machine Brake disc Φ310
Edge banding machine can press the width of the steel belt 200mm
Receiving rack 6 meters (roller receiving)
PLC Taiwan Delta
