Automatic Precast EPS Sandwich Panel Machine Aluminum sheet
Automatic Precast EPS Sandwich Panel Machine Aluminum sheet
Specifications
Brand Name :
LIMING
Model Number :
LM-sandwich9
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Control system: :
PLC
Feeding width: :
1220mm, 915mm, 900mm, 1200mm, 1000mm, 1250mm
Coil Weight: :
6.5Ton
Size of sheet: :
1200mm
Warranty :
2 years
Rolling thinckness: :
0.3-0.8mm
Dimension(L*W*H): :
30000*3000*2800mm
Working speed: :
10-14m/min
Hydraulic station motor power: :
11kw
Description

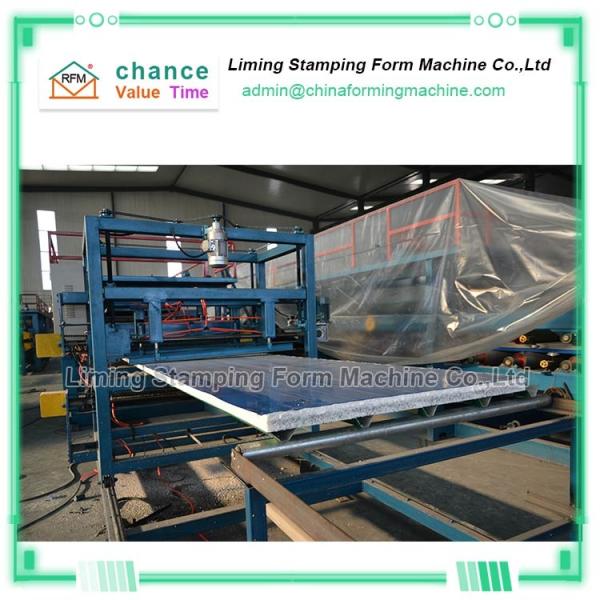

Automatic Precast EPS Sandwich Wall Panel Roll Forming Machine

"Automatic precast EPS sandwich wall panel roll forming machine" adopts precision low-speed metering pump, frequency conversion speed regulation or stepless speed regulation, and is controlled by a computer with accurate measurement.

"Automatic precast EPS sandwich wall panel roll forming machine" adopts advanced mechatronics production technology, with an annual production capacity of 500,000 square meters.

"Automatic precast EPS sandwich wall panel roll forming machine" can be compounded into corrugated sandwich panels at one time.

"Automatic precast EPS sandwich wall panel roll forming machine" consists of loading and unloading system, molding system, cutting equipment and composite system (compression, gluing, heating, laminating, crimping, grooving, trimming, pneumatic and automatic cutting). .

"Automatic precast EPS sandwich wall panel roll forming machine" application range: industrial plants, warehouses, house panels and wall panels.

Technical parameters of Automatic Precast EPS Sandwich Wall Panel Roll Forming Machine

Motor Power: 3KW
Hydraulic Power 202kw
Raw material: Color steel sheet, Aluminum sheet
Inner diameter of coil: φ500mm-φ600mm
Out diameter of coil: φ1200mm
Weight of coil: 10T
Thickness of sheet: 0.3-0.7mm
Width of sheet: 1250mm
Speed of uncoil: 1.5-12m/min
Hydraulic pressure: 6.3Mpa
Coil car:
Hydraulic cylinder lift stroke: up panel 0.5m,down panel 0.5m
Coil car stroke: 0.5m
Pressure of hydraulic system: 6.3Mp
Tightening mechanism Magnetic brake
