6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
Specifications
Brand Name :
ZSX
Model Number :
SMA-KK
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Adapter
Gender :
Female to female
Boday Material :
Stainless steel
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.3
Description
RF Adapter SMA/SMA-KK SMA Female To Female Gold-plated Brass Adapter

RF Adapter is a kind of used for RF (Radio Frequency, usually refers to 3 KHZ ~ 300 GHZ Frequency band) passive components in the signal transmission system, common types are SMA/N/of BNC/TNC/MCX/UHF/SMP / 2.4 MM / 3.5 MM, etc. The main function is to achieve reliable connection and signal conversion between different types of RF interfaces, impedances or transmission media, ensuring low loss, small reflection and high stability of RF signals during transmission. It is widely used in communication, radar, test and measurement, aerospace, medical equipment and other fields.

Product display
Product Performance Details
Product modelSMA-KKContact resistanceCenter contact:≤3mΩ
Outer contact:≤2mΩ
Characteristic impedance50 ohmBody materialGold-plated brass
Frequency rangeDC-6GHzInsulatorPTFE
Voltage standing wave ratio≤1.2Central conductorGold-plated beryllium copper
Medium pressure resistance1000V RMSTemperature range-45℃~+125℃
Dielectric constant≥5000MΩDurability≥500 Cycles

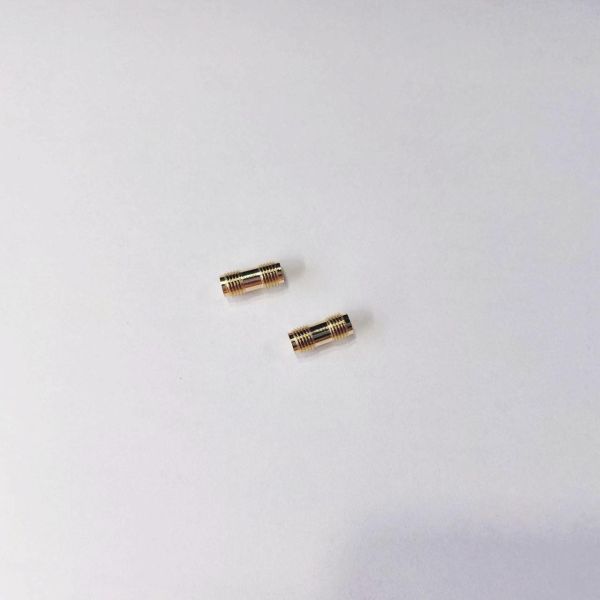

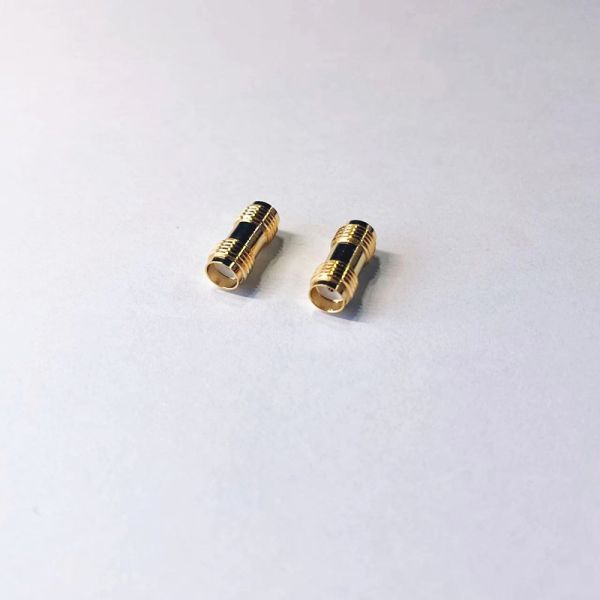

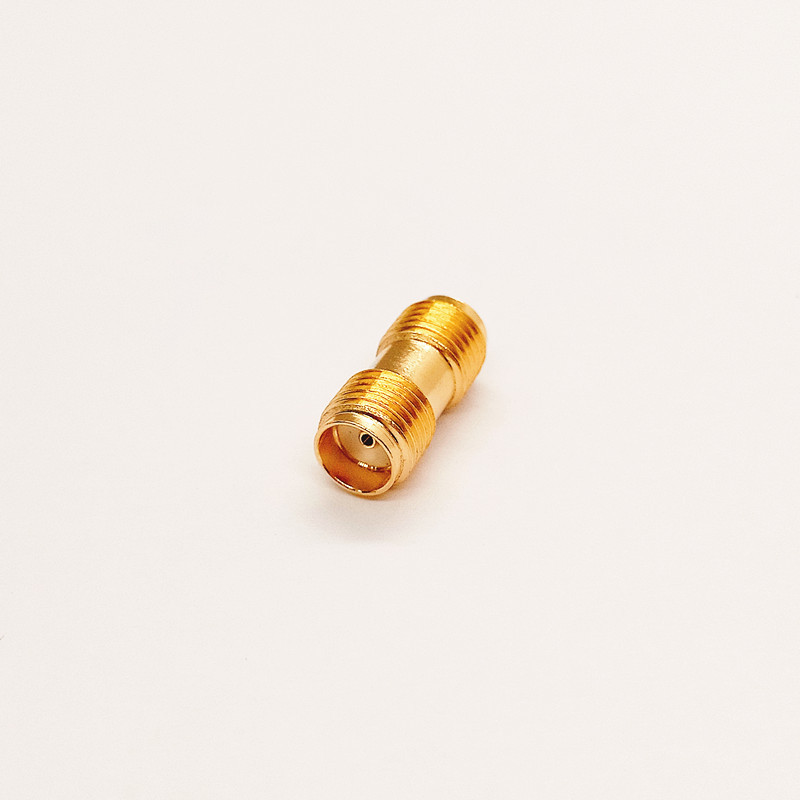

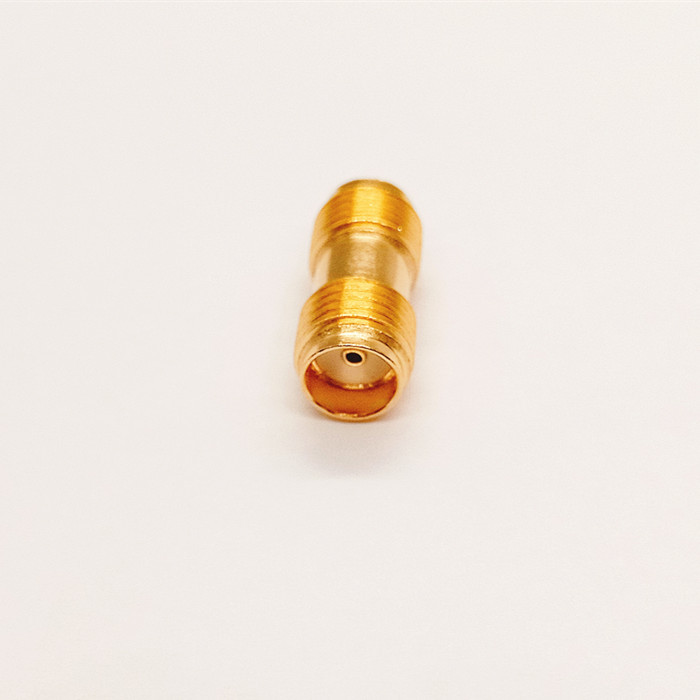

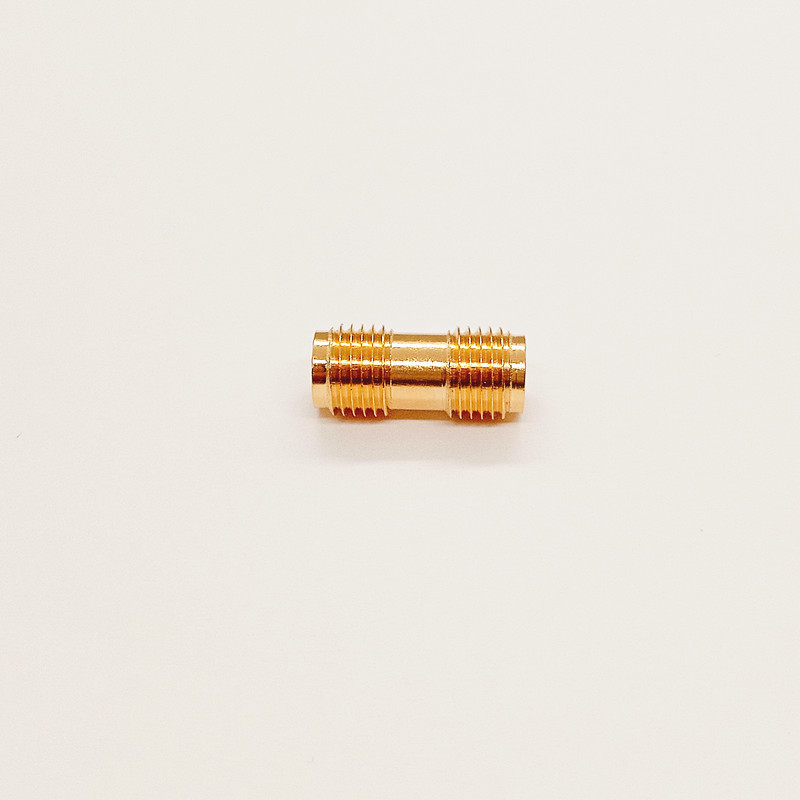

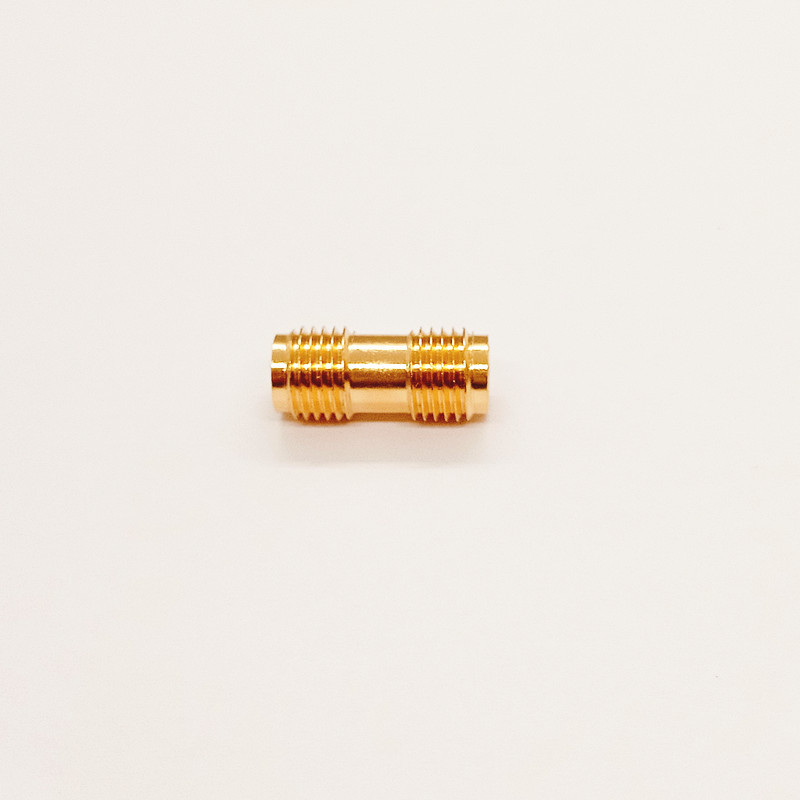

Physical product display
6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK 6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK

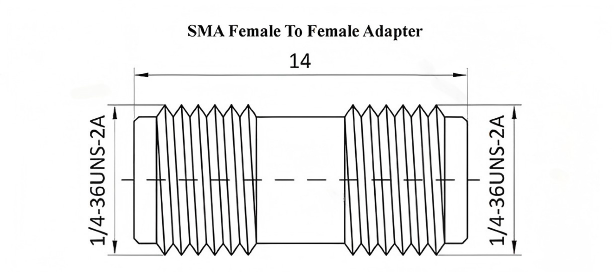

Product external dimensions
6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
Related product recommendations
6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK 6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
Display of Strength
Office area
6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK 6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
Production Plant Area
Machining production workshop
6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK 6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
Precision Assembly Production Workshop
6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK 6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
Glass-to-metal sealed production workshop
6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK 6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
Obtained Certification Certificate
6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK 6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
Customer visit
6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK 6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
Product packaging
6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK 6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
Packaging and Shipping

  • Standard export carton 6GHz RF Adapter 50 Ohm SMA Female To Female Adapter ODM SMA / SMA-KK
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
