50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector
50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector
50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector
50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector
50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector
50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector
50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector
50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector
Specifications
Model Number :
SMPM/2.92-KJ
MOQ :
10 pcs
Delivery Time :
5-8 Days
VSWR :
≤ 1.25
Price :
$17.00-$22.80(Depending on the quantity)
Boday Material :
Brass
Certification :
ISO9001
Payment Terms :
T/T,D/P,Alipay
Gender :
Female to male
Working temperature :
-45℃~+165℃
Insulator material :
PTFE
Supply Ability :
1000000Pcs/Year
Name :
RF Adapter
Packaging Details :
Carton packaging
Brand Name :
ZSX
Place of Origin :
China
Description

SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter

High precision straight coaxial adapter converts SMPM female interface to 2.92mm male (K‑type). 50Ω impedance, DC‑40 GHz wide frequency coverage, low VSWR & low insertion loss, ideal for test instrument, radar, millimeter‑wave and 5G RF system interconnection.

Product display
Product Performance Details
Product model SMPM/2.92-KJ Contact resistance

Center Contact:≤3mΩ

Outer Contact:≤2mΩ
Characteristic impedance 50 ohm Body material Brass
Frequency range DC-40GHz Insulator PEI
Voltage standing wave ratio ≤1.3 Central conductor Gold-plated beryllium copper
Insertion loss 0.25dB Temperature range -45℃~+165℃
Dielectric constant ≥5000MΩ Durability ≥500 Cycles

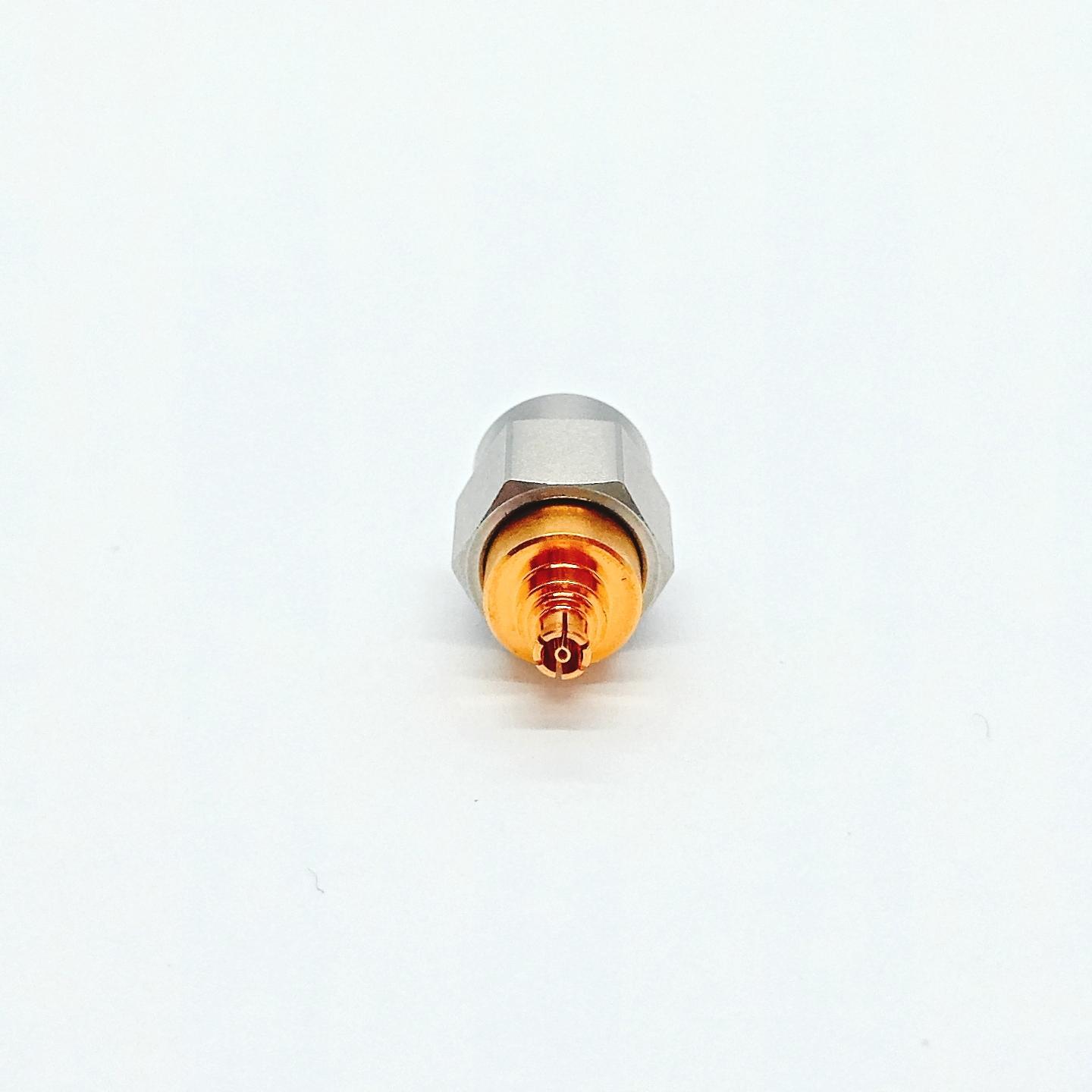

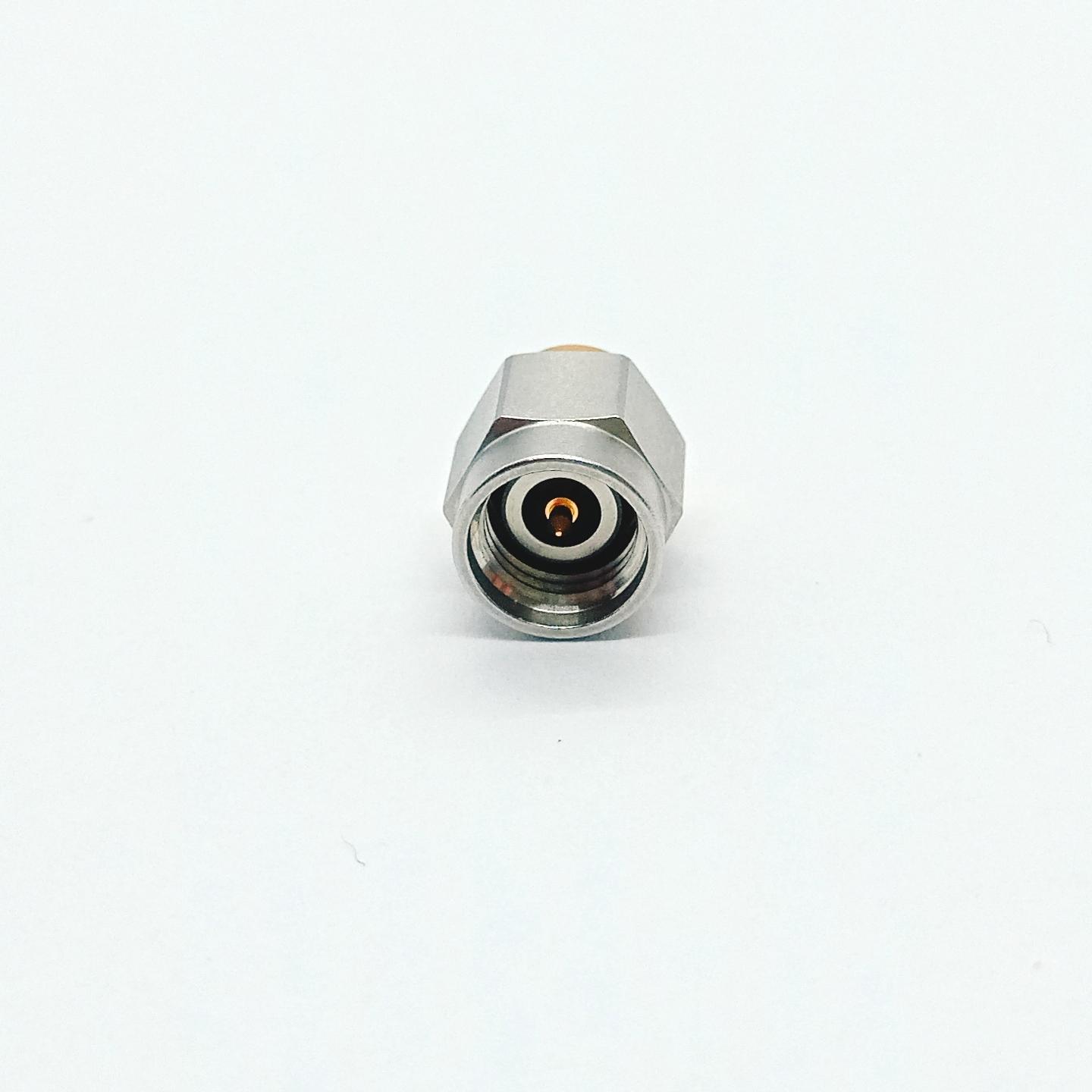

Physical product display

50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector 50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector



Related product recommendations

50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector 50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector

Display of Strength
Production Plant Area
Machining production workshop

50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector 50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector

Precision Assembly Production Workshop

50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector 50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector

Glass-to-metal sealed production workshop

50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector 50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector

Obtained Certification Certificate

50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector

Customer visit

50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector 50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector

Product packaging

50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector 50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector

Packaging and Shipping

  • Standard export carton 50 Ohm SMPM Female To 2.92mm Male Straight SMPM/2.92-KJ RF Coaxial Adapter DC‑40GHz Microwave Transition Connector
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
