50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
Specifications
Brand Name :
ZSX
Model Number :
TNC/SMA-JK
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$0.98-$1.55 (Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Adapter
Gender :
Male to female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

50 Ohm TNC Male To SMA Female Adapter TNC / SMA-JK Adapter Nickel Plated Brass

TNC/SMA-JK is a 50Ω RF coaxial adapter that connects TNC male and SMA female interfaces. Made of brass with gold-plated contacts and PTFE insulation, it features low insertion loss, low VSWR, and stable performance up to 6GHz. With an operating temperature range of -55℃ to +165℃, it is widely used in communications equipment, base stations, test instruments, aerospace and other RF systems to achieve reliable signal conversion between different connectors.

Product display
Product Performance Details
Product model TNC/SMA-JK Contact resistance

Center contact: (TNC):≤1.5mΩ (SMA): 3 mΩ

Outer contact: (TNC):≤0.2mΩ (SMA) : 2mΩ
Characteristic impedance 50 ohm Body material Gold-plated brass
Frequency range DC-6GHz Insulator PTFE
Voltage standing wave ratio ≤1.25 Central conductor Gold-plated beryllium copper
Medium pressure resistance 1000V RMS Temperature range -45℃~+125℃
Dielectric constant ≥5000MΩ Durability ≥500 Cycles

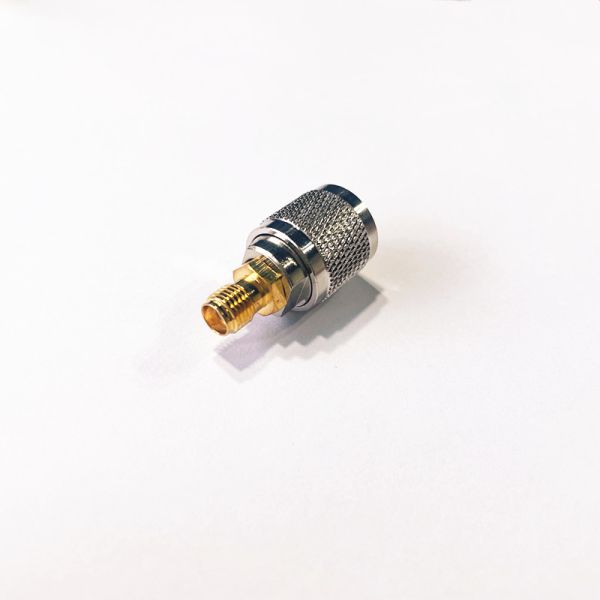

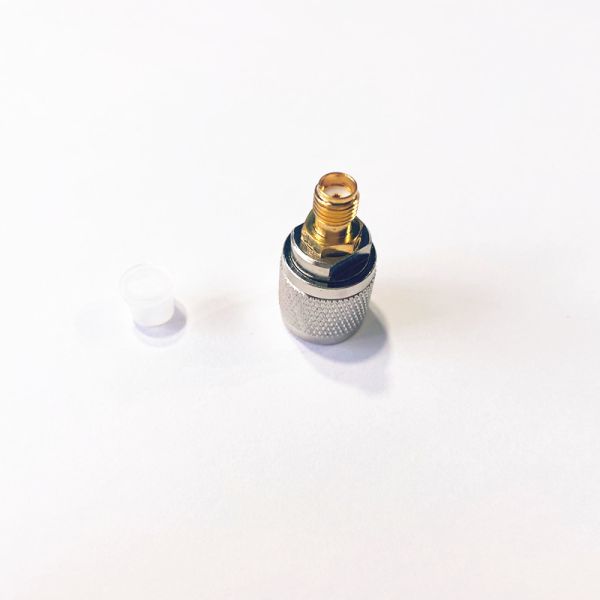

Physical product display
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems 50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems

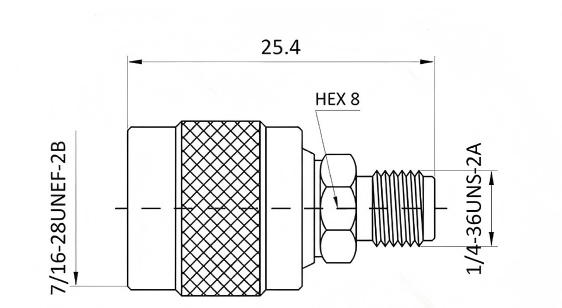

Product external dimensions
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
Related product recommendations
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems 50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
Display of Strength
Office area
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems 50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
Production Plant Area
Machining production workshop
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems 50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
Precision Assembly Production Workshop
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems 50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
Glass-to-metal sealed production workshop
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems 50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
Obtained Certification Certificate
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems 50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
Customer visit
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems 50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
Product packaging
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems 50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
Packaging and Shipping
50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
