Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Specifications
Brand Name :
ZSX
Model Number :
SMA/SMB-KK
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$0.96-$1.28 (Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Adapter
Gender :
Female to female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.3
Description
Gold Plated Brass SMA Female To SMB Female Adapter DC-4GHz

SMA to SMB RF Coaxial Adapter is a high-performance connectivity solution designed to seamlessly convert signals between SMA and SMB interfaces, widely used in high-frequency communication systems. Crafted with precision-machined brass housing and gold-plated contacts, this adapter ensures excellent electrical conductivity, minimal signal loss, and strong corrosion resistance, supporting stable operation across a frequency range of 0–6GHz. Featuring a compact and robust design, it adopts a secure snap-on (SMB) and thread (SMA) connection mechanism, ensuring firm and reliable interconnection without signal interference. Suitable for WiFi devices, GPS modules, RF test equipment, industrial control systems, and consumer electronics, this adapter provides a cost-effective, durable solution for professionals and system integrators needing flexible interface conversion.

Product display
Product Performance Details

Product model

SMA/SMB-KK

 Contact resistance

Center contact:3 mΩ Outer contact:2mΩ

Characteristic impedance

50 ohm

Body material

Gold-plated brass

Frequency range

DC-4GHz

 Insulator PTFE

Voltage standing wave ratio

≤1.3

Central conductor

Gold-plated beryllium copper

Medium pressure resistance

750V RMS

Temperature range

-45℃~+125℃

Dielectric constant

≥1000MΩ

Durability

≥500 Cycles

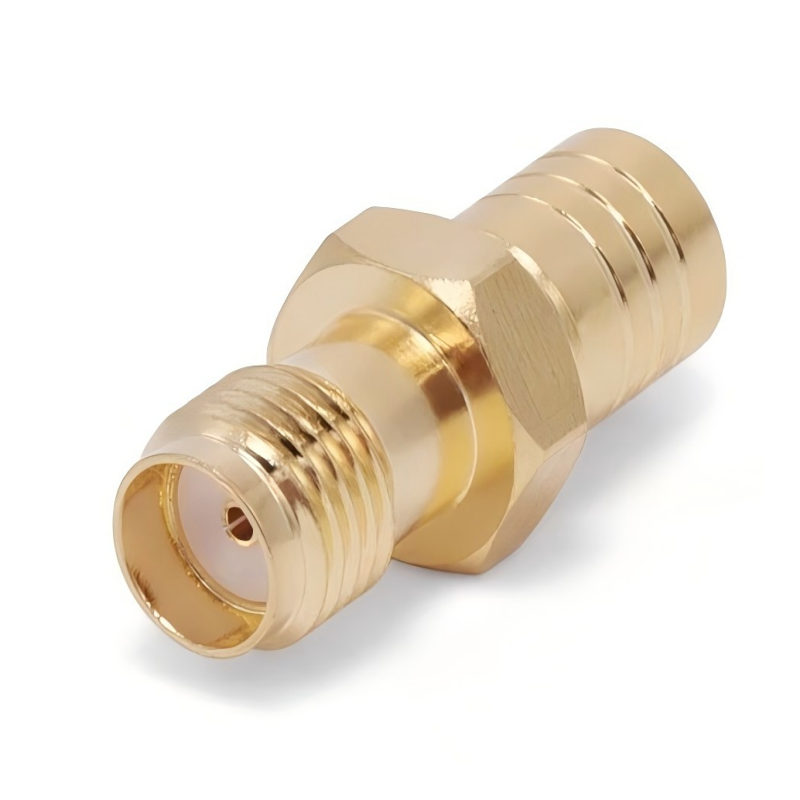

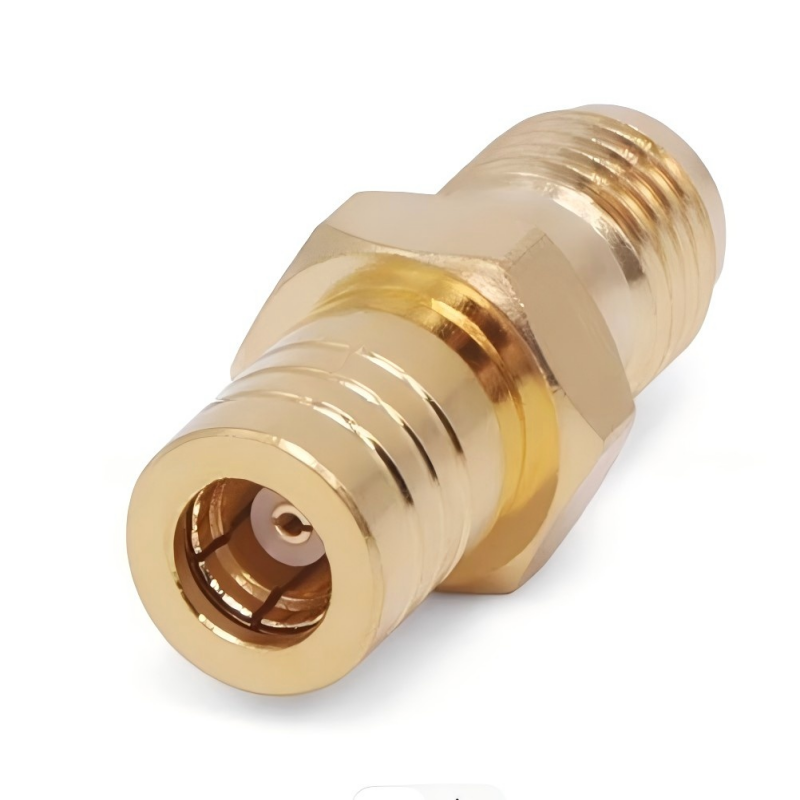

Physical product display
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications

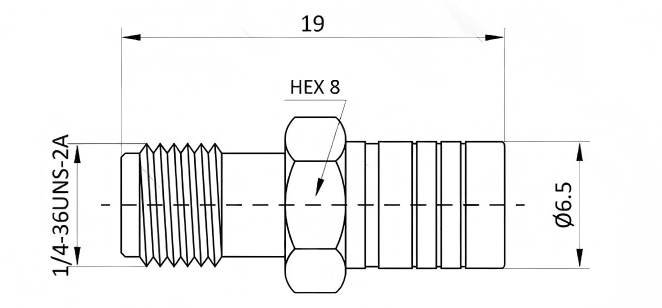

Product external dimensions
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Related product recommendations
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Display of Strength
Production Plant Area
Machining production workshop
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Precision Assembly Production Workshop
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Glass-to-metal sealed production workshop
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Obtained Certification Certificate
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Customer visit
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Product packaging
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
Packaging and Shipping
Gold Plated Brass SMA to SMB Female to Female RF Adapter for DC-4GHz Applications
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
