DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator
DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator
DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator
DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator
DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator
DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator
DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator
DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator
Specifications
Model Number :
SMA/QMA-KK
Price :
$5.95-$7.94 (Depending on the quantity)
Boday Material :
Brass
Supply Ability :
1000000Pcs/Year
Name :
RF Adapter
Insulator material :
PTFE
MOQ :
10 pcs
Delivery Time :
5-8 Days
VSWR :
≤ 1.25
Payment Terms :
T/T,D/P,Alipay
Gender :
Male to female
Working temperature :
-45℃~+165℃
Brand Name :
ZSX
Certification :
ISO9001
Place of Origin :
China
Packaging Details :
Carton packaging
Description

DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator

SMA fixed coaxial attenuator adopts passivated stainless steel housing with SMA male-female straight interface, rated for 2 Watts continuous power, 20dB precise attenuation across DC to 6GHz full frequency band. Built with Pi-type precision resistive network, it delivers flat attenuation curve, ultra-low voltage standing wave ratio, stable signal matching and outstanding heat dissipation. Widely used in RF signal testing, wireless communication modules, signal power regulation and equipment overload protection.

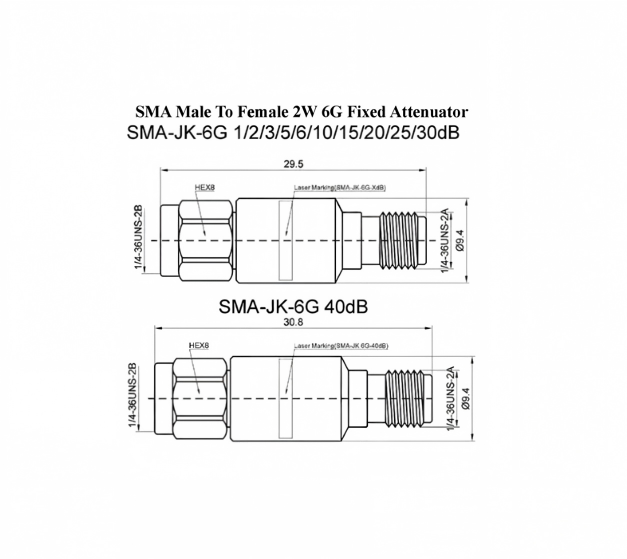

Product display
Product Performance Details
Product model SMA-JK-2W-20 Attenuation value 20dB
Characteristic impedance 50 ohm Body material SS
Frequency range DC-6GHz Insulator PTFE
Voltage standing wave ratio ≤1.2 Central conductor Gold-plated beryllium copper
Attenuation Accuracy 15dB±0.6 Temperature range -55℃~+125℃
Central conductor Beryllium bronze Durability ≥500 Cycles

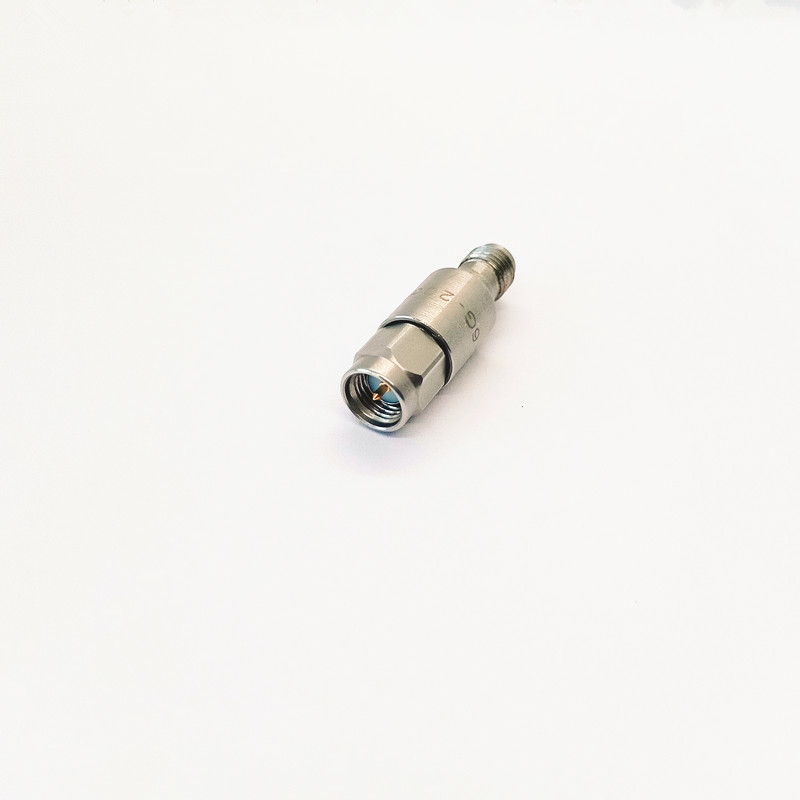

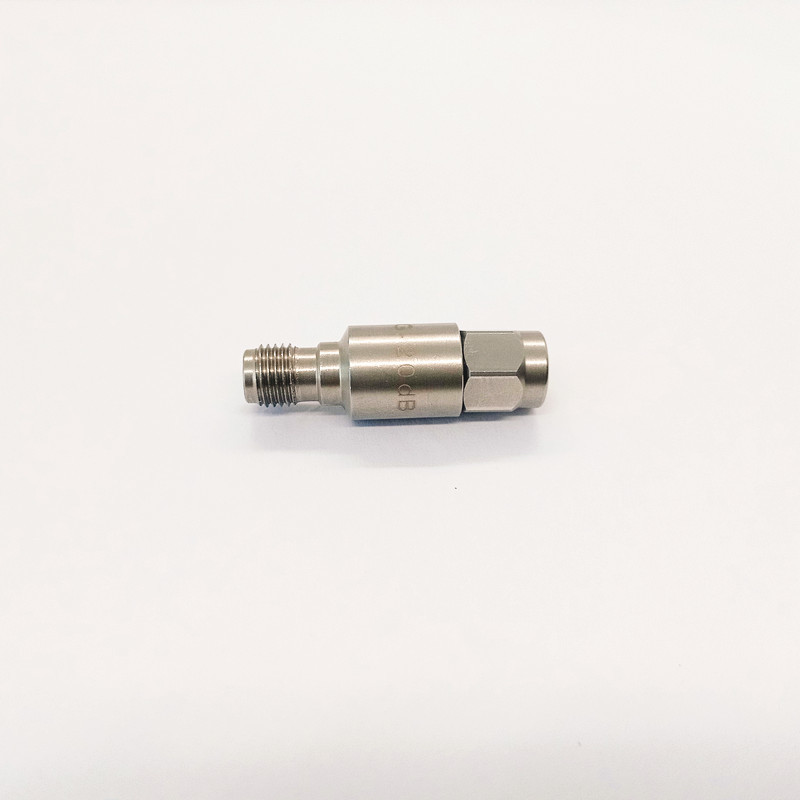

Physical product display

DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator

DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator

Related product recommendations

DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator

Display of Strength
Production Plant Area
Machining production workshop

DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator

Precision Assembly Production Workshop

DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator

Glass-to-metal sealed production workshop

DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator

Obtained Certification Certificate

DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator

Customer visit

DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator

Product packaging

DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator

Packaging and Shipping

  • Standard export carton DC-6GHz RF Attenuator 2W Stainless Steel 20dB SMA Male To Female Attenuator
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
