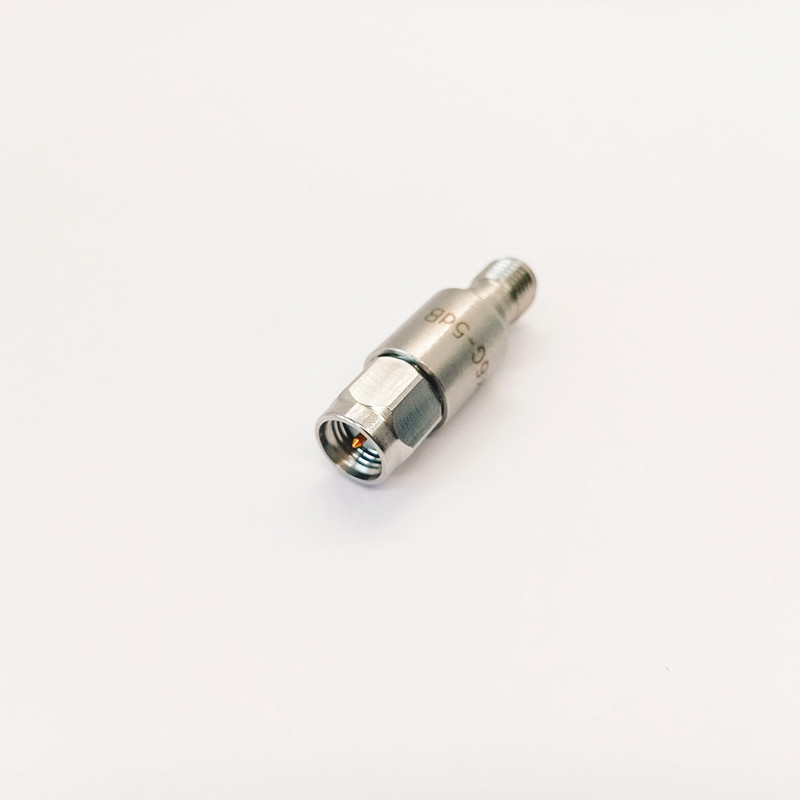

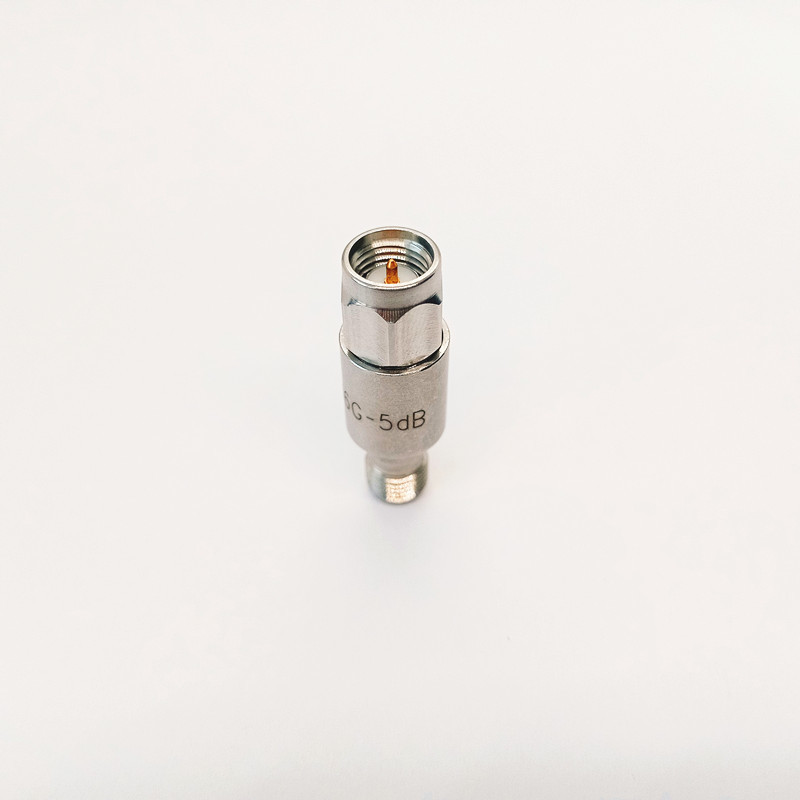

RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing
RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing
RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing
RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing
RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing
RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing
RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing
RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing
Specifications
Supply Ability :
1000000Pcs/Year
Name :
RF Attennuator
Model Number :
SMA-JR-2W-5
MOQ :
5 pcs
Delivery Time :
5-8 Days
VSWR :
≤ 1.2
Payment Terms :
T/T,D/P,Alipay
Gender :
Male to female
Working temperature :
-55℃~+125℃
Price :
$5.95-$7.95 (Depending on the quantity)
Boday Material :
Steel
Insulator material :
PTFE
Brand Name :
ZSX
Certification :
ISO9001
Packaging Details :
Carton packaging
Place of Origin :
China
Description

RF Fixed Attenuator Stainless Steel 5dB SMA Male To Female Attenuator DC - 6GHz

SMA fixed coaxial attenuator adopts passivated stainless steel housing with SMA male-female straight interface, rated for 2 Watts continuous power, 5dB precise attenuation across DC to 6GHz full frequency band. Built with Pi-type precision resistive network, it delivers flat attenuation curve, ultra-low voltage standing wave ratio, stable signal matching and outstanding heat dissipation. Widely used in RF signal testing, wireless communication modules, signal power regulation and equipment overload protection.

Product display
Product Performance Details
Product model SMA-JK-2W-5 Attenuation value 5dB
Characteristic impedance 50 ohm Body material SS
Frequency range DC-6GHz Insulator PTFE
Voltage standing wave ratio ≤1.2 Central conductor Gold-plated beryllium copper
Attenuation Accuracy 5dB±0.6 Temperature range -55℃~+125℃
Central conductor Beryllium bronze Durability ≥500 Cycles
Physical product display

RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing

RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing

Related product recommendations

RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing

Display of Strength
Production Plant Area
Machining production workshop

RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing

Precision Assembly Production Workshop

RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing

Glass-to-metal sealed production workshop

RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing

Obtained Certification Certificate

RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel HousingRF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing

Customer visit

RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing

Product packaging

RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing

Packaging and Shipping

  • Standard export carton RF Fixed Attenuator SMA Male to Female with 5dB Attenuation DC-6GHz Frequency Range and Stainless Steel Housing
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
