50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication
50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication
50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication
50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication
50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication
50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication
50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication
50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication
Specifications
Brand Name :
ZSX
Model Number :
N-KK
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$1.18--$1.78 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Female To Female Adapter
Gender :
Female to female
Boday Material :
Brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

RF Adapter 50Ω N Female To N Female Low VSWR For RF Communication Test Equipment

N female to N female RF adapter is a high-performance 50Ω coaxial adapter for reliable RF signal connection between two N-type female ports. With DC~6GHz frequency and ≤1.2 VSWR, it delivers low insertion loss and excellent signal integrity for RF communication, 5G, antennas, test equipment, and radar. Featuring a brass body, gold-plated contacts, and PTFE dielectric, it ensures superior conductivity, corrosion resistance, and long service life, ideal for cable extension and instrument connection.

Product display
Product Performance Details
Product model N-KK Contact resistance

Center contact:≤0.4mΩ(N)

Outer contact: ≤ 0.2mΩ(N)
Characteristic impedance 50 ohm Body material Nickel-plated brass
Frequency range DC-6GHz Insulator PTFE
Voltage standing wave ratio ≤1.2 Central conductor Gold-plated beryllium copper
Medium pressure resistance ≥2500V RMS ,50Hz, at sea level Temperature range -45℃~+125℃
Dielectric constant ≥5000MΩ Durability ≥500 Cycles

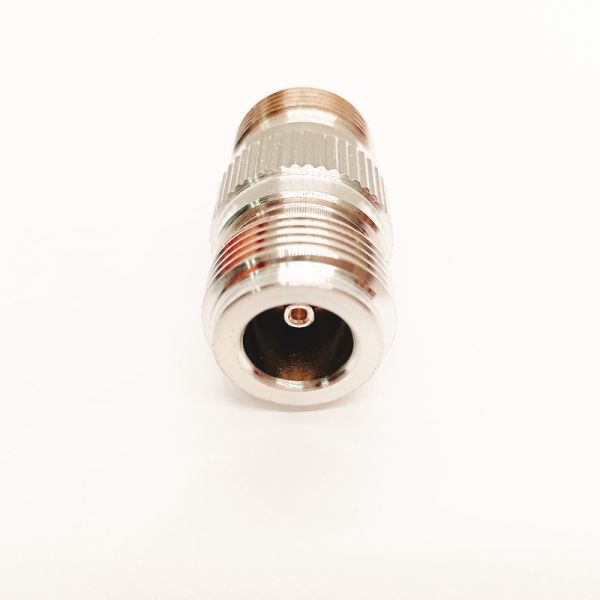

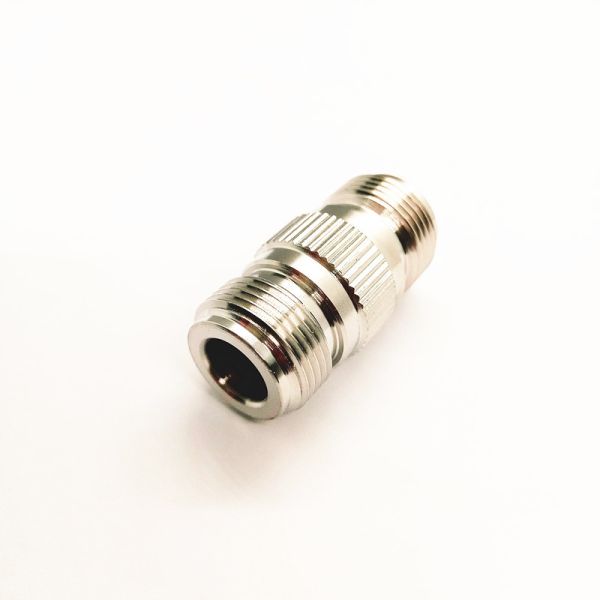

Physical product display

50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication 50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication

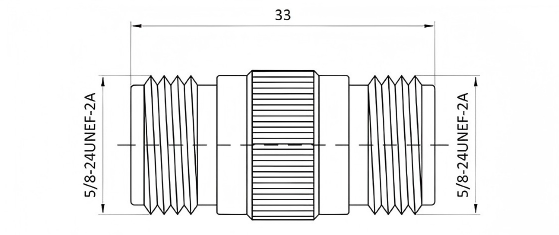

Product external dimensions

50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication

Related product recommendations

50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication 50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication

Display of Strength
Office area

50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication 50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication

Production Plant Area
Machining production workshop

50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication 50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication

Precision Assembly Production Workshop

50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication 50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication

Glass-to-metal sealed production workshop

50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication 50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication

Obtained Certification Certificate

50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication

Customer visit

50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication 50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication

Product packaging

50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication 50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication

Packaging and Shipping 50Ω N Female to N Female RF Adapter with Low VSWR ≤1.25 and DC~6GHz Frequency for RF Communication
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
