RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
Specifications
Model Number :
SMA/MMCX-KK01
MOQ :
10 pcs
Delivery Time :
5-8 Days
VSWR :
≤ 1.3
Payment Terms :
T/T,D/P,Alipay
Gender :
Female to female
Working temperature :
-45℃~+125℃
Brand Name :
ZSX
Packaging Details :
Carton packaging
Price :
$0.99-$1.45 (Depending on the quantity)
Boday Material :
Brass
Supply Ability :
1000000Pcs/Year
Name :
RF Adapter MMCX to SMA
Certification :
ISO9001
Insulator material :
PTFE
Place of Origin :
China
Description

RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK

The MMCX Female to SMA Female Adapter is a high-precision straight RF coaxial converter engineered for professional wireless communication systems. Built with high-quality gold-plated brass contacts and integrated shielding structure, this 50 Ohm impedance adapter features ultra-low insertion loss and stable VSWR performance within the 0-6GHz frequency range, effectively ensuring high-fidelity signal transmission without interference or attenuation. Adopting standard snap-on and threaded locking structure, it enables quick and firm docking with excellent vibration resistance and connection stability. Compact in size and durable in use, it is widely applied for antenna switching and signal conversion of WiFi, Bluetooth, drones, IoT modules and various industrial wireless electronic devices, supporting customized processing to meet diverse application demands.



Product display
Product Performance Details

Product model

SMA/MMCX-KK01

 Contact resistance

Center contact: (MMCX):≤1.5mΩ (SMA): 3 mΩ

Outer contact: (MMCX):≤0.2mΩ (SMA) : 2mΩ

Characteristic impedance

50 ohm

Body material

Gold plated brass

Frequency range

DC-6GHz

 Insulator PTFE

Voltage standing wave ratio

≤1.3

Central conductor

Gold-plated beryllium copper

Medium pressure resistance

1000V RMS

Temperature range

-45℃~+125℃

Dielectric constant

≥5000MΩ

Durability

≥500 Cycles

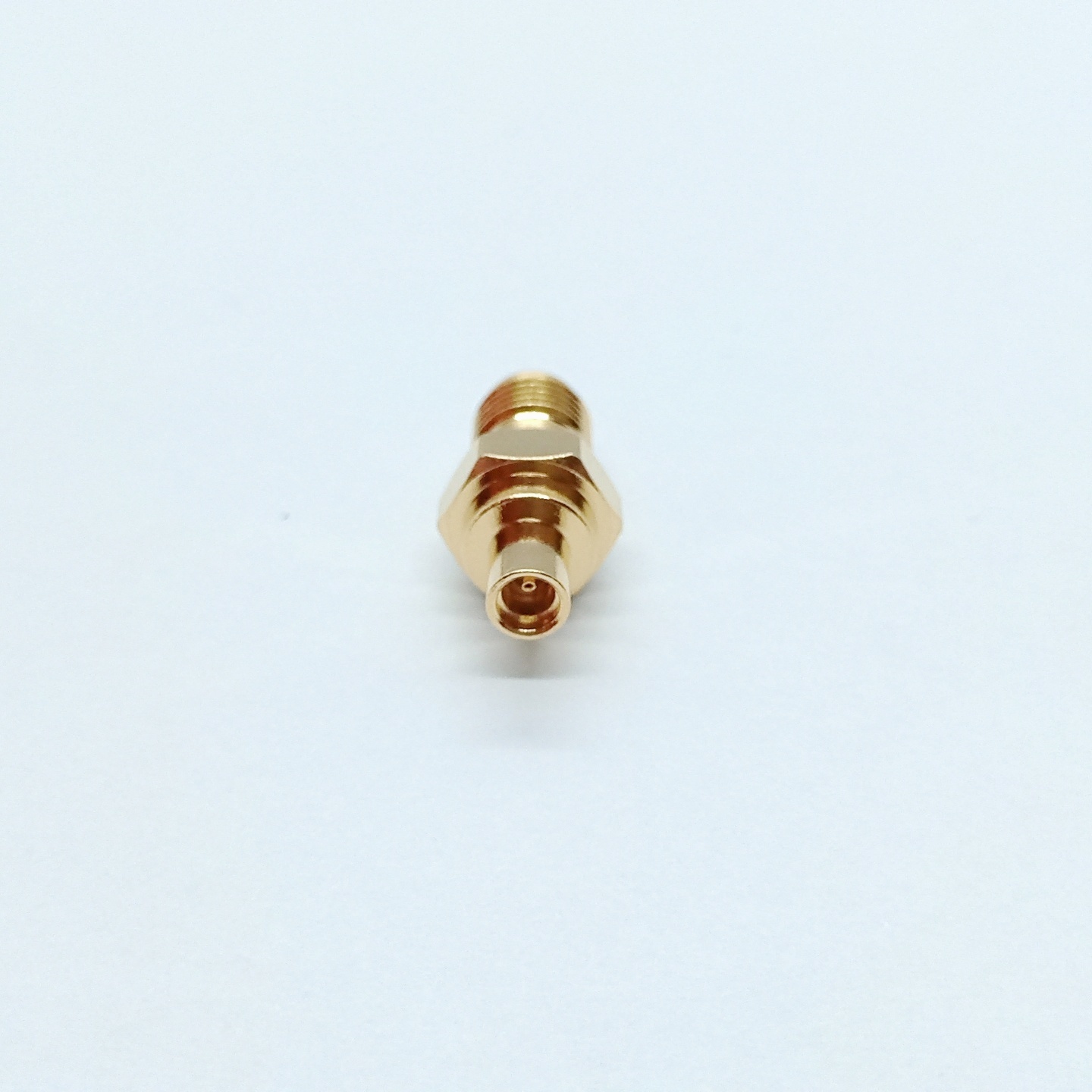

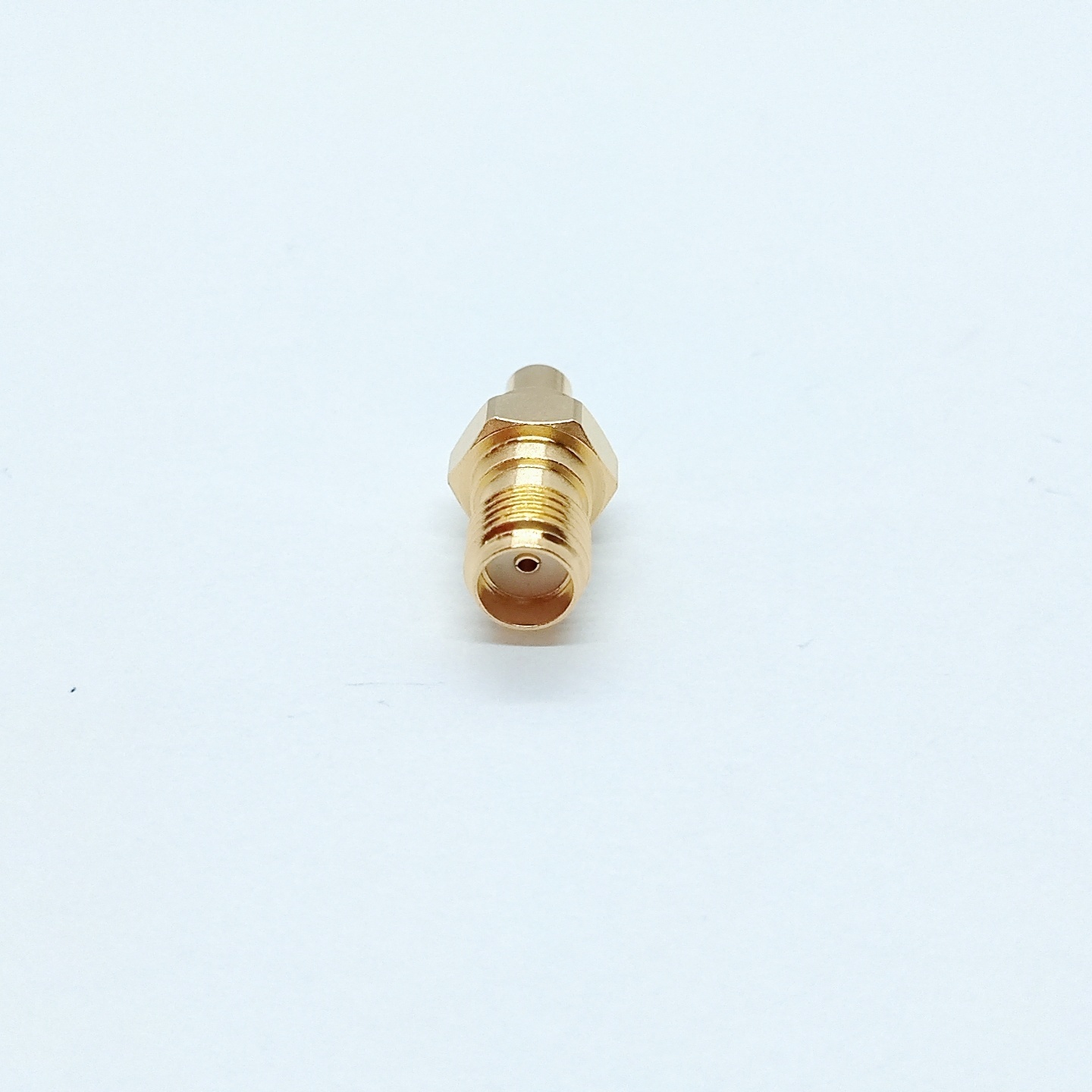

Physical product display
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK

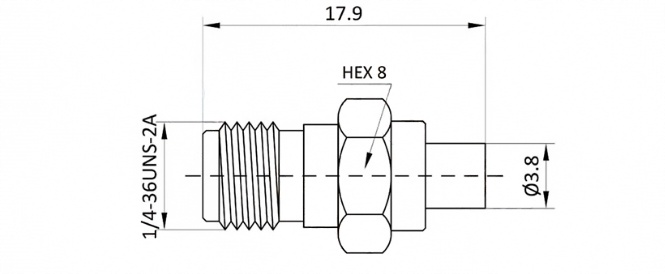

Product external dimensions
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
Related product recommendations
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
Display of Strength
Production Plant Area
Machining production workshop
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
Precision Assembly Production Workshop
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
Glass-to-metal sealed production workshop
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
Obtained Certification Certificate
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
Customer visit
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
Product packaging
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
Packaging and Shipping
RF Adapter DC-6GHz Gold Plated Brass MMCX Female To SMA Female Adapter MMCX/SMA-KK
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
