N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission
N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission
N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission
N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission
N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission
N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission
N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission
N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission
Specifications
Supply Ability :
1000000Pcs/Year
Name :
RF Connector Adapter
Model Number :
N/BNC-JK
MOQ :
50 pcs
Delivery Time :
5-8 Days
VSWR :
≤ 1.25
Payment Terms :
T/T,D/P,Alipay
Gender :
Male to female
Working temperature :
-45℃~+125℃
Price :
$1.29 --$1.65 (Depending on the quantity )
Boday Material :
Brass
Insulator material :
PTFE
Brand Name :
ZSX
Certification :
ISO9001
Place of Origin :
China
Packaging Details :
Carton packaging
Description
RF Adapter Copper Plating With Nickel N/BNC-JK DC-4GHz N Male To BNC Female Adapter

N/BNC-JK is a straight RF adapter with N male plug to BNC female jack, standard 50 ohm impedance, frequency range DC to 4GHz, maximum VSWR ≤1.25. Made of solid brass with nickel-plated housing and gold-plated inner pin, featuring excellent shielding, low insertion loss and stable signal transmission. Precision machining ensures tight connection, anti-loosening, anti-corrosion and long service life over 500 mating cycles. Widely used for signal analyzers, oscilloscopes, radio communication equipment, monitoring antennas and RF testing systems.

Product display
Product Performance Details
Product model

N/BNC-JK

 Contact resistance

Center contact:≤1mΩ(N) 1.5mΩ(BNC)

Outer contact:≤0.2mΩ(N) 1mΩ(BNC)
Characteristic impedance

50 ohm

 Body material

Gold-plated brass
Frequency range

DC-4GHz

 Insulator PTFE
Voltage standing wave ratio

≤1.25

 Central conductor

Gold-plated beryllium copper
Medium pressure resistance

≥1500V RMS ,50Hz, at sea level

 Temperature range

-45℃~+125℃
Dielectric constant

≥5000MΩ

 Durability

≥500 Cycles

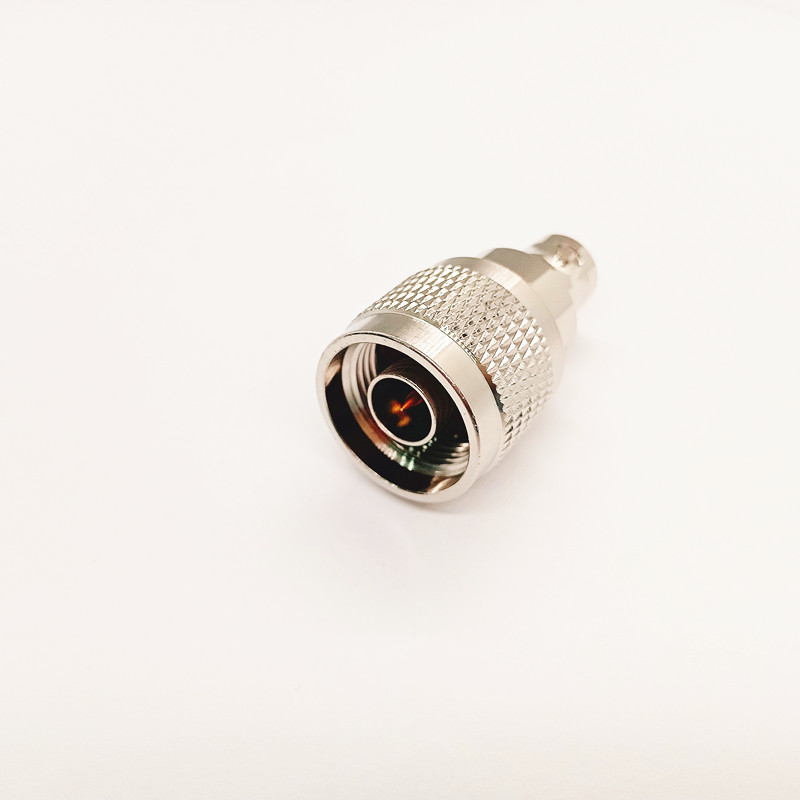

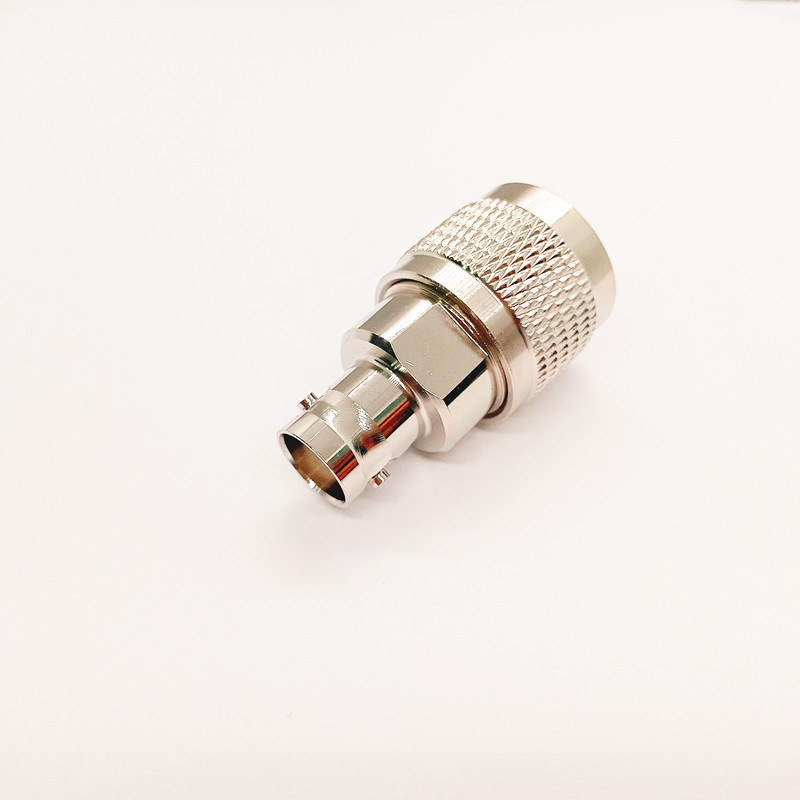

Physical product display

N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission

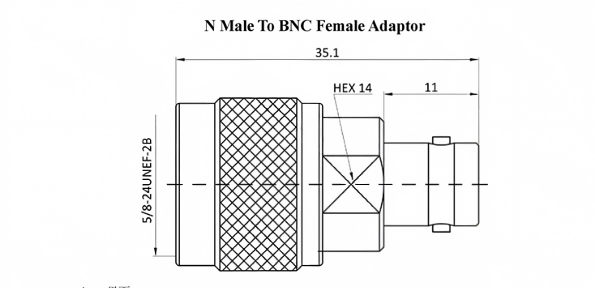

Product external dimensions

N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission

Related product recommendations

N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission

Display of Strength
Office area

N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal TransmissionN/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission

Production Plant Area
Machining production workshop

N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal TransmissionN/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission

Precision Assembly Production Workshop

N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal TransmissionN/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission

Glass-to-metal sealed production workshop

N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal TransmissionN/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission

Obtained Certification Certificate

N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal TransmissionN/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission

Customer visit

N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal TransmissionN/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission

Product packaging

N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal TransmissionN/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission

Packaging and Shipping
N/BNC-JK RF Adapter DC-6GHz Gold-Plated Brass with Low VSWR ≤1.25 for Stable Signal Transmission
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
