RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz
RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz
RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz
RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz
RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz
RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz
RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz
RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz
Specifications
Supply Ability :
1000000Pcs/Year
Model Number :
N/BNC-KK
Gender :
Female to female
Payment Terms :
T/T,D/P,Alipay
Price :
$1.17-$1.56 (Depending on the quantity)
VSWR :
≤ 1.25
Certification :
ISO9001
Boday Material :
Brass
MOQ :
10 pcs
Delivery Time :
5-8 days
Working temperature :
-45℃~+125℃
Brand Name :
ZSX
Name :
RF Adapter N to BNC adapter
Place of Origin :
China
Insulator material :
PTFE
Packaging Details :
Carton packaging
Description

RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz

N female to BNC female straight RF adapter (Model N/BNC-KK) acts as a seamless interface converter between N-type and BNC coaxial cables/devices. Built with premium brass and gold-plated inner conductors, it delivers ultra-low signal loss, stable shielding and consistent 50Ω impedance matching. Widely compatible with signal analyzers, walkie-talkies, antennas and wireless test systems, it solves mismatched RF interface issues efficiently.

Product display
Product Performance Details
Product model N/BNC-KK Contact resistance

Center contact(N):≤1mΩ Outer contact(N):≤0.2mΩ

Center contact(BNC):≤1.5mΩ Outer contact(BNC):≤1mΩ
Characteristic impedance 50 ohm Body material Copper plated with nickel
Frequency range DC-6GHz Insulator PTFE
Voltage standing wave ratio ≤1.25 Central conductor Gold-plated beryllium copper
Medium pressure resistance ≥1500V RMS ,50Hz, at sea level Temperature range -45℃~+125℃
Dielectric constant ≥5000MΩ Durability ≥500 Cycles

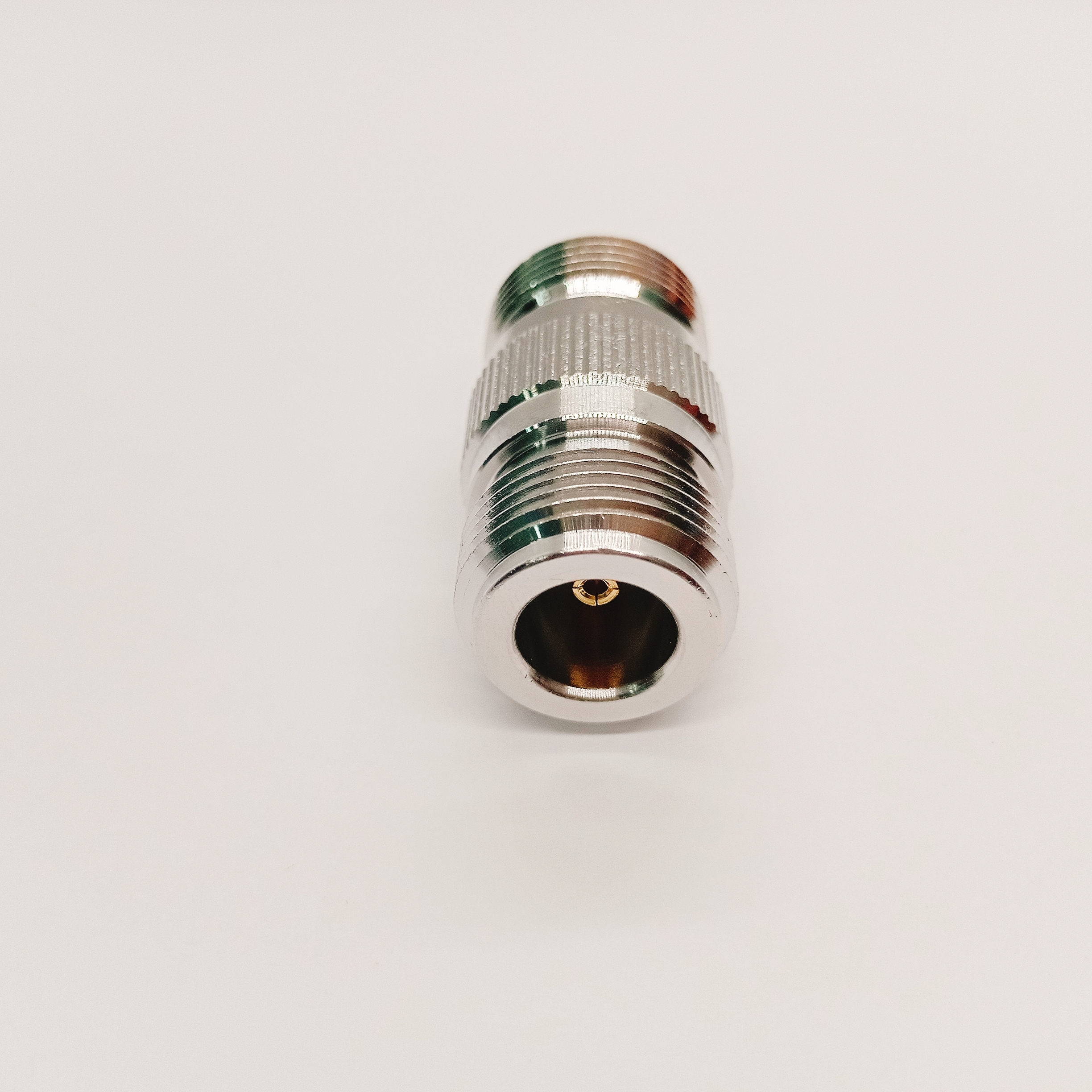

Physical product display

RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz

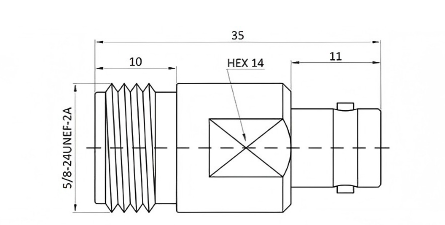

Product external dimensions

RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz

Related product recommendations

RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz

Display of Strength
Office area

RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz

Production Plant Area
Machining production workshop

RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz

Precision Assembly Production Workshop

RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz

Glass-to-metal sealed production workshop

RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz

Obtained Certification Certificate

RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHzRF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz

Customer visit

RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz

Product packaging

RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz

Packaging and Shipping

RF Coaxial Adapter N/BNC-KK N Female To BNC Female Adapter 50 Ohm DC-6GHz

  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
