50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
Specifications
Supply Ability :
1000000Pcs/Year
Name :
BNC Connector
Model Number :
BNC/SMA-JJ
MOQ :
20 pcs
Delivery Time :
5-8 Days
VSWR :
≤ 1.25
Payment Terms :
T/T,D/P,Alipay
Gender :
Male to male
Working temperature :
-55℃~+125℃
Price :
$0.99 --$1.25 (Depending on the quantity )
Boday Material :
Brass
Insulator material :
PPS
Certification :
ISO9001
Place of Origin :
China
Packaging Details :
Carton packaging
Brand Name :
ZSX
Description

50 Ohm BNC male to SMA female DC-6GHz adapter BNC/SMA-JK

50-ohm straight BNC male to SMA female RF adapter supports DC to 6GHz frequency, constructed with brass nickel-plated housing and gold-plated inner pins for low insertion loss and stable signal transmission, widely suitable for signal testers, radios, CCTV equipment and wireless communication devices.

Product display
Product Performance Details
Product model BNC/SMA-JK Contact resistance SMA

Center contact:≤3mΩ

Outer contact:≤2mΩ
Characteristic impedance 50 ohm Body material SMA

Gold-plated brass
Frequency range DC-6GHz Body material BNC Nickel-plated brass
Voltage standing wave ratio

≤1.2

Central conductor

Gold-plated brass
Medium pressure resistance

≥1000V RMS ,50Hz, at sea level

 SMA screw sleeve

Gold-plated brass
Dielectric constant

≥5000MΩ

 Temperature range

-45℃~+125℃
Contact resistance BNC

Center contact:≤1.5mΩ

Outer contact:≤1mΩ

 Durability

≥500 Cycles

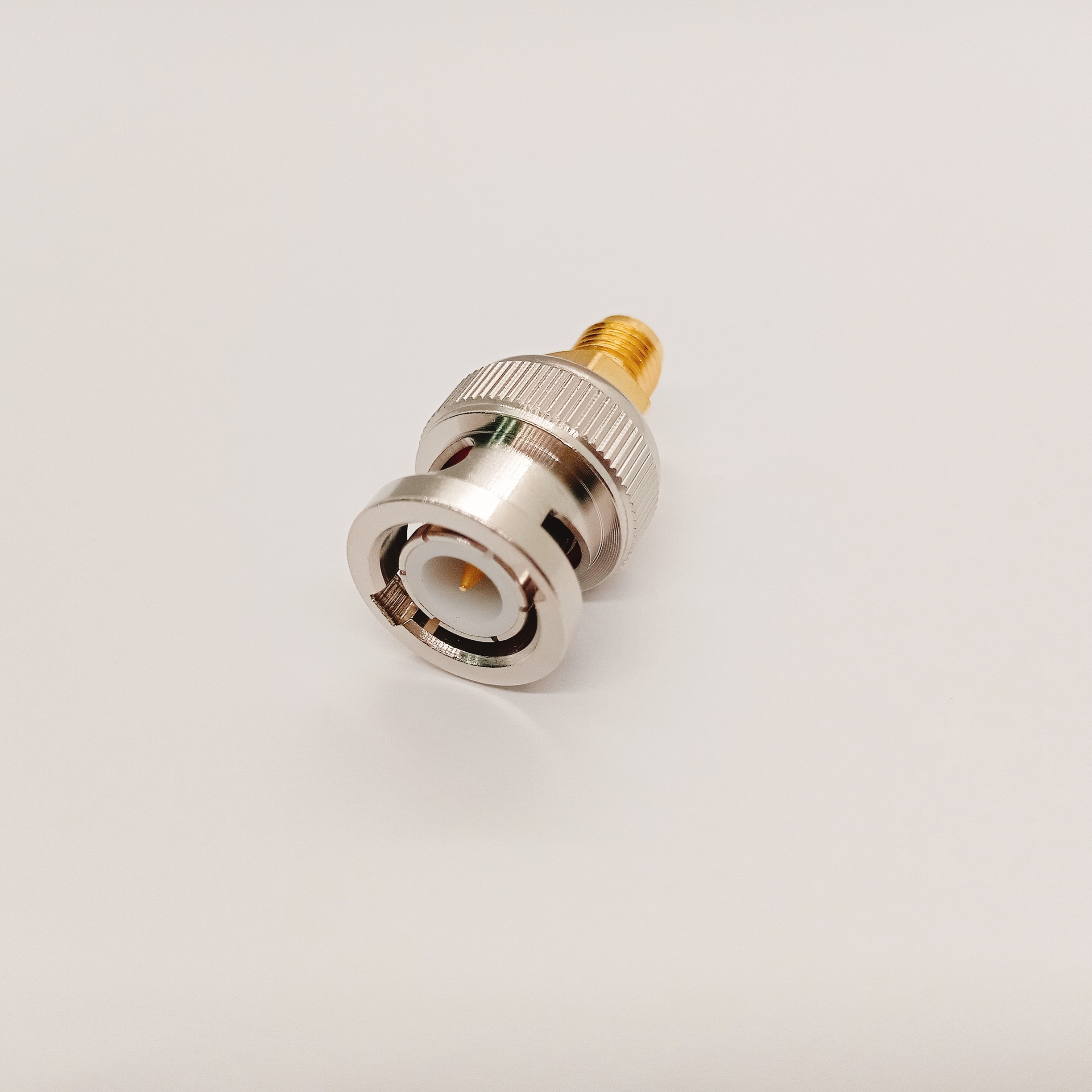

Physical product display
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission 50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission

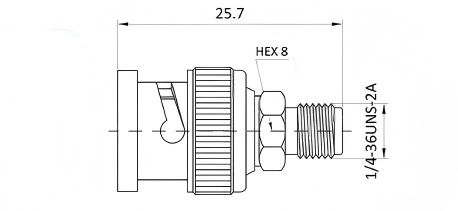

Product external dimensions

50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
Related product recommendations
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission 50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
Product selection reference
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission 50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
Dimension after mating
Display of Strength
Production Plant Area
Machining production workshop
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission 50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
Precision Assembly Production Workshop
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission 50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
Glass-to-metal sealed production workshop
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission 50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
Obtained Certification Certificate
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission 50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
Customer visit
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission 50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
Product packaging
50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission 50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
Packaging and Shipping
  • Standard export carton 50 Ohm BNC to SMA Adapter with DC-6GHz Frequency and Low VSWR ≤1.25 for Stable Signal Transmission
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
