99.9% 99.9995% Terbium Oxide Tb4o7 12037-01-3 For TGG/TSAG Crystals
99.9% 99.9995% Terbium Oxide Tb4o7 12037-01-3 For TGG/TSAG Crystals
Specifications
Supply Ability :
1000 kg
MOQ :
500g
Packaging Details :
0.5-1 kilogram per bottle, 50 kilograms per drum, 500 kilograms per pallet
Delivery Time :
45-60 Workdays
Payment Terms :
T/T
CAS # :
12037-01-3
Molecular Formula :
Tb4O7
EC No. :
234-856-3
Purity :
99.9-99.9995%
Molecular Weight :
747.69
Appearance :
Brown powder
Melting Point :
N/A
Boiling Point :
N/A
Density :
7.3 g/cm³
Exact Mass :
747.66579
Monoisotopic Mass :
747.66579
Description

Terbium Oxide (Tb₄O₇): Phosphor Activator, TGG/TSAG Crystals, Scintillation Ceramics, Metallic Tb

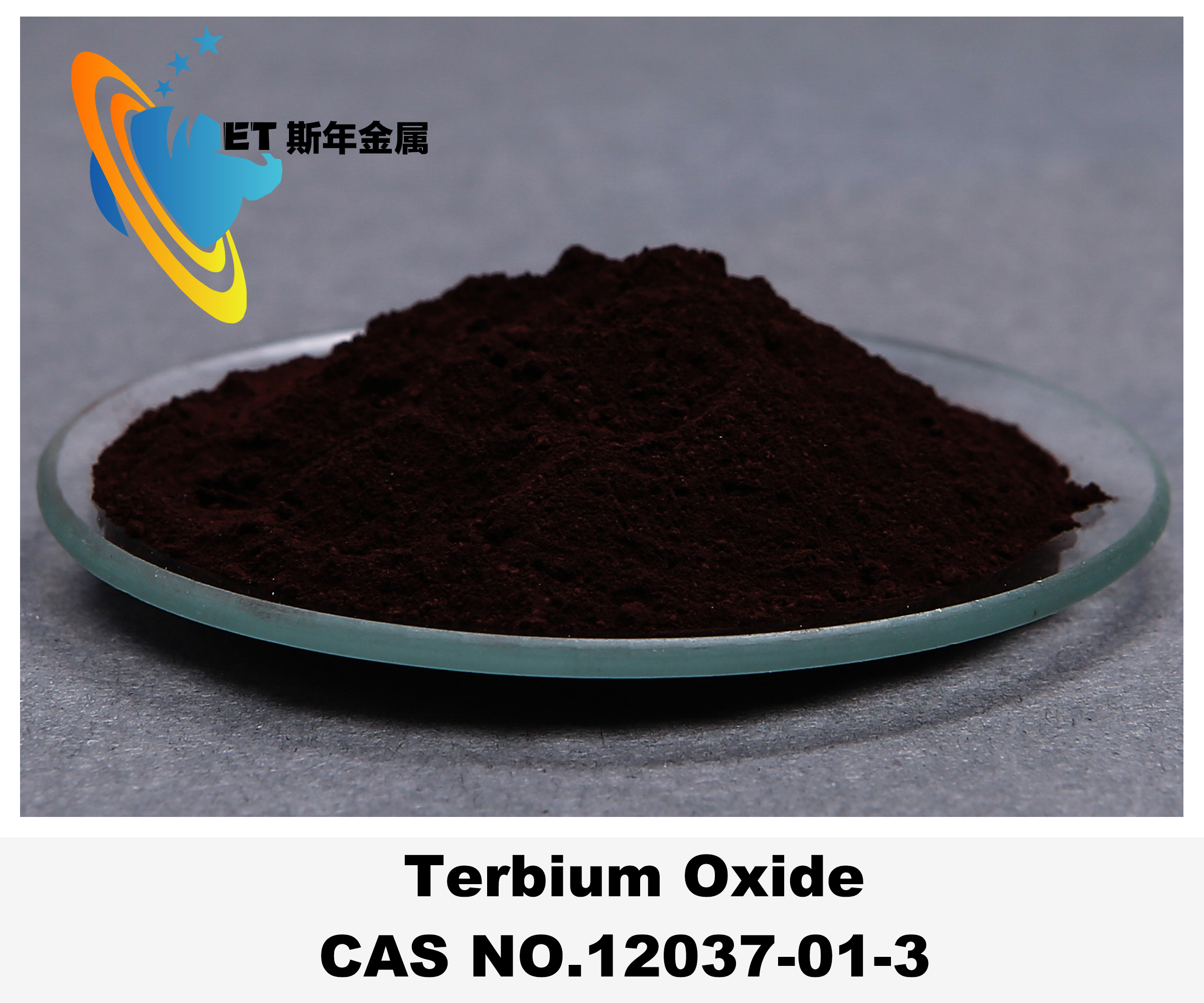

Terbium oxide is an inorganic compound with chemical formula Tb₄O₇, appearing as brown powder with density 7.3g/cm³, melting point 2500°C, boiling point 3760°C. Under 1800°C and 15MPa hydrogen reduction, converts to Tb₂O₃. Insoluble in water but soluble in acids to form trivalent salts. Volatilizes with steam, alkaline, toxic, and irritates eyes/respiratory tract/skin. Absorbs CO₂ and reacts with inorganic acids to form water-soluble salts.

Applications

  1. Long-afterglow phosphor activator
  2. TGG and TSAG crystal growth
  3. Special scintillation ceramic additive
  4. Terbium metal production

Product Series

Product

Product Code

Safety Data

Technical Data
Terbium Oxide 99.99% ET-Tb-02 Terbium Oxide.pdf Terbium Oxide Tb4O7 99.99.pdf
Terbium Oxide 99.999% ET-Tb-03 Terbium Oxide Tb4O7 99.999.pdf

Health and Safety Information

Signal Word N/A
Hazard Statements N/A
Hazard Codes N/A
Precautionary Statements N/A
Flash Point Not applicable
Risk Codes N/A
Safety Statements N/A
RTECS Number N/A
Transport Information NONH
WGK Germany 3

Packaging Specifications

  • Standard packaging: 50 kg/drum, 500 kg/pallet, ton bags
  • Sample packaging: 500 g/bag, 1 kg/bottle

Production Method
Mainly produced by oxalate precipitation: Dissolve terbium chloride/nitrate, adjust pH to 2 with oxalic acid, precipitate terbium oxalate by adding ammonia. After heating/aging, separate/wash, dry at 110°C, then calcine at 900-1000°C to obtain Tb₄O₇.
