HD EN817 Sanitary Tapware Air Tightness and Leak Tightness Test Machine
HD EN817 Sanitary Tapware Air Tightness and Leak Tightness Test Machine
HD EN817 Sanitary Tapware Air Tightness and Leak Tightness Test Machine
HD EN817 Sanitary Tapware Air Tightness and Leak Tightness Test Machine
HD EN817 Sanitary Tapware Air Tightness and Leak Tightness Test Machine
HD EN817 Sanitary Tapware Air Tightness and Leak Tightness Test Machine
HD EN817 Sanitary Tapware Air Tightness and Leak Tightness Test Machine
HD EN817 Sanitary Tapware Air Tightness and Leak Tightness Test Machine
Specifications
Type :
Testing Machine
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Application :
Tissue Paper Test
customized support :
OEM, ODM
power :
220V 50HZ
Protection Class :
/
Voltage :
220 V
warranty :
1 Year
Logo/graphic design :
/
Test station :
2 stations
Number of tests :
0-999999 times programmable
Frequency of tests :
5-15 times/min
Opening angle :
0-120° programmable
Opening pause time :
0.1-99s programmable
Push cover position :
Intermediate parts
Opening mode :
Cylinder
Control mode :
PLC
Operation mode :
Touch Screen
Air source :
0.4-0.6Mpa
MOQ :
1
Description
Product Description

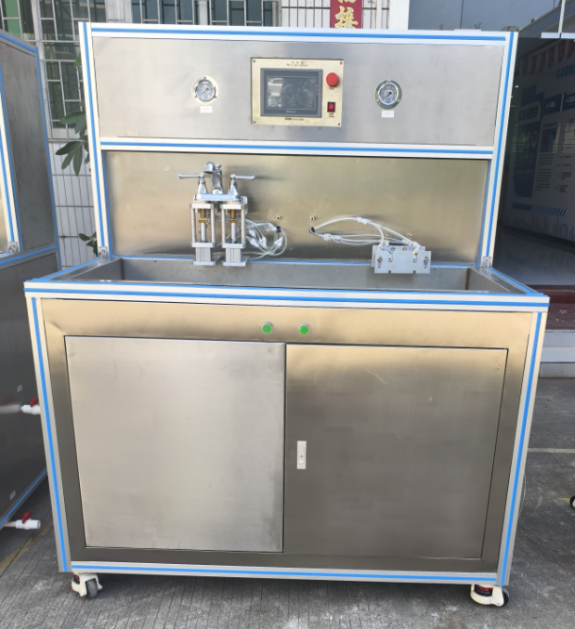

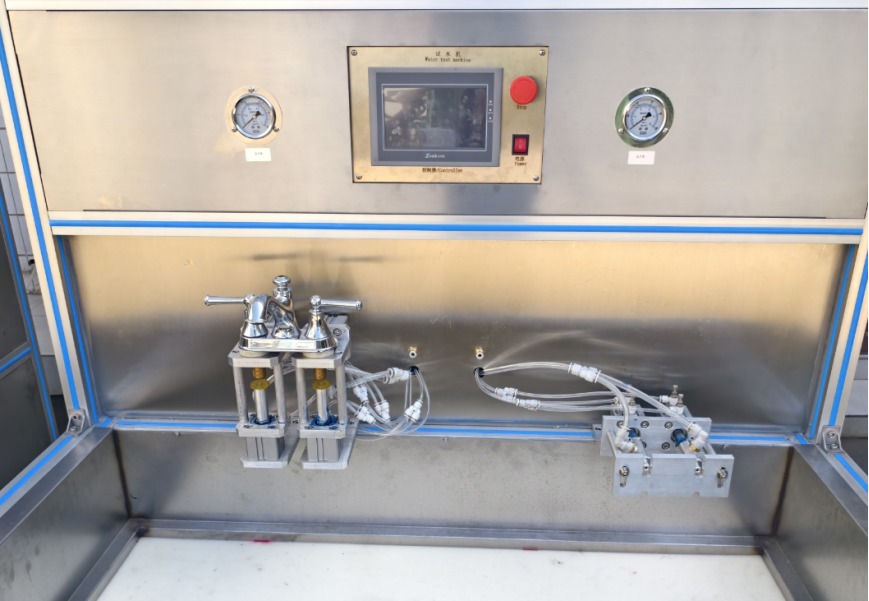

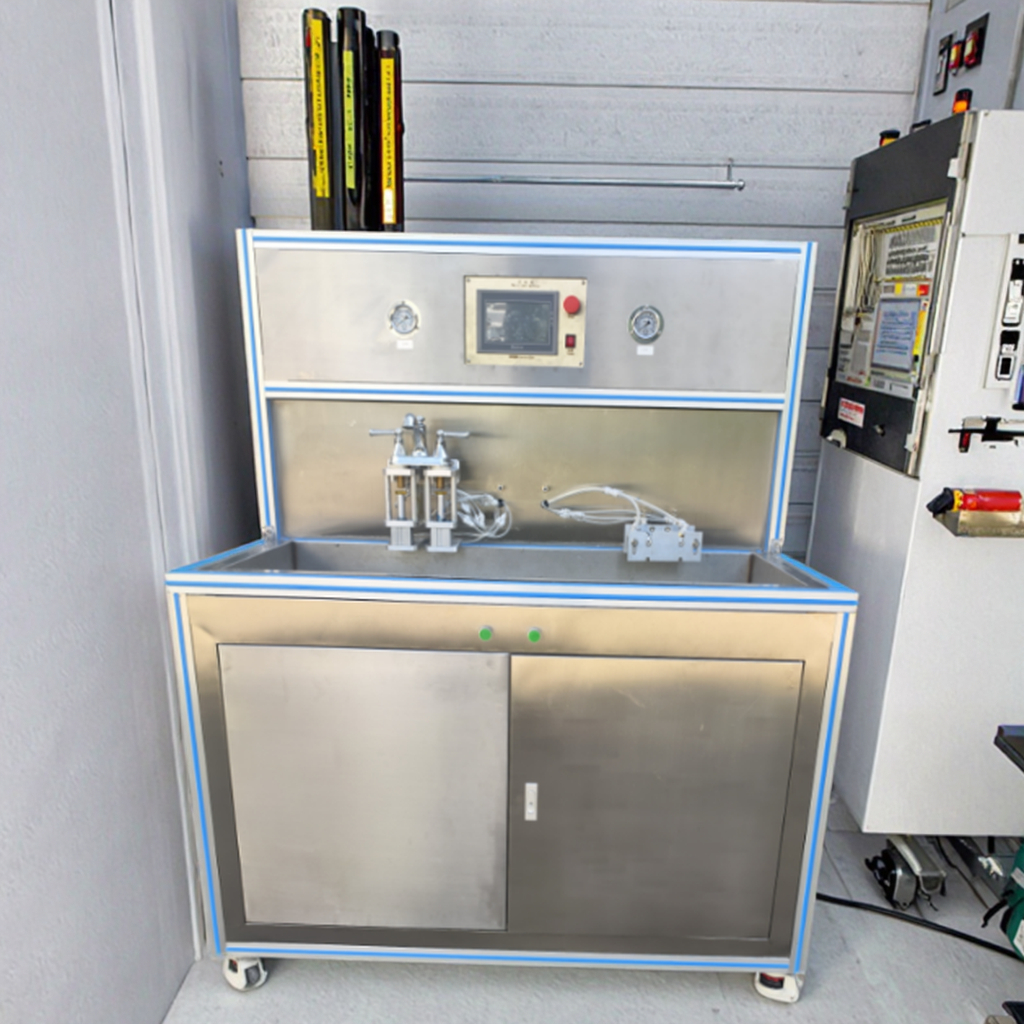

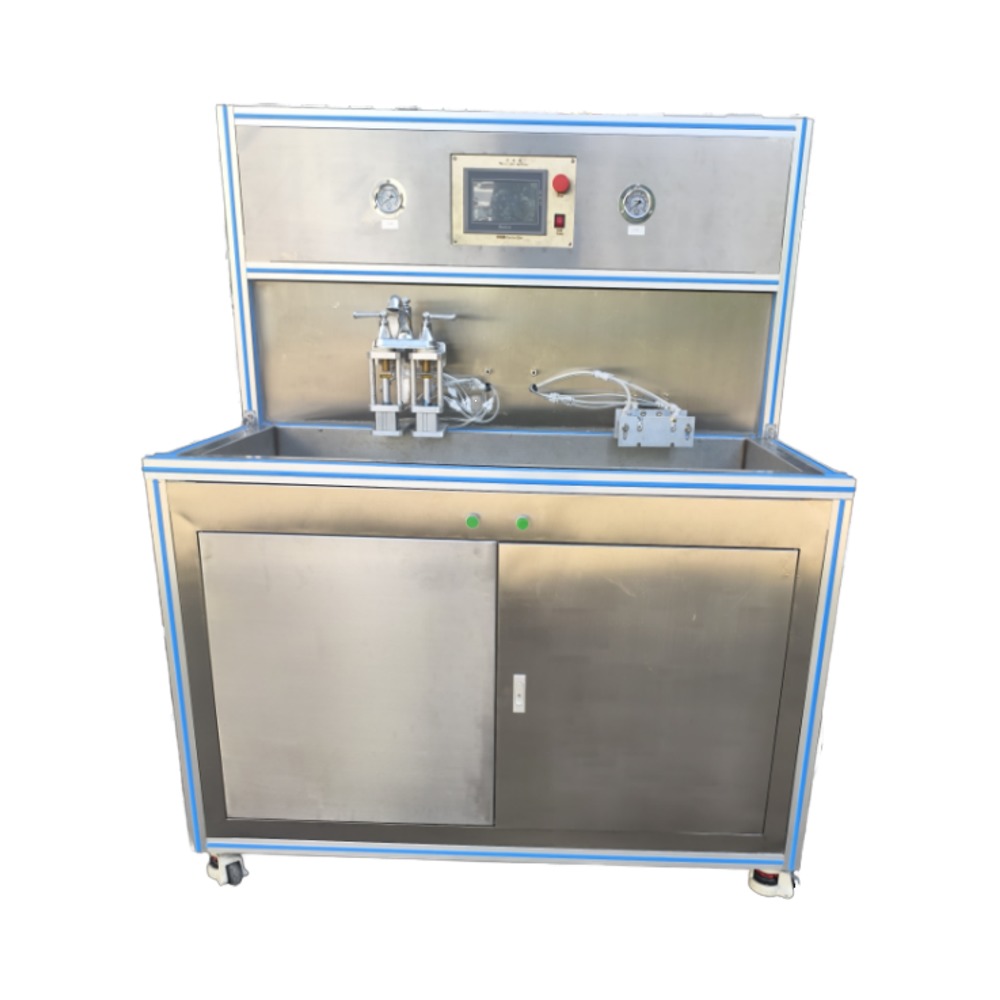

HD EN817 Sanitary Tapware Air Tightness and Leak Tightness Test Machine
5069-HD

EN817 Sanitary tapware Air Tightness and Leak Tightness Test Machine
This machine is mainly used for conducting a full inspection of the faucet, including water and gas tests.

TEST STANDARD: EN818 ; GB18145
Specification
Workstation
2 workstations
Water supply pressure
1.0mpa
Maximum flow rate
35L/min
The test working pressure
0-16 BAR pressure
Pump power
2KW
Voltage
380V,50HZ
Total power
3KW
Testing Function
Dual functions of water testing and gas testing can be switched between different programs
Test fixtures
Professionally customized water and gas test fixtures
Action modes
Static pressure, dynamic pressure
Test fixtures
Professionally customized water and gas test fixtures
Operation features
The input pressure on the machine operation display screen is controlled by MPA or BAR
The equipment adopts an automatic water replenishment function, and the water replenishment system is equipped with a water inlet
float ball.
Specification
INDA and EDANA Flushability Testing Guidelines
According to a Code of Practice directive within the Flushability Testing Guidelines, a product that passes all seven tests will be considered flushable. The standards set forth by INDA and EDANA include the following flushability tests:
* FG501.R1(18) Toilet Bowl & Drain Line Clearance Test
* FG502.R1(18) Slosh Box Disintegration Test
* FG503.R1(18) Household Pump Test
* FG504.R1(18) Settling Test
* FG505A.R1(18) Aerobic Biodisintegration Test
* FG506A.R1(18) Anaerobic Biodisintegration Test
* FG507.R1(18) Municipal Sewage Pump Test

Design Features
* Color touch screen display and control, Chinese and English interface, menu-based operation mode.
* Imported rotor flowmeter.
* The core control component adopts ST's 32-bit multi-function motherboard.
