ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester
ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester
ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester
ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester
ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester
ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester
ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester
ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester
ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester
ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester
Specifications
Brand Name :
HAIDA
Place of Origin :
Guangdong, China
Angl :
Adjustable ±90 degrees
Application :
Tissue Paper Test
Speed :
5-30 times per minute
Voltage :
220V Electrical Equipment
Logo/graphic design :
Hot Stamping, Screen Printing
Function of the water divider :
0-20mm can be set
Faucet left and right swing function :
2 sets of workstations
Protection Class :
/
warranty :
1 Year
Speed range :
0-20 times /min can be set
Type :
Testing Machine
customized support :
OEM, ODM
power :
380V 50HZ
MOQ :
1
Description
ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester
Product Overview
ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester
5070-HD

Toilet Seat Falling Ball Impact Test Machine

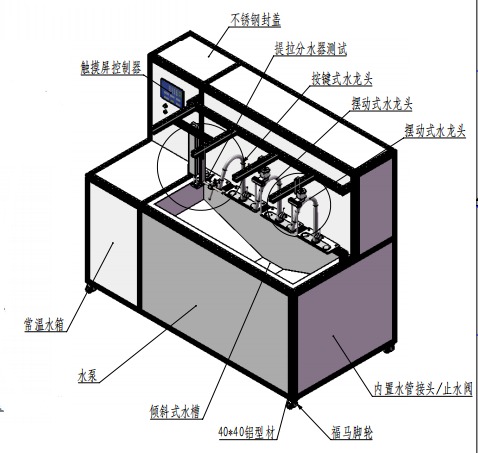

This machine tests the pull-out lifespan of the pull-out tube, the lifespan of the showerhead button, and the swing of the water outlet to evaluate the quality of the samples.

STANDARDS: ASME A112.18.1-2005; CSA B125.1-05; GB18145; EN817

Specifications
Test Samples 4 sets (1 set of pull-up water divider, 1 set of buttons, 2 sets of left and right swing)
Faucet Left/Right Swing Function 2 sets of workstations
Angle Adjustable ±90 degrees
Speed 5-30 times per minute
Standard Features
  • Test samples: 4 sets (1 set of pull-up water divider, 1 set of buttons, 2 sets of left and right swing)
  • Lifting function parameters: 0-20mm range, 0-20 times/min speed, complete cycle action
  • Button function: Normal water supply with 5-30 times per minute pressing speed
  • Left and right swing function: 2 workstations, adjustable ±90 degrees, 5-30 times/min speed
  • Frequency setting: 1 to 99,999,999 times
  • Control mode: PLC controlled
  • Operating mode: 7" color touch screen
  • Power Supply: 380V 50HZ
  • Air source: 6kg
  • Material: SUS304 stainless steel
  • Hot and cold water: American standard water supply, dynamic pressure 0.3-0.4Mpa
  • Comprehensive workstation functionality with adjustable parameters and torque sensors
Company Profile
ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester
Our Partners
ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester ASME Life Cycle Test Machine for Sanitary Taps and Shower Head Life Tester
Our Service & Support
  • 48-hour response time for technical issues with solutions within 3 working days
  • Operation videos and English operation manuals provided
  • Video conference support available
  • Onsite services including installation, operation testing, and technical training
  • Equipment calibration and daily maintenance support
  • Free technical training for factory visits
  • 24-hour online contact availability
  • Free software upgrades and comprehensive documentation
  • Social media, email, and video conferencing support channels
  • Onsite technical service when required
