220V 50HZ Toilet Seat Falling Ball Impact Test Machine
220V 50HZ Toilet Seat Falling Ball Impact Test Machine
220V 50HZ Toilet Seat Falling Ball Impact Test Machine
220V 50HZ Toilet Seat Falling Ball Impact Test Machine
220V 50HZ Toilet Seat Falling Ball Impact Test Machine
220V 50HZ Toilet Seat Falling Ball Impact Test Machine
220V 50HZ Toilet Seat Falling Ball Impact Test Machine
220V 50HZ Toilet Seat Falling Ball Impact Test Machine
Specifications
Application :
Tissue Paper Test
MOQ :
1
Place of Origin :
Guangdong, China
customized support :
OEM, ODM
Drop height accuracy :
1mm
Type :
Testing Machine
Impact ball specification :
225g 38mm
Drop bar shape :
Square rod
Drop height display :
Graduated steel ruler indicates vertically
Protection Class :
/
Logo/graphic design :
Hot Stamping, Screen Printing
power :
220V 50HZ
Voltage :
220V Electrical Equipment
Control box :
Protective mesh box around the bottom
Impact height range :
0-1000mm (manually adjustable, steel ruler shows scale)
warranty :
1 Year
Brand Name :
HAIDA
Volume Approx :
1000*1000*1050mm
Specimen size :
Toilet seat size
Description

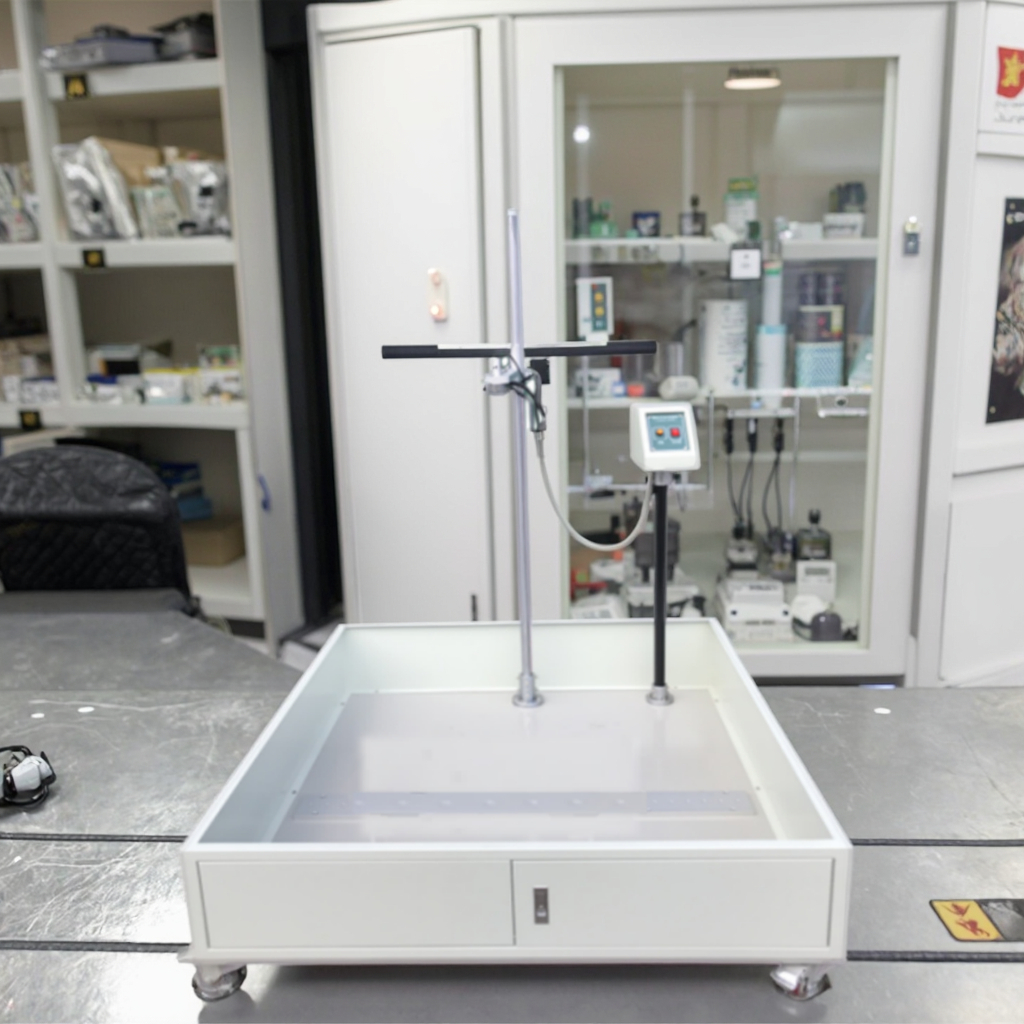

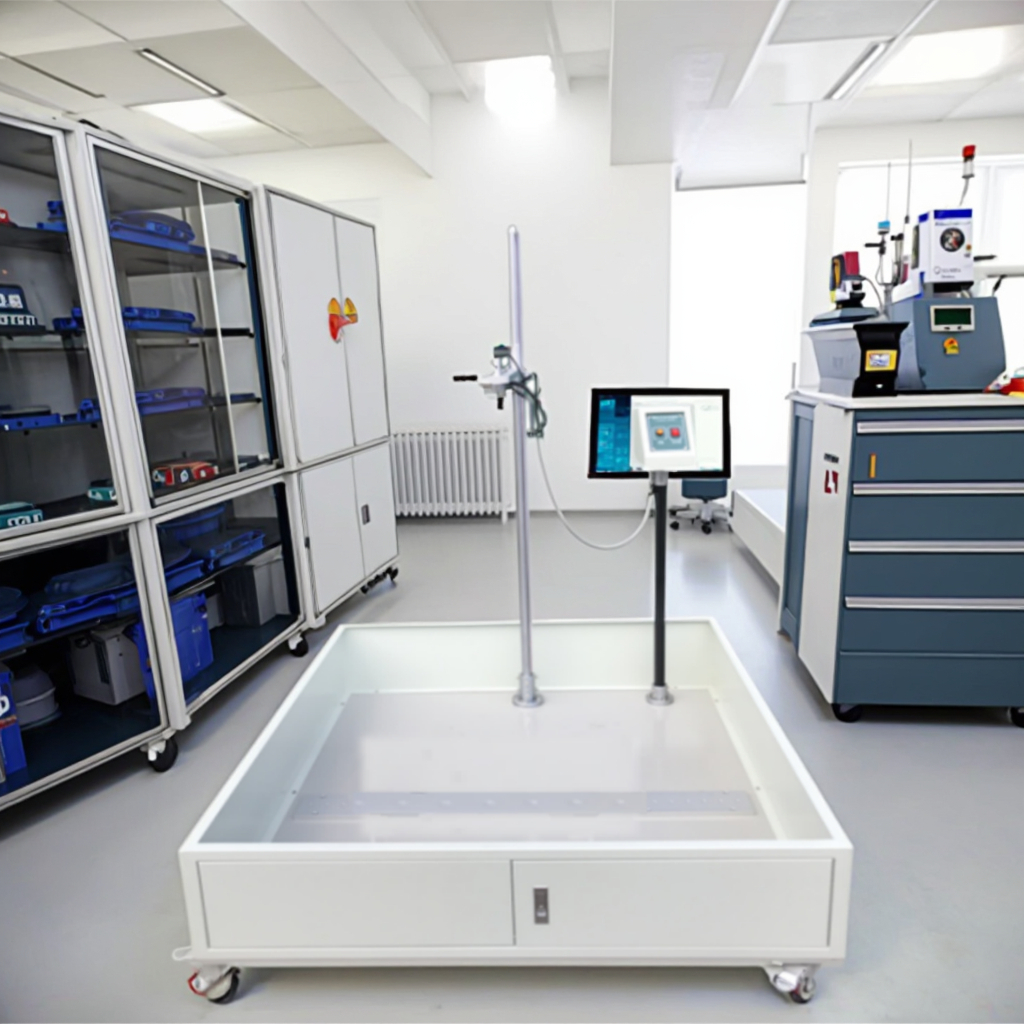

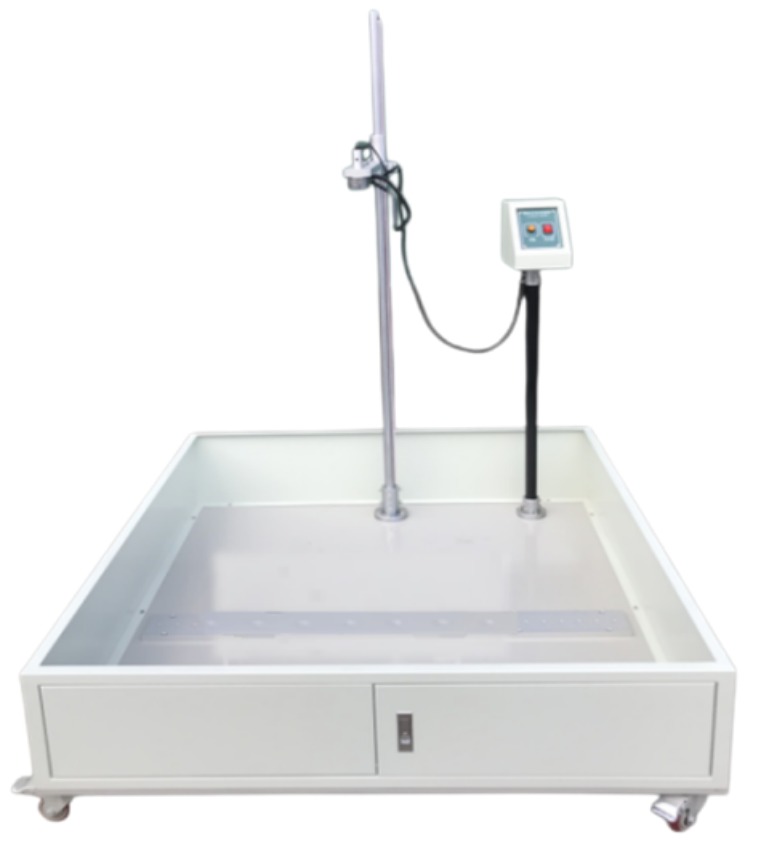

Toilet Seat Falling Ball Impact Test Machine
5062-HD
This machine is designed for testing electronics, electrical appliances, home appliances, plastics, communication devices, and other finished products or components during installation. It assesses product structure durability by dropping a specified weight steel ball from a certain height onto test materials and components, then observing the degree of damage.
220V 50HZ Toilet Seat Falling Ball Impact Test Machine 220V 50HZ Toilet Seat Falling Ball Impact Test Machine
Technical Standards
STANDARD: JC/T 764-2008 5.4.7
Test Procedure

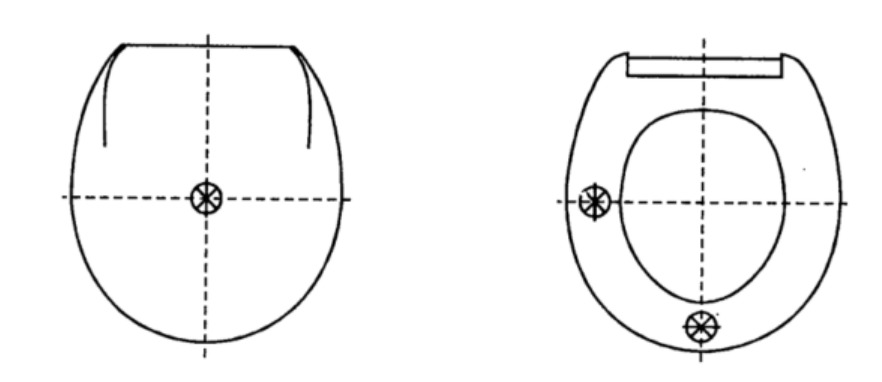

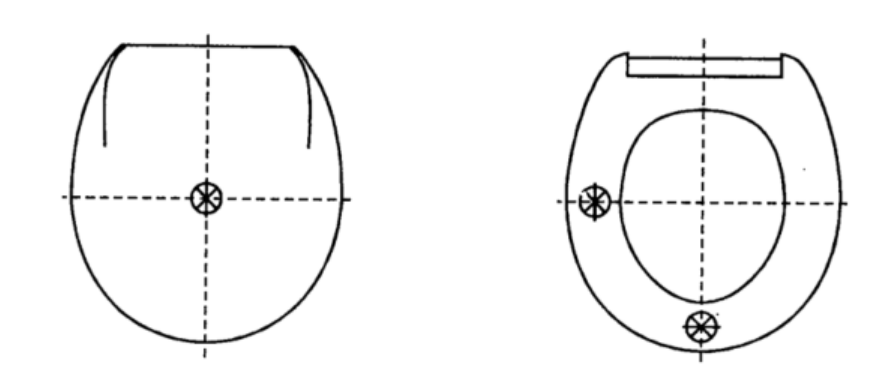

A steel ball with a diameter of 38 mm and a mass of 0.225 kg is dropped freely from a height of 455 mm to the center of the front of the center ring and the center of the middle of the ring. The impact positions are shown in the illustration.
Specifications
Parameter Specification
Impact height range 0-1000mm (manually adjustable, steel ruler shows scale)
Specimen size Toilet seat size
Drop height display Graduated steel ruler indicates vertically
Drop height accuracy 1mm
Drop bar shape Square rod
Control and lifting method Circuit-controlled electromagnet suction cup, manually lifting and lowering electromagnet fixing rod
Alignment device Infrared positioning, convenient for fixed-point testing
Impact ball specification 225g (φ38mm)
Control box Protective mesh box around the bottom
Volume Approx. 1000×1000×1050mm
Power Supply AC220V 50Hz
