Specifications
Weight :
Approx. 120 kg
Logo/graphic design :
Hot Stamping, Screen Printing
Number of Workstations :
Single workstation
Place of Origin :
Guangdong, China
Voltage :
220V Electrical Equipment
Vacuum Generation :
Vacuum pump
Application :
Tissue Paper Test
power :
220V 50HZ
Test Fixtures :
Customized per specification (≥2 pcs each)
Brand Name :
HAIDA
customized support :
OEM, ODM
Pressure Adjustment :
Manual control
Observation Tube ID :
13 mm
MOQ :
1
Test Pressure :
0 ~0.1 PA (adjustable), 0.5% full scale accuracy
Dimensions :
1000x1000x1600 mm
warranty :
1 Year
Immersion Depth :
13 mm
Protection Class :
/
Type :
Testing Machine
Timer Range :
0-99.99 (Hours, Minutes, seconds)
Description

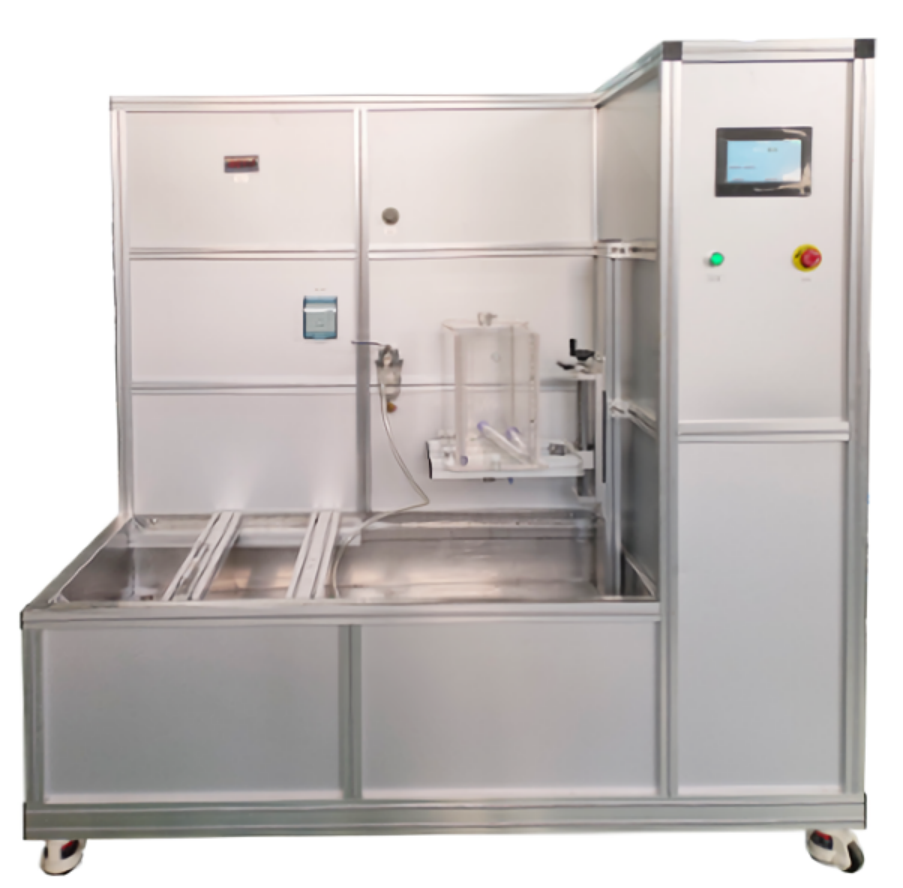

Anti-Siphon Performance Test Machine

This equipment is dedicated to testing the anti-siphon performance of water inlet valves. A transparent container is positioned between the sample and the equipment vacuum machine to collect water flow in case of siphon test failure, protecting the vacuum machine from damage. The system simulates vacuum conditions in water supply pipelines to detect whether siphon phenomena occur in water inlet valves.

Anti-Siphon Performance Test Machine For Industrial Anti-Siphon Performance Test Machine For Industrial
Technical Specifications
Model Number 5066-HD
Number of Workstations Single workstation
Test Pressure 0 ~ 0.1 PA (adjustable), 0.5% full scale accuracy
Pressure Adjustment Manual control
Observation Tube ID 13 mm
Immersion Depth 13 mm
Vacuum Generation Vacuum pump
Test Fixtures Customized per specification (≥2 pcs each)
Timer Range 0-99.99 (Hours, Minutes, seconds)
Dimensions 1000×1000×1600 mm
Power Supply AC220V 50HZ
Weight Approx. 120 kg
Compliance Standards

ASME A112.18.1-2018 CSA B125.1-18(C) 5.9
