Specifications
Outputsignal :
4-20 mA, 0-10 V, Digital
Price :
10-100USD
MOQ :
1
Application :
Industrial, HVAC, Automotive
Powersupply :
24 V DC
Operatingtemperature :
-20°C to 85°C
Accuracy :
±0.1% FS
Measurementtype :
Gauge, Absolute, Differential
Productname :
Pressure Measurement Instruments
Displaytype :
Digital LCD
Certification :
CO
Supply Ability :
99PCS 4-6 WEEKS
Pressurerange :
0 to 10000 psi
Material :
Stainless Steel
Model Number :
T5400
Brand Name :
Ashcroft
Responsetime :
≤ 1 ms
Delivery Time :
5-7 WORK DAYS
Protectionrating :
IP65
Mountingoptions :
Panel, Wall, Pipe
Payment Terms :
T/T
Place of Origin :
USA
Calibration :
Factory calibrated
Connectiontype :
Threaded, Flanged
Description

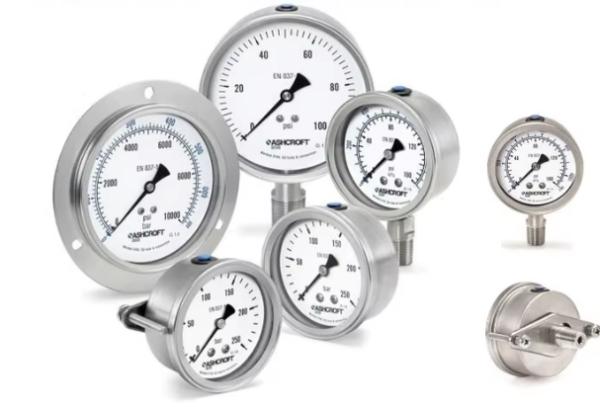

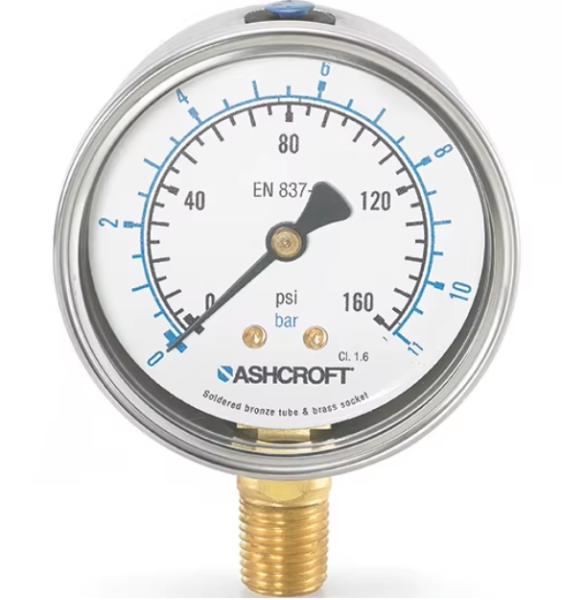

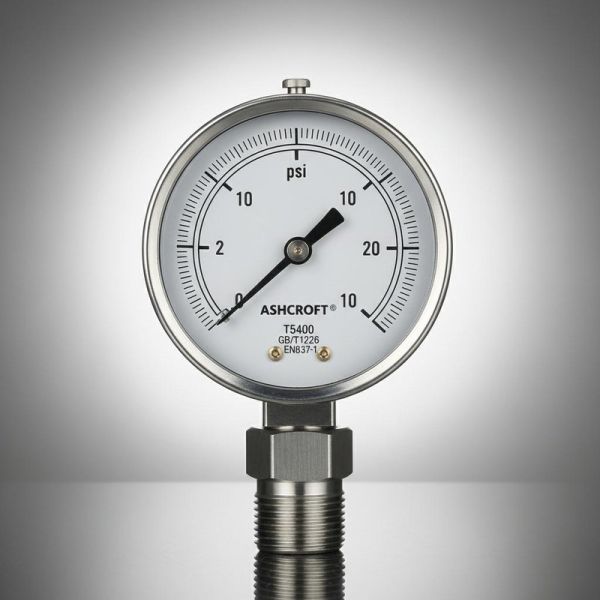

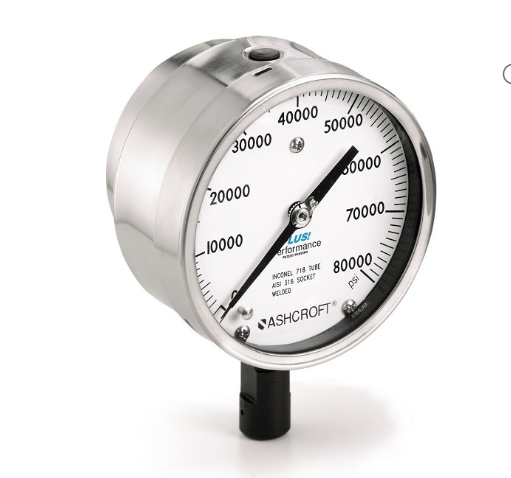

Ashcroft T5400 All Stainless Steel Process Gauge
The T5400 all stainless steel pressure gauge complies with GB/T1226 and EN837-1 standards and is suitable for monitoring and controlling processes and equipment. T5400 offers a dial with excellent visibility and robust construction for industrial applications.
Performance Specifications
Accuracy Class 1.6
Standards EN837-1, GB/T1226
Pressure Range Vacuum, compound, 0 to 400 bar (psi, KPa, MPa, kg/cm² and other units available)
Bourdon Tube 316L
Process Connection
Connection Types 1/4NPT male, 1/2NPT male, G1/2B male, G1/4B male, M20*1.5 male
Connection Location Lower or Back
Mounting Options Pipe mount, Panel mount, Surface mount
Materials Specification
Wetted Materials Case: 304SS, 316L optional
Ring: 304SS, 316L optional
Window: Instrument glass, safety glass optional
Dial: Aluminum, black figures on white background
Pointer: Aluminum, black, micrometer pointer optional
Non-Wetted Materials Case: 304SS, 316L optional
Physical & Environmental Specifications
Ingress Protection IP66
Ambient Temperature -40 … 70 °C
Medium Temperature max 200°C, dry; max 100°C, liquid filled
Storage Temperature -40 … 70 °C
Thermal Effect max 0.4% / 10K
Dial Size 100mm
Filling Liquid Silicone, glycerin
Weight Dry - 0.9kg, liquid - 1.2kg
All specifications are subject to change without notice.
All sales subject to standard terms and conditions.
©2022 Ashcroft en. T54, Rev. A, 09/22
