WINTERS PCT CONTRACTOR PRESSURE GAUGE/ PCT-LF LEAD FREE CONTRACTOR GAUGE
WINTERS PCT CONTRACTOR PRESSURE GAUGE/ PCT-LF LEAD FREE CONTRACTOR GAUGE
WINTERS PCT CONTRACTOR PRESSURE GAUGE/ PCT-LF LEAD FREE CONTRACTOR GAUGE
WINTERS PCT CONTRACTOR PRESSURE GAUGE/ PCT-LF LEAD FREE CONTRACTOR GAUGE
Specifications
Brand Name :
WINTERS
Model Number :
PCT-LF
MOQ :
1
Price :
400USD
Payment Terms :
T/T
Supply Ability :
1PC 6-8WEEK
Delivery Time :
6-8WEEK
Description

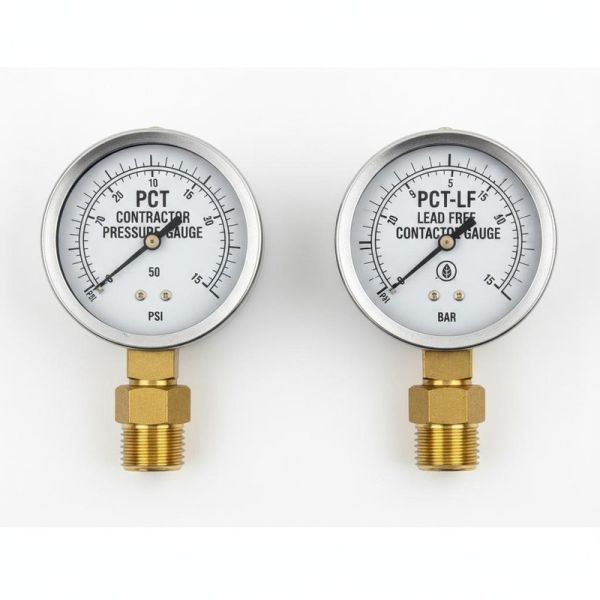

PCT Contractor Pressure Gauge / PCT-LF Lead Free Contractor Gauge
High-performance industrial dual-scale pressure gauge designed for commercial HVAC, plumbing, and industrial applications with exceptional accuracy and durability.
Product Specifications
Parameter Value
Model WINTERS PCT Series (Contractor Pressure Gauge)
Type Industrial Dual Scale Pressure Gauge (Dry, Non‑Fillable)
Dial Size 4.5" (115 mm)
Accuracy (25°C) ±1.0% Full Scale (FS), ASME B40.100 Grade 1A
Case Material 304 Stainless Steel (Silver Finish)
Bezel 304 Stainless Steel, Crimped (Non‑Removable)
Wetted Parts Brass Alloy (Standard)
Process Connection 1/4" NPT Male (Bottom Mount, Standard)
Enclosure Rating NEMA 4 / IP65
Compliance ASME B40.100, CRN Registered, RoHS Compliant
Pressure Ranges
  • Vacuum: 30"Hg Vacuum / -1 bar
  • Compound: -30 to 300 psi / -1 to 20 bar
  • Gauge: 0‑15 psi to 0‑350 bar (0‑1 bar to 0‑350 bar)
Operating Conditions
  • Over‑Pressure Limit: 130% of Full Scale
  • Working Pressure: Max 75% of Full Scale
  • Ambient Temperature: -40°F to 200°F (-40°C to 93°C)
  • Process Temperature: -40°F to 200°F (-40°C to 93°C)
  • Storage Temperature: -40°F to 200°F (-40°C to 93°C)
Key Features
  • External recalibration screw for easy adjustment
  • Economical stainless steel case construction
  • Dual scale display (psi/kPa) for versatile applications
  • Brass movement with overload stops for protection
  • Polycarbonate lens for durability and clarity
  • White aluminum dial with black markings
  • Black anodized aluminum pointer
Applications: Commercial HVAC, Plumbing, Water Systems, Steam Applications, Air Service
Warranty: 5 Years Comprehensive Coverage
