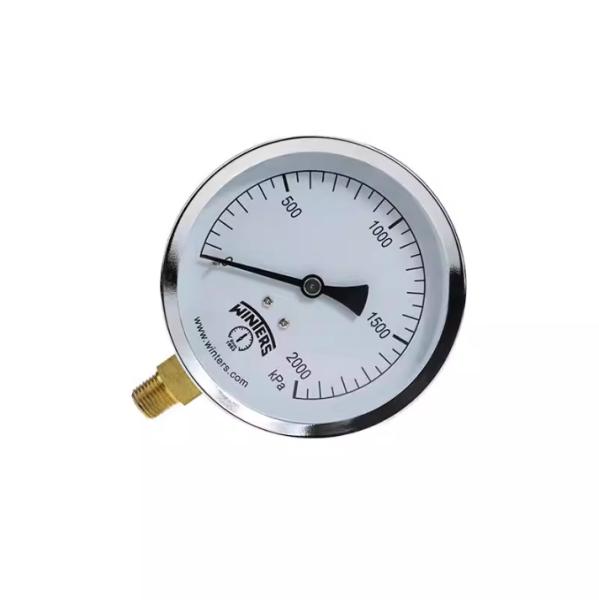

WINTERS PFQ-25 63mm Semi-Steel Brass Pressure Gauge
WINTERS PFQ-25 63mm Semi-Steel Brass Pressure Gauge
WINTERS PFQ-25 63mm Semi-Steel Brass Pressure Gauge
WINTERS PFQ-25 63mm Semi-Steel Brass Pressure Gauge
Specifications
Brand Name :
WINTERS PFQ-25
Model Number :
PFQ-25 63mm
MOQ :
1
Price :
50USD
Payment Terms :
T/T
Supply Ability :
1pc 1-2week
Delivery Time :
1-2week
Description
WINTERS PFQ-25 63mm Semi-Steel Brass Pressure Gauge
WINTERS PFQ-25 All Stainless Steel Pressure Gauge. Professional 63mm radial pressure gauge with all-stainless steel construction, designed for demanding industrial applications with pressure ranges from vacuum to 15000 psi.
Key Specifications
Parameter Value Unit Details
Model Number PFQ-25 - WINTERS standard industrial pressure gauge model
Gauge Type Liquid-Filled Pressure Gauge - Glycerin filled (standard); dry case optional
Dial Size 2.5 inch (63 mm) 2.5-inch dial diameter
Accuracy Class ±1.5 % Full Scale (FS)
Pressure Range Vacuum~15000 psi Full pressure measurement range
Case Material AISI 304 Stainless Steel - Corrosion-resistant case
Connection Type 1/4 NPT Standard connection size for 2.5-inch dial
Protection Grade IP65 - Dustproof and waterproof grade
Warranty Period 5 years Manufacturer's warranty
Construction & Materials
Wetted Parts Material
Brass/316 Stainless Steel (optional)
Case Material
AISI 304 Stainless Steel
Lens Material
Polycarbonate
Bezel Material
AISI 304 Stainless Steel (Crimp-On type)
Performance Features
  • Vibration Resistance: Liquid filling reduces pulsation and vibration impact
  • Overpressure Protection: 130% FS (316 SS); 100% FS (Brass) maximum capacity
  • Temperature Range: Operating: -20~70℃; Medium: -40~100℃ (liquid-filled version)
  • Scale Options: Single (psi) or dual (psi/kPa/bar) scale available
  • Mounting Flexibility: Back/Bottom/Panel mounting options
Compliance & Standards
Certification
ASME B40.100, CRN
RoHS Compliance
Yes (for SS internals only)
Weight
Approx. 0.75 lb
Filling Liquid
Glycerin (standard); propylene glycol optional
